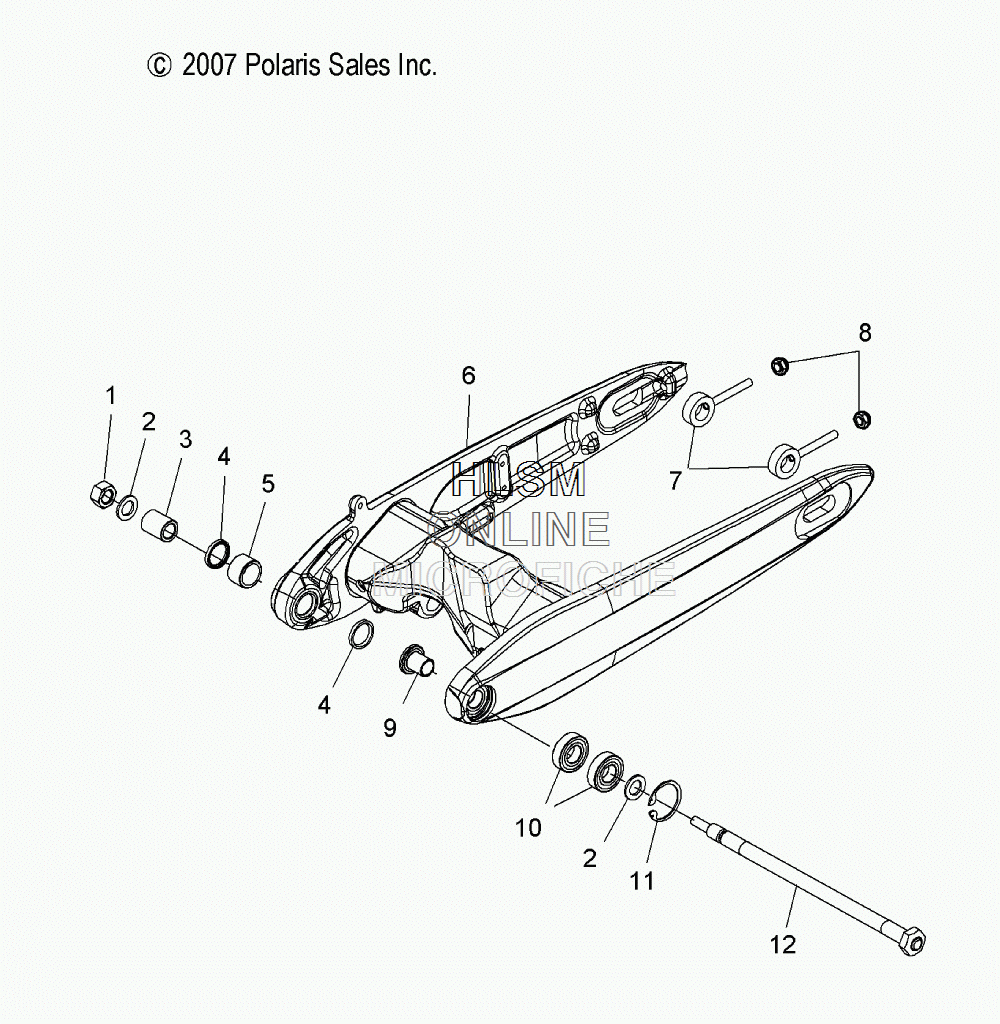

SWING ARM для Polaris KINGPIN - 2012 года выпуска
-
№АртикулНазвание
-
17540001 NUTNUT
-
27556236 WASHER, FLATWASHER, FLAT
-
35137441 BUSHINGBUSHING
-
43610096 SEALSEAL
-
53514413 BEARINGBEARING
-
61016176-521 ASM., SWING ARM W/BEARINGS, BLACK (INCL. 4,5,10,11)ASM., SWING ARM W/BEARINGS, BLACK (INCL. 4,5,10,11)
-
71014895 ADJUSTER, AXLEADJUSTER, AXLE
-
87547144 NUT, NYLOKNUT, NYLOK
-
95631478 BUSHINGBUSHING
-
103514414 BEARING, BALLBEARING, BALL
-
117670149 RING, RETAININGRING, RETAINING
-
121017830 SHAFT, SWING ARM PIVOTSHAFT, SWING ARM PIVOT
