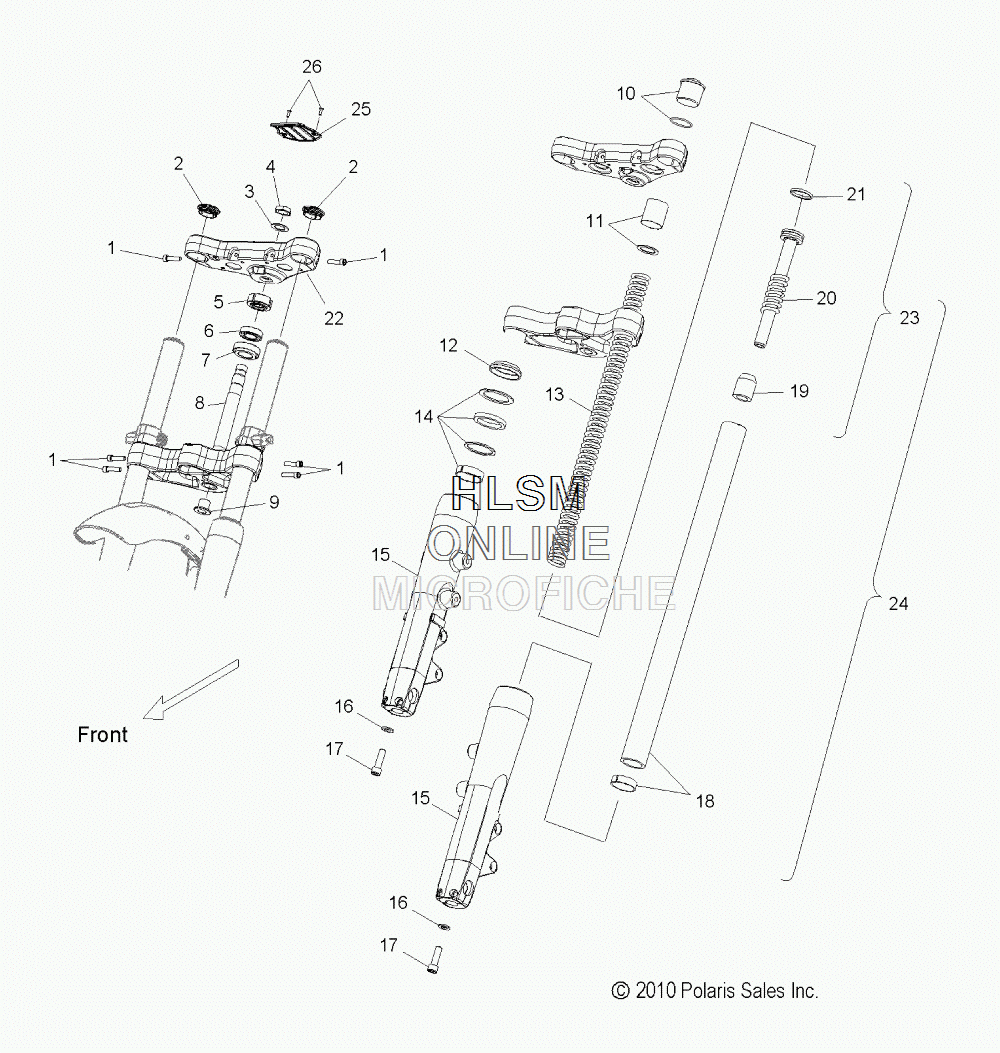

FRONT FORKS для Polaris JACKPOT [V14XB36] - 2014 года выпуска
-
№АртикулНазвание
-
17517361 SCREWSCREW
-
25132481-156 CAPCAP
-
37556246 WASHERWASHER
-
45134148 NUT, TOP, TRIPLE CLAMPNUT, TOP, TRIPLE CLAMP
-
55631935 NUT, STEERING HEADNUT, STEERING HEAD
-
63514549 BEARING, BALLBEARING, BALL
-
73514416 BEARINGBEARING
-
81823532-463 ASM., BRACKET, LOWER, FLAT BLACK (INCL. 1)ASM., BRACKET, LOWER, FLAT BLACK (INCL. 1)
-
95412473 CAP, STEERING STEMCAP, STEERING STEM
-
102202507 KIT, CAP W/O-RINGKIT, CAP W/O-RING
-
105412452 O-RINGO-RING
-
112202499 KIT, SPACER, PRELOADKIT, SPACER, PRELOAD
-
137042270 SPRING, COMPRESSIONSPRING, COMPRESSION
-
142202505 KIT, SEALS BUSHING (INCL. 12)KIT, SEALS BUSHING (INCL. 12)
-
152202503 KIT, SLIDER LEG, RIGHT HAND (INCL. 14)KIT, SLIDER LEG, RIGHT HAND (INCL. 14)
-
152202502 KIT, SLIDER LEG, LEFT HAND (INCL. 14)KIT, SLIDER LEG, LEFT HAND (INCL. 14)
-
167556390 WASHERWASHER
-
177519082 SCREWSCREW
-
182202504 KIT, ASM., TUBE (INCL. 16,17,19)KIT, ASM., TUBE (INCL. 16,17,19)
-
215435151 RING, DAMPERRING, DAMPER
-
225135825-463 BRACKET, UPPER, FLAT BLACK (INCL. 1)BRACKET, UPPER, FLAT BLACK (INCL. 1)
-
232202506 KIT, DAMPER ROD/SEGMENT (INCL. 20,21)KIT, DAMPER ROD/SEGMENT (INCL. 20,21)
-
241821285-067 ASM., FORK LEG, LEFT HAND, BLACK (INCL. 10-21)ASM., FORK LEG, LEFT HAND, BLACK (INCL. 10-21)
-
241821286-067 ASM., FORK LEG, RIGHT HAND, BLACK (INCL. 10-21)ASM., FORK LEG, RIGHT HAND, BLACK (INCL. 10-21)
-
255438513-156 COVER, TRIPLE CLAMP, CHROMECOVER, TRIPLE CLAMP, CHROME
-
267518144 SCREWSCREW
