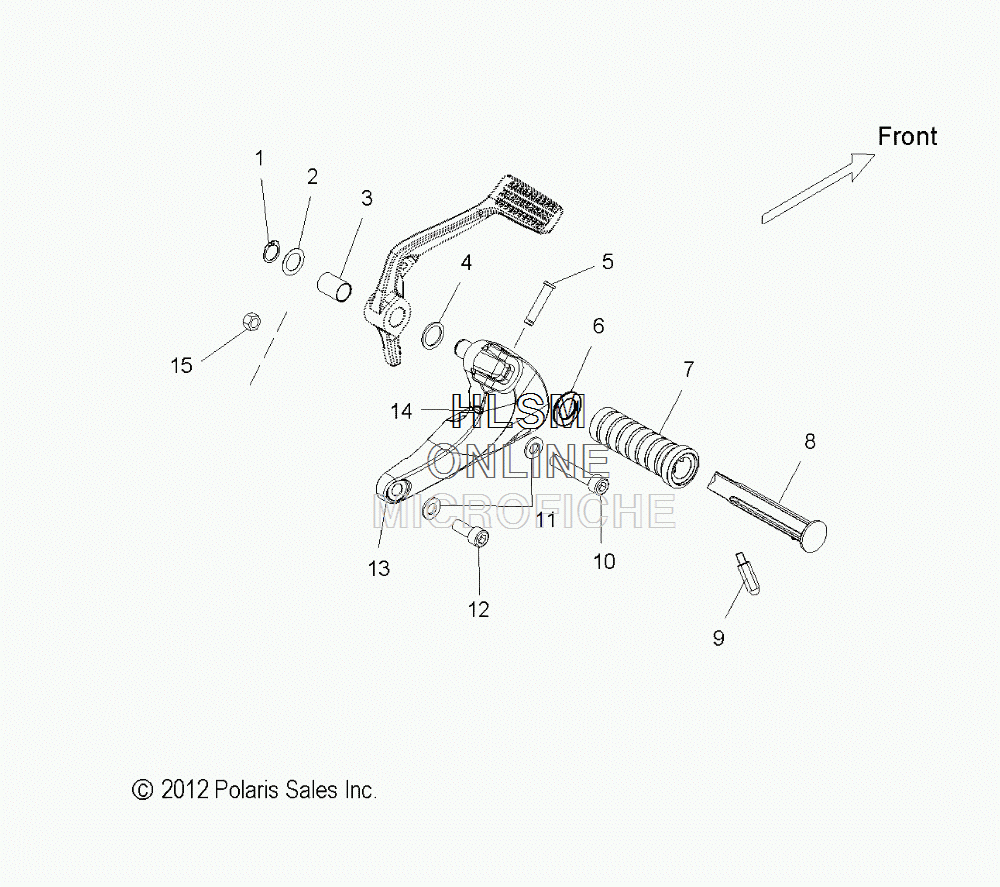

FOOTPEG - RIGHT HAND для Polaris VEGAS 8-BALL [V14GA36NA] - 2014 года выпуска
-
№АртикулНазвание
-
17710499 RING, RETAINING, EXTERNALRING, RETAINING, EXTERNAL
-
27556075 WASHER, FLATWASHER, FLAT
-
33514490 BUSHING, SHIFT PEDALBUSHING, SHIFT PEDAL
-
47556273 WASHER, WAVEWASHER, WAVE
-
57661980 PIN, PIVOTPIN, PIVOT
-
67556274 WASHER, PIVOTWASHER, PIVOT
-
75412256 PAD, FOOTPEGPAD, FOOTPEG
-
85136036-411 FOOTPEG, RIGHT HANDFOOTPEG, RIGHT HAND
-
95137442 FEELER, FOOTPEGFEELER, FOOTPEG
-
107518146 SCREWSCREW
-
117556234 WASHER, FLATWASHER, FLAT
-
127518101 SCREWSCREW
-
135136081-266 SUPPORT, FOOTPEG, RIGHT HAND, BLACKSUPPORT, FOOTPEG, RIGHT HAND, BLACK
-
147710644 RING, RETAININGRING, RETAINING
-
157547039 NUTNUT
