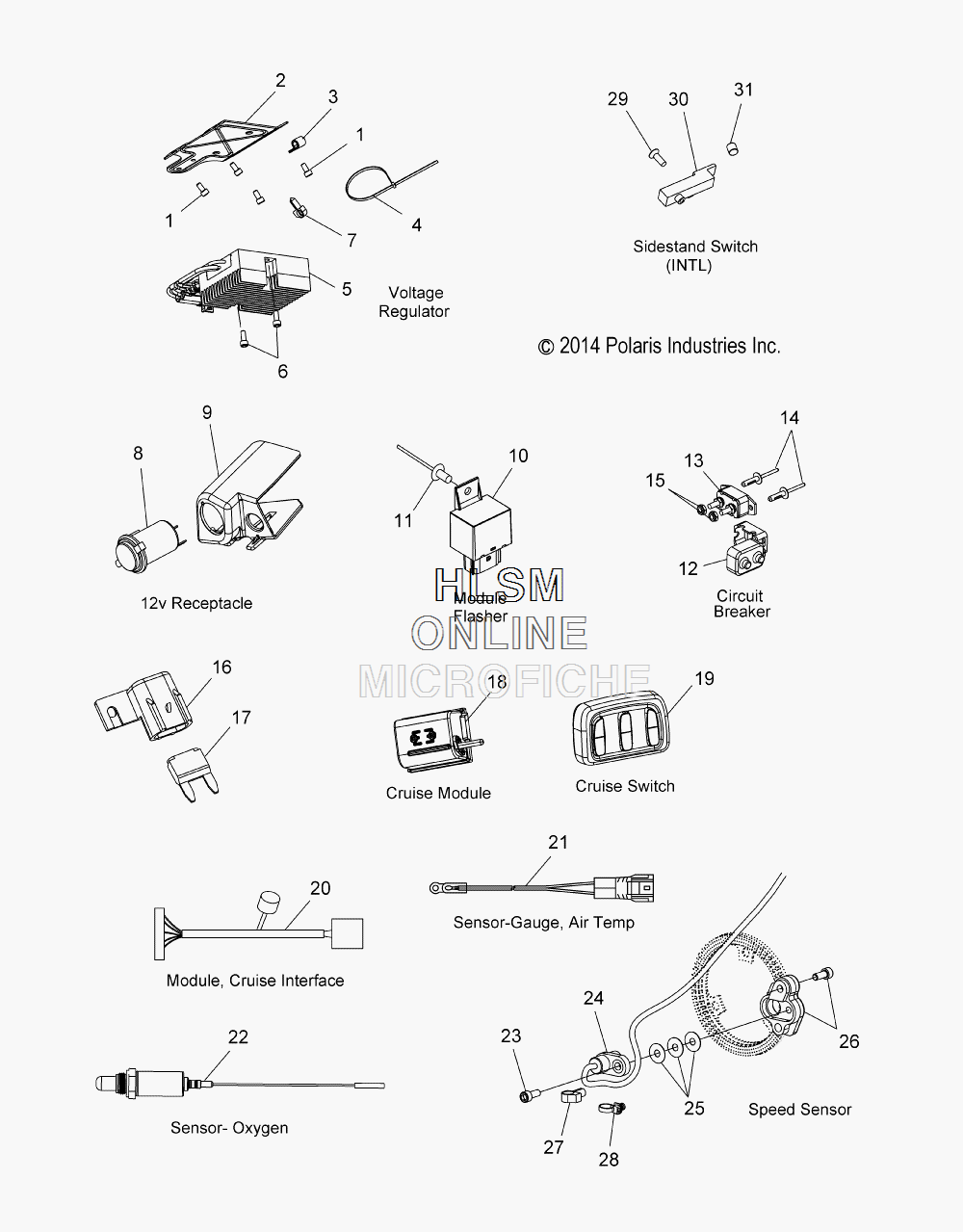

SWITCHES- SENSORS AND COMPONENTS 2 для Polaris MAGNUM ALL OPTIONS [ZW36] - 2015 года выпуска
-
№АртикулНазвание
-
17517739 SCREWSCREW
-
25248079-408 BRACKET, CONNECTOR, (ZINC/BLACK)BRACKET, CONNECTOR, (ZINC/BLACK)
-
37080983 CLAMPCLAMP
-
47080138 CABLE TIECABLE TIE
-
54012717 REGULATOR, VOLTAGE, (BLACK)REGULATOR, VOLTAGE, (BLACK)
-
67517272 SCREWSCREW
-
77670102 CLIPCLIP
-
84012393 RECEPTACLE, POD MOUNT, 12VRECEPTACLE, POD MOUNT, 12V
-
95439002 HOUSING, SOCKETHOUSING, SOCKET
-
104013199 MODULE, FLASHER, LEDMODULE, FLASHER, LED
-
117081617 RIVETRIVET
-
124010778 BOOTBOOT
-
132410332 BREAKER, CIRCUIT, 40ABREAKER, CIRCUIT, 40A
-
147081040 RIVETRIVET
-
157541931 NUTNUT
-
164012260 COVER, FUSE HOLDERCOVER, FUSE HOLDER
-
172434015 FUSE, PARK, 30 AMPFUSE, PARK, 30 AMP
-
184012752 MODULE, CRUISEMODULE, CRUISE
-
194013049 SWITCH, CRUISE, HIGH CURRENT, (BLACK)SWITCH, CRUISE, HIGH CURRENT, (BLACK)
-
204013839 MODULE, INTERFACE, FERITEMODULE, INTERFACE, FERITE
-
212410443 SENSOR, GAUGE, AIR TEMPSENSOR, GAUGE, AIR TEMP
-
224010430 SENSOR, OXYGENSENSOR, OXYGEN
-
237517272 SCREWSCREW
-
244013251 SENSOR, WHEEL SPEED, ABSSENSOR, WHEEL SPEED, ABS
-
255255106 SHIM, SENSOR, ABSSHIM, SENSOR, ABS
-
265632575 MOUNT, SPEED SENSOR, ABS (FRONT)MOUNT, SPEED SENSOR, ABS (FRONT)
-
267517272 SCREW (FRONT)SCREW (FRONT)
-
277670102 CLIP, SILENCER (FRONT)CLIP, SILENCER (FRONT)
-
287081334 STRAP, TREE MOUNT, CABLE TIE (REAR)STRAP, TREE MOUNT, CABLE TIE (REAR)
-
297519276 SCREW (INTL.)SCREW (INTL.)
-
304013130 SWITCH, SIDE STAND (INTL.)SWITCH, SIDE STAND (INTL.)
-
314013131 MAGNET, SIDE STAND (INTL.)MAGNET, SIDE STAND (INTL.)
