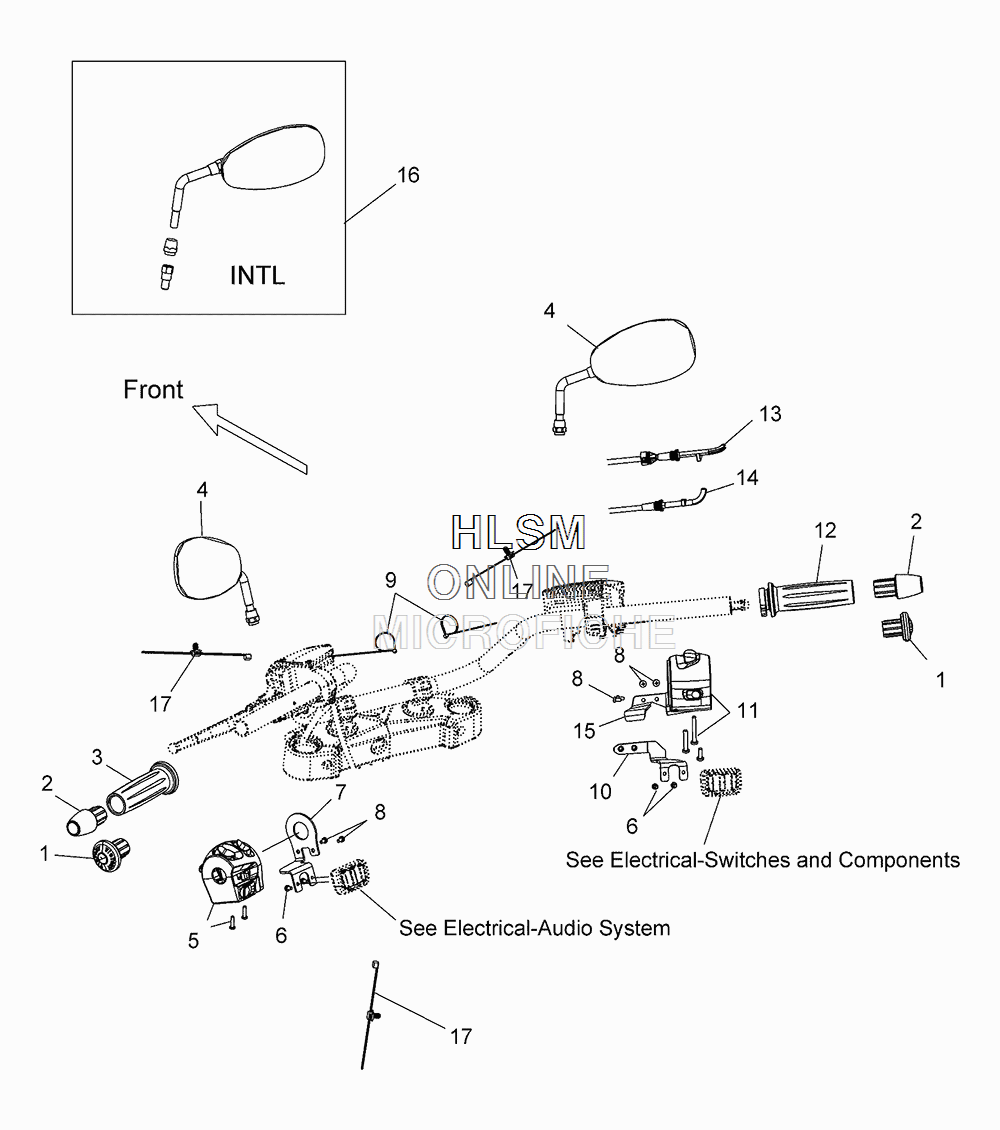

HANDLEBAR ASSEMBLY W/ CONTROLS для Polaris CROSS COUNTRY TOURING [V16TW36NA] - 2016 года выпуска
-
№АртикулНазвание
-
15439001 CAP, HANDLEBAR, SHORTCAP, HANDLEBAR, SHORT
-
25437103 CAP, HANDLEBARCAP, HANDLEBAR
-
35413493 GRIP, HANDLEBAR, HEATED, LEFT HAND (V16TW)GRIP, HANDLEBAR, HEATED, LEFT HAND (V16TW)
-
35413019 GRIP, HANDLEBAR, 1'', LHGRIP, HANDLEBAR, 1'', LH
-
42633690-156 ASM., MIRROR, LH, CHROMEASM., MIRROR, LH, CHROME
-
42633691-156 ASM., MIRROR, RH, CHROMEASM., MIRROR, RH, CHROME
-
42633690-266 ASM., MIRROR, LH, BLACKASM., MIRROR, LH, BLACK
-
42633691-266 ASM., MIRROR, RH, BLACKASM., MIRROR, RH, BLACK
-
47547397-156 NUT, JAM, MIRROR, CHROMENUT, JAM, MIRROR, CHROME
-
47547397-266 NUT, JAM, MIRROR, BLACKNUT, JAM, MIRROR, BLACK
-
54012119-067 SWITCH, CONTROL, LH, BLACKSWITCH, CONTROL, LH, BLACK
-
57517816 SCREW, BLACKSCREW, BLACK
-
67518691 SCREWSCREW
-
75251320-408 BRACKET, CRUISE SWITCH, ZNC BLACKBRACKET, CRUISE SWITCH, ZNC BLACK
-
87517420 SCREWSCREW
-
97080792 STRAP, CABLE TIE, BLACKSTRAP, CABLE TIE, BLACK
-
101017592-408 ASM., BRACKET, CRUISE SWITCH, ZNC BLACKASM., BRACKET, CRUISE SWITCH, ZNC BLACK
-
114011357-067 SWITCH, CONTROL, RH, BLACKSWITCH, CONTROL, RH, BLACK
-
117518888 SCREW, BLACK, M5X40SCREW, BLACK, M5X40
-
117518886 SCREW, BLACK, M5X12SCREW, BLACK, M5X12
-
117518890 SCREW, BLACK, M5X55SCREW, BLACK, M5X55
-
125413494 GRIP, HANDLEBAR, HEATED, RIGHT HANDGRIP, HANDLEBAR, HEATED, RIGHT HAND
-
137081612 CABLE, CRUISECABLE, CRUISE
-
137081574 CABLE, THROTTLE PUSH, CRUISECABLE, THROTTLE PUSH, CRUISE
-
147081309 CABLE, THROTTLE PULLCABLE, THROTTLE PULL
-
155254008 BRACKET, GUARD, THROTTLEBRACKET, GUARD, THROTTLE
-
155254008 BRACKET, GUARD, THROTTLEBRACKET, GUARD, THROTTLE
-
162635250-156 ASM., MIRROR, LH, CHROME (INTL)ASM., MIRROR, LH, CHROME (INTL)
-
162635251-156 ASM., MIRROR, RH, CHROME (INTL)ASM., MIRROR, RH, CHROME (INTL)
-
162635250-266 ASM., MIRROR, LH, BLACK (INTL)ASM., MIRROR, LH, BLACK (INTL)
-
162635251-266 ASM., MIRROR, RH, BLACK (INTL)ASM., MIRROR, RH, BLACK (INTL)
-
167547455-156 NUT, MIRROR, POST, CHROME (INTL)NUT, MIRROR, POST, CHROME (INTL)
-
167547455-266 NUT, MIRROR, POST, BLACK (INTL)NUT, MIRROR, POST, BLACK (INTL)
-
167547456-156 NUT, JAM, MIRROR, LH, CHROME (INTL)NUT, JAM, MIRROR, LH, CHROME (INTL)
-
167547456-266 NUT, JAM, MIRROR, LH, BLACK (INTL)NUT, JAM, MIRROR, LH, BLACK (INTL)
-
177081496 CLIP, ROUTINGCLIP, ROUTING
