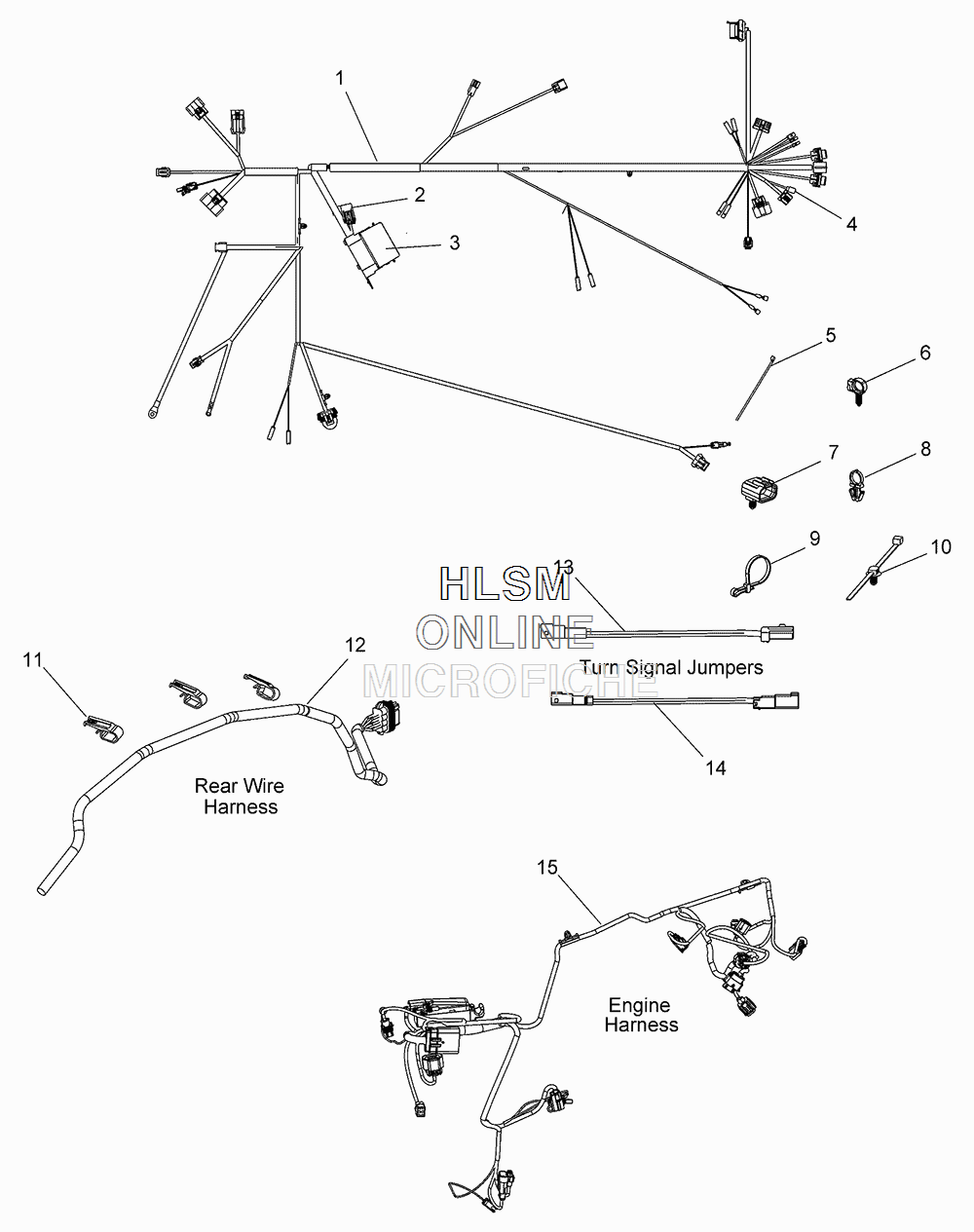

WIRE HARNESS для Polaris GUNNER [V16LB36NT] - 2016 года выпуска
-
№АртикулНазвание
-
12413154 HARNESS, MAIN WIRE, CHASSISHARNESS, MAIN WIRE, CHASSIS
-
12413223 HARNESS, MAIN WIRE, CHASSIS, W/ABS (INTL ONLY)HARNESS, MAIN WIRE, CHASSIS, W/ABS (INTL ONLY)
-
24012260 COVER, FUSE HOLDERCOVER, FUSE HOLDER
-
22410280 FUSE, 15 AMPFUSE, 15 AMP
-
24012421 FUSE, ATC 40 AMP (INTL ONLY)FUSE, ATC 40 AMP (INTL ONLY)
-
35438758 COVER, RELAY/FUSE CENTERCOVER, RELAY/FUSE CENTER
-
45437357 CAP PLUGCAP PLUG
-
57081038 CABLE TIECABLE TIE
-
64010589 CLIP, DARTCLIP, DART
-
74012170 COVER, DIAGNOSTIC W/CLIPCOVER, DIAGNOSTIC W/CLIP
-
87080756 CLIP, SNAP INCLIP, SNAP IN
-
97080133 STRAP, PANDUIT, DOUBLE LOOPSTRAP, PANDUIT, DOUBLE LOOP
-
107081496 CLIP, ROUTINGCLIP, ROUTING
-
117080737 CLIP, ELECTRICALCLIP, ELECTRICAL
-
122410955 HARNESS, REARHARNESS, REAR
-
132412684 LEFT JUMPER, TURN SIGNALLEFT JUMPER, TURN SIGNAL
-
142412685 RIGHT JUMPER, TURN SIGNALRIGHT JUMPER, TURN SIGNAL
-
152413153 HARNESS, ENGINEHARNESS, ENGINE
-
152411035 DIODE, 6AMPDIODE, 6AMP
-
152878507 KIT, HARNESS, IACKIT, HARNESS, IAC
