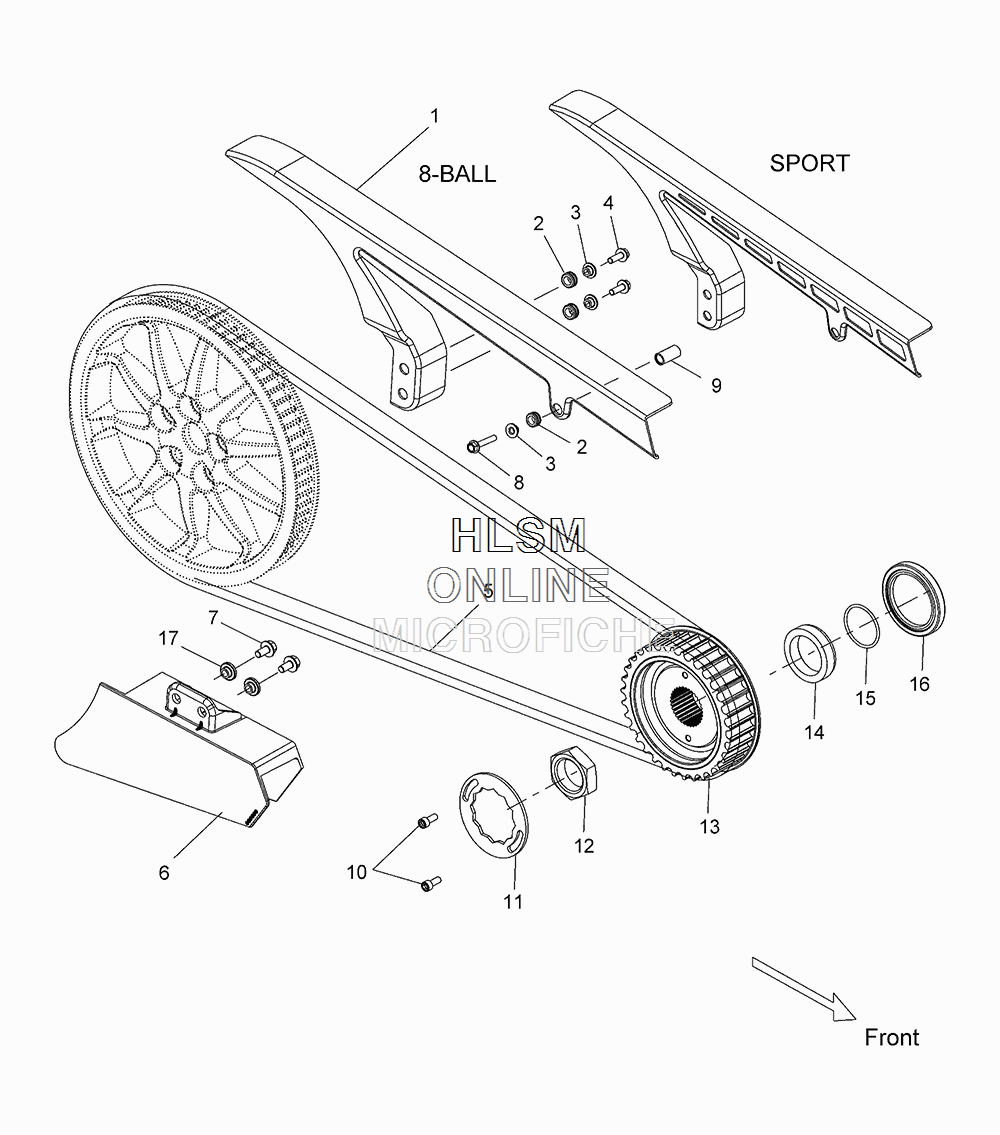

DRIVE SPROCKET AND BELT AND GUARDS для Polaris HAMMER SPORT [V16HS36NB] - 2016 года выпуска
-
№АртикулНазвание
-
15250280-463 GUARD, BELT, UPPER, SPORT, FLAT BLACKGUARD, BELT, UPPER, SPORT, FLAT BLACK
-
25412265 GROMMETGROMMET
-
35134082 SLEEVESLEEVE
-
47517770 SCREWSCREW
-
53211102 BELT, DRIVEBELT, DRIVE
-
65438684 GUARD, BELTGUARD, BELT
-
77518591 SCREWSCREW
-
87518147 SCREWSCREW
-
95135339 SPACERSPACER
-
107517257 SCREW, HX FLGSCREW, HX FLG
-
115258737 WASHER, LOCKWASHER, LOCK
-
127547311 NUT, HEX, THINNUT, HEX, THIN
-
133235061 SPROCKET, DRIVE, 33T RBL, WIDESPROCKET, DRIVE, 33T RBL, WIDE
-
145137737 SPACER, SPROCKETSPACER, SPROCKET
-
155413767 O-RINGO-RING
-
163610118 SEAL, LIPSEAL, LIP
-
175134083 SLEEVESLEEVE
