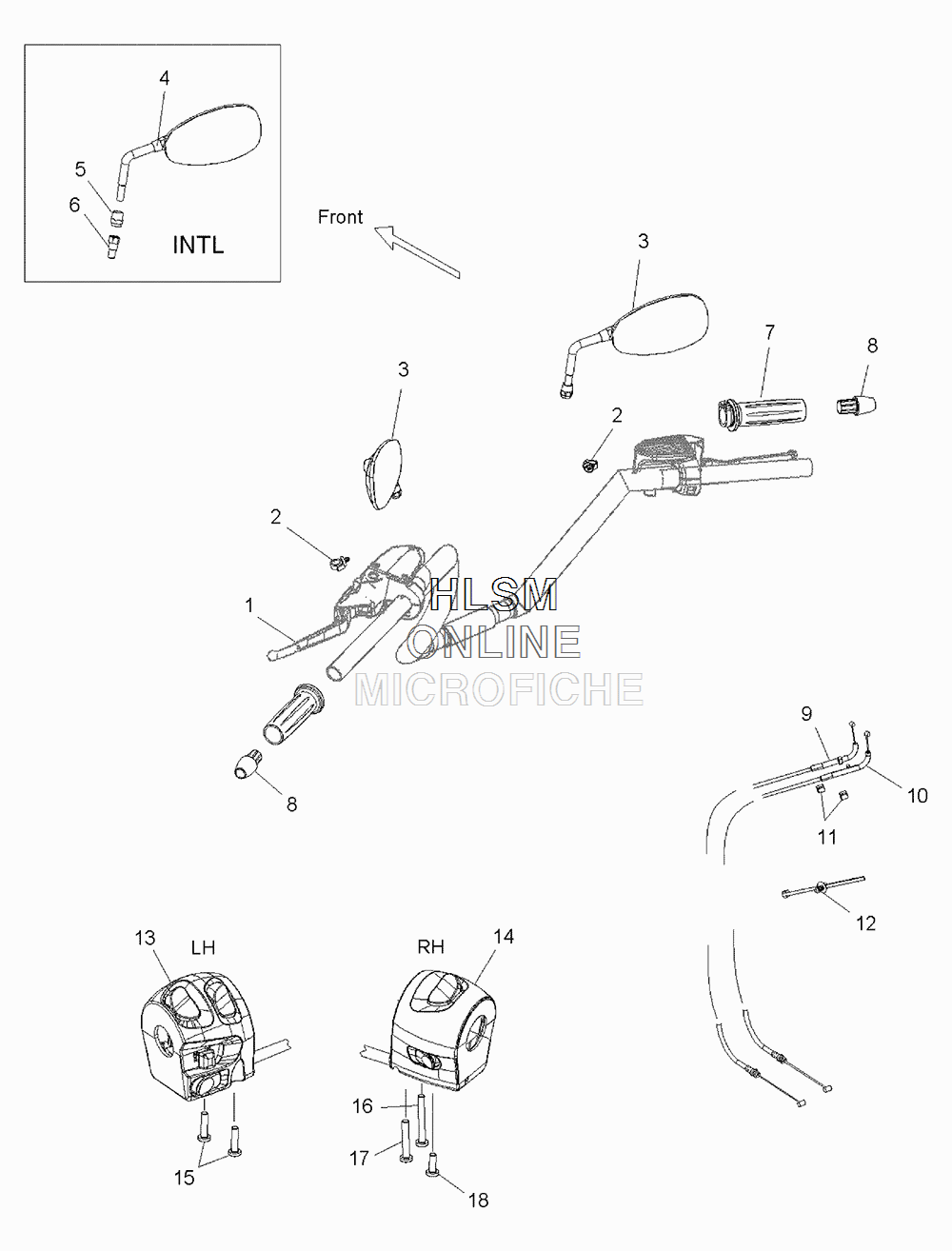

CONTROLS AND MIRRORS для Polaris HIGHBALL [V16WB36NA] - 2016 года выпуска
-
№АртикулНазвание
-
15413019 GRIP, HANDLEBAR, 1 INCH, LHGRIP, HANDLEBAR, 1 INCH, LH
-
27081496 CLIP, ROUTINGCLIP, ROUTING
-
32633690-266 ASM., MIRROR, LH, BLACK (INCL. JAM NUT)ASM., MIRROR, LH, BLACK (INCL. JAM NUT)
-
32633691-266 ASM., MIRROR, RH, BLACK (INCL. JAM NUT)ASM., MIRROR, RH, BLACK (INCL. JAM NUT)
-
37547397-266 NUT, JAM, MIRROR, BLACKNUT, JAM, MIRROR, BLACK
-
42635250-266 ASM., MIRROR, LH, BLACK (INCL. JAM NUT) (INTL)ASM., MIRROR, LH, BLACK (INCL. JAM NUT) (INTL)
-
42635251-266 ASM., MIRROR, RH, BLACK (INCL. JAM NUT) (INTL)ASM., MIRROR, RH, BLACK (INCL. JAM NUT) (INTL)
-
57547455-266 NUT, MIRROR POST, BLACK (1 PER MIRROR) (INTL)NUT, MIRROR POST, BLACK (1 PER MIRROR) (INTL)
-
67547456-266 NUT, JAM, MIRROR, LEFT HAND THREAD, BLACK (1 PER MIRROR) (INTL)NUT, JAM, MIRROR, LEFT HAND THREAD, BLACK (1 PER MIRROR) (INTL)
-
75413501 GRIP, HANDLEBAR, 1 INCH, RHGRIP, HANDLEBAR, 1 INCH, RH
-
85439001 CAP, HANDLEBAR, SHORTCAP, HANDLEBAR, SHORT
-
97081729 CABLE, THROTTLE, PULL, BLACKCABLE, THROTTLE, PULL, BLACK
-
107081728 CABLE, THROTTLE, PUSH, BLACKCABLE, THROTTLE, PUSH, BLACK
-
115433039 CLIP, THROTTLE CABLECLIP, THROTTLE CABLE
-
127081496 CLIP, ROUTINGCLIP, ROUTING
-
134012119-067 SWITCH, CONTROL, LH, BLACKSWITCH, CONTROL, LH, BLACK
-
144011357-067 SWITCH, CONTROL, RH, BLACKSWITCH, CONTROL, RH, BLACK
-
157517816 SCREW, 20MM, BLACKSCREW, 20MM, BLACK
-
167518890 SCREW, 55MM (BLACK)SCREW, 55MM (BLACK)
-
177518888 SCREW, 40MM (BLACK)SCREW, 40MM (BLACK)
-
187518886 SCREW, 12MM (BLACK)SCREW, 12MM (BLACK)
