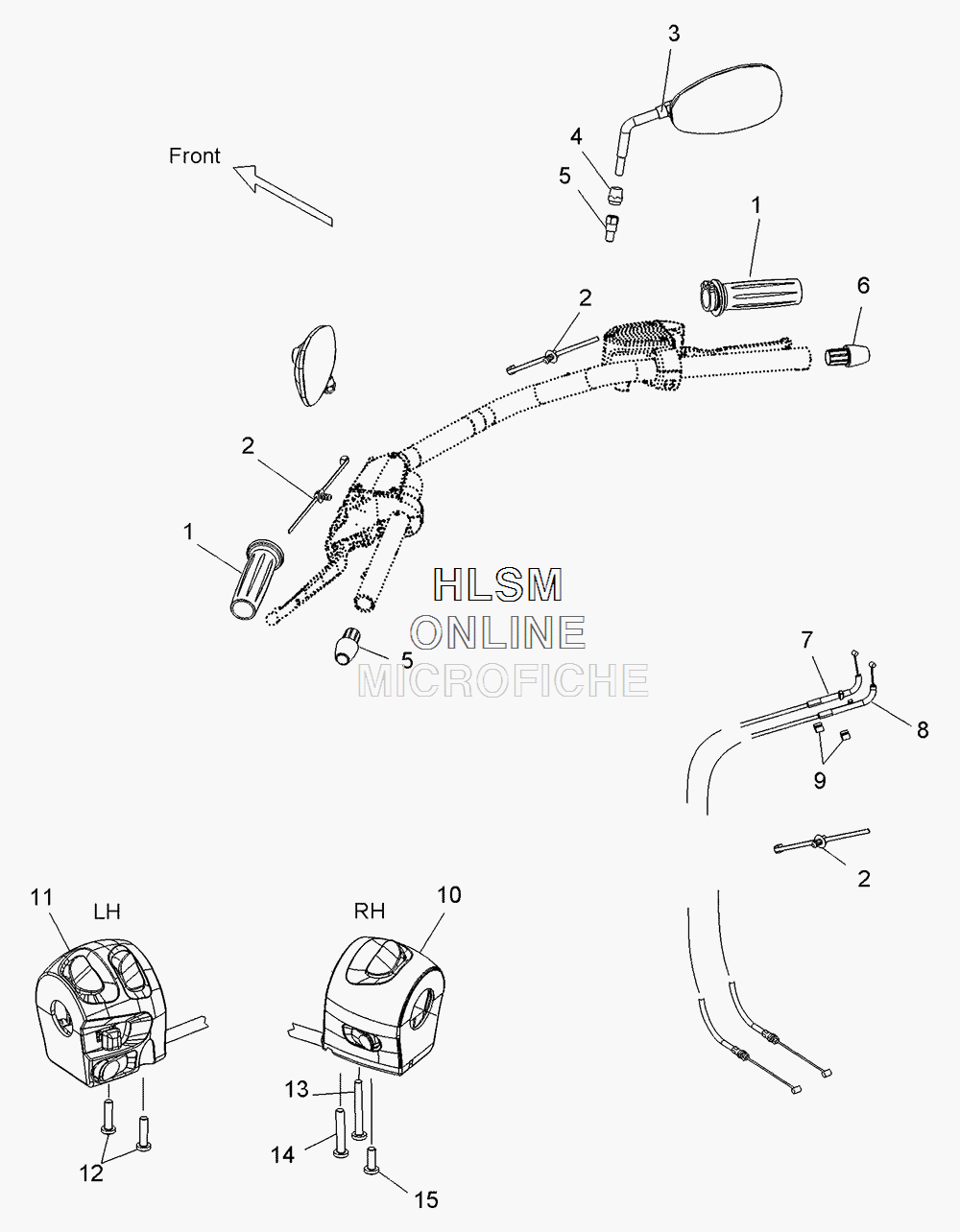

CONTROLS AND MIRRORS для Polaris VEGAS JACKPOT [V16XB36EU] - 2016 года выпуска
-
№АртикулНазвание
-
15413019 LEFT GRIP, HANDLEBAR, 1 IN.LEFT GRIP, HANDLEBAR, 1 IN.
-
15413501 RIGHT GRIP, HANDLEBAR, 1 IN.RIGHT GRIP, HANDLEBAR, 1 IN.
-
27081496 CLIP, ROUTINGCLIP, ROUTING
-
32635250-156 LEFT ASM., MIRROR, CHROME (INTL)LEFT ASM., MIRROR, CHROME (INTL)
-
32635251-156 RIGHT ASM., MIRROR, CHROME (INTL)RIGHT ASM., MIRROR, CHROME (INTL)
-
47547455-156 NUT, MIRROR, CHROME (INTL) (1 PER MIRROR)NUT, MIRROR, CHROME (INTL) (1 PER MIRROR)
-
57547456-156 NUT, MIRROR, LEFT HAND THREAD, CHROME (INTL) (1 PER MIRROR)NUT, MIRROR, LEFT HAND THREAD, CHROME (INTL) (1 PER MIRROR)
-
65439001 CAP, HANDLEBARCAP, HANDLEBAR
-
77081452 CABLE, THROTTLE, PULL (STD BLACK)CABLE, THROTTLE, PULL (STD BLACK)
-
87081448 CABLE, THROTTLE, PUSH (STD BLACK)CABLE, THROTTLE, PUSH (STD BLACK)
-
95433039 CLIP, THROTTLE CABLECLIP, THROTTLE CABLE
-
104011357-067 RIGHT SWITCH, CONTROL (BLACK)RIGHT SWITCH, CONTROL (BLACK)
-
114012119-067 LEFT SWITCH, CONTROL (BLACK)LEFT SWITCH, CONTROL (BLACK)
-
127517816 SCREW, 20MM (BLACK)SCREW, 20MM (BLACK)
-
137518890 SCREW, 55MM (BLACK)SCREW, 55MM (BLACK)
-
147518888 SCREW, 40MM (BLACK)SCREW, 40MM (BLACK)
-
157518886 SCREW, 12MM (BLACK)SCREW, 12MM (BLACK)
