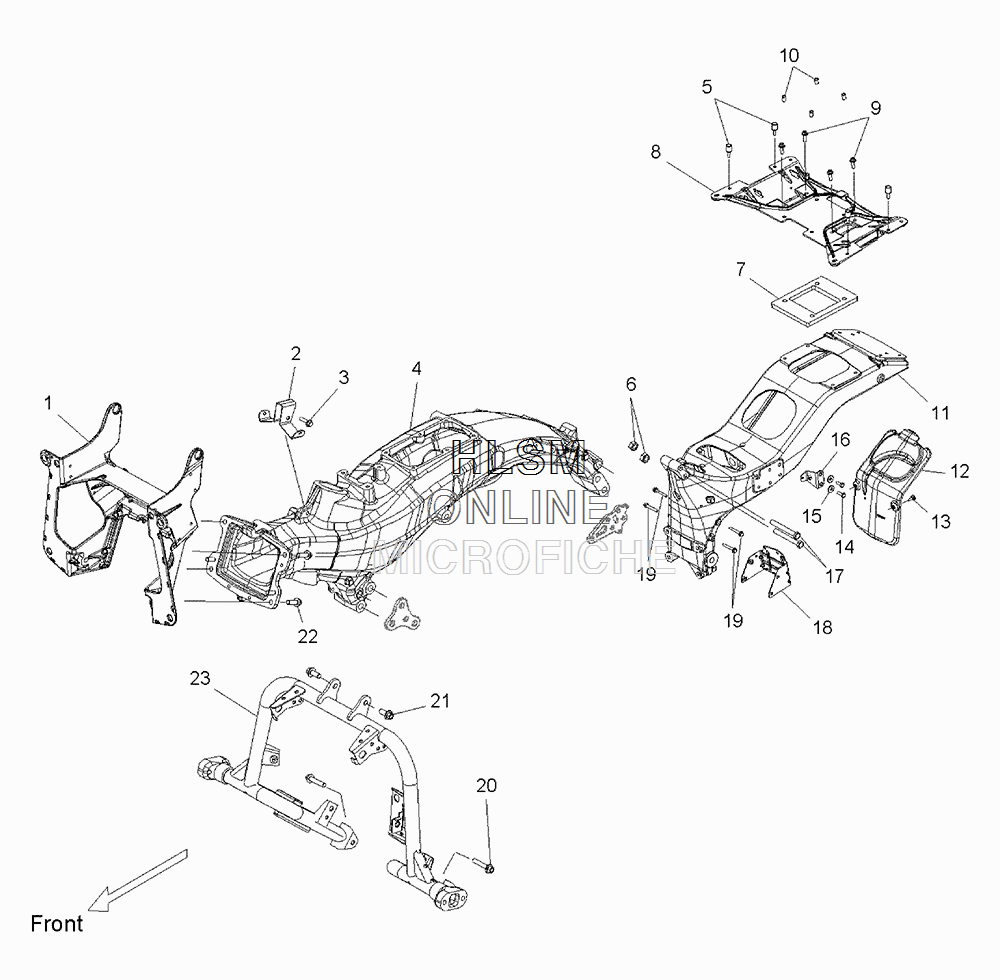

FRAME для Polaris VISION [V16SW36NA] - 2016 года выпуска
-
№АртикулНазвание
-
15136940 SUBFRAME, COCKPITSUBFRAME, COCKPIT
-
21015647 MOUNT, RETAINERMOUNT, RETAINER
-
37518533 BOLTBOLT
-
41015629 ASM, AIRBOX, FRAMEASM, AIRBOX, FRAME
-
55412969 BUMPER, HANDLE CLOSEOUTBUMPER, HANDLE CLOSEOUT
-
67547232 NUTNUT
-
75813251 FOAM, SUBFRAME SEALFOAM, SUBFRAME SEAL
-
85135560 SUPPORT, SADDLEBAG (INCL. 10)SUPPORT, SADDLEBAG (INCL. 10)
-
97518569 SCREWSCREW
-
107547407 INSERTINSERT
-
115136288 FRAME, MAIN, REARFRAME, MAIN, REAR
-
125813054 FLAP, DEBRISFLAP, DEBRIS
-
137518484 SCREWSCREW
-
147518097 SCREWSCREW
-
157555960 WASHER, FLATWASHER, FLAT
-
161015484 PLATE, NUTPLATE, NUT
-
177518125 SCREWSCREW
-
181017358 BRACKET, CRUISE CONTROLBRACKET, CRUISE CONTROL
-
197517950 SCREW (2 PER SIDE)SCREW (2 PER SIDE)
-
207517881 SCREWSCREW
-
217517458 SCREWSCREW
-
227518569 SCREWSCREW
-
231016036-266 FRAME, LOWER, FRONT, BLACKFRAME, LOWER, FRONT, BLACK
