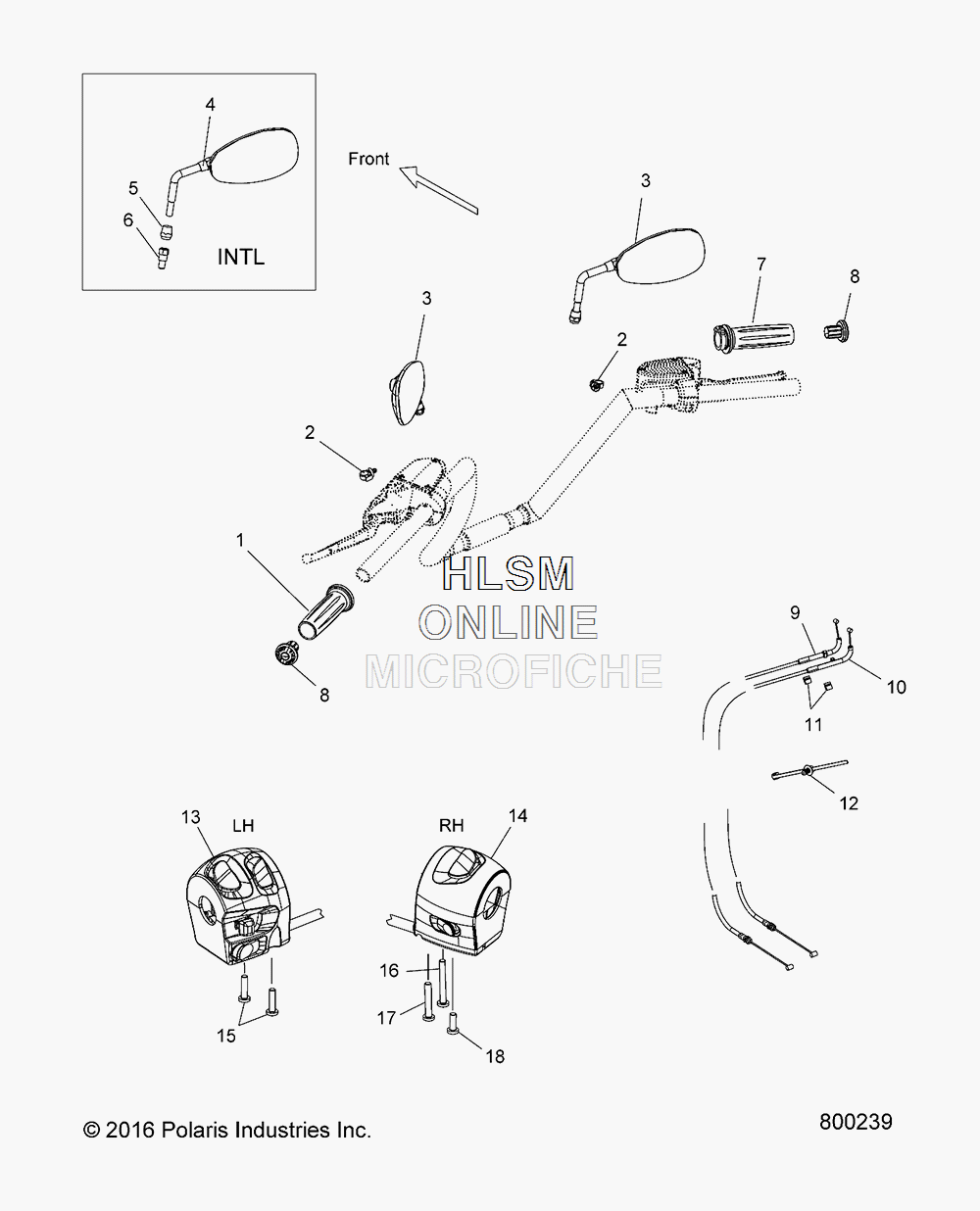

CONTROLS AND MIRRORS для Polaris Highball Suede Black [V17CWBABAH] - 2017 года выпуска
-
№АртикулНазвание
-
15413019 GRIP, HANDLEBAR (1 IN) LEFTGRIP, HANDLEBAR (1 IN) LEFT
-
27081496 CLIP, ROUTINGCLIP, ROUTING
-
37547397-266 NUT, JAM, MIRROR (BLACK)NUT, JAM, MIRROR (BLACK)
-
32633690-266 ASM., MIRROR, LEFT (BLACK) [INCL. JAM NUT]ASM., MIRROR, LEFT (BLACK) [INCL. JAM NUT]
-
32633691-266 ASM., MIRROR, RIGHT (BLACK) [INCL. JAM NUT]ASM., MIRROR, RIGHT (BLACK) [INCL. JAM NUT]
-
42635251-266 ASM., MIRROR, RIGHT (BLACK) [INCL. JAM NUT][INT'L]ASM., MIRROR, RIGHT (BLACK) [INCL. JAM NUT][INT'L]
-
42635250-266 ASM., MIRROR, LEFT (BLACK) [INCL. JAM NUT][INT'L]ASM., MIRROR, LEFT (BLACK) [INCL. JAM NUT][INT'L]
-
57547455-266 NUT, MIRROR POST (BLACK) [1 PER MIRROR][INT'L]NUT, MIRROR POST (BLACK) [1 PER MIRROR][INT'L]
-
67547456-266 NUT, JAM, MIRROR, LEFT THREAD (BLACK) [1 PER MIRROR][INT'L]NUT, JAM, MIRROR, LEFT THREAD (BLACK) [1 PER MIRROR][INT'L]
-
75413501 GRIP, HANDLEBAR (1 IN), RIGHTGRIP, HANDLEBAR (1 IN), RIGHT
-
85439001 CAP, HANDLEBAR, SHORTCAP, HANDLEBAR, SHORT
-
97081729 CABLE, THROTTLE, PULL (912MM) (BLACK)CABLE, THROTTLE, PULL (912MM) (BLACK)
-
107081728 CABLE, THROTTLE, PUSH (912MM) (BLACK)CABLE, THROTTLE, PUSH (912MM) (BLACK)
-
115433039 CLIP, THROTTLE CABLECLIP, THROTTLE CABLE
-
127081496 CLIP, ROUTINGCLIP, ROUTING
-
134012119-067 SWITCH, CONTROL, LEFT (BLACK)SWITCH, CONTROL, LEFT (BLACK)
-
144011357-067 SWITCH, CONTROL, RIGHT (BLACK)SWITCH, CONTROL, RIGHT (BLACK)
-
157517816 SCREW, 20MM (BLACK)SCREW, 20MM (BLACK)
-
167518890 SCREW, 55MM [BLACK]SCREW, 55MM [BLACK]
-
177518888 SCREW, 40MM [BLACK]SCREW, 40MM [BLACK]
-
187518886 SCREW, 12MM [BLACK]SCREW, 12MM [BLACK]
