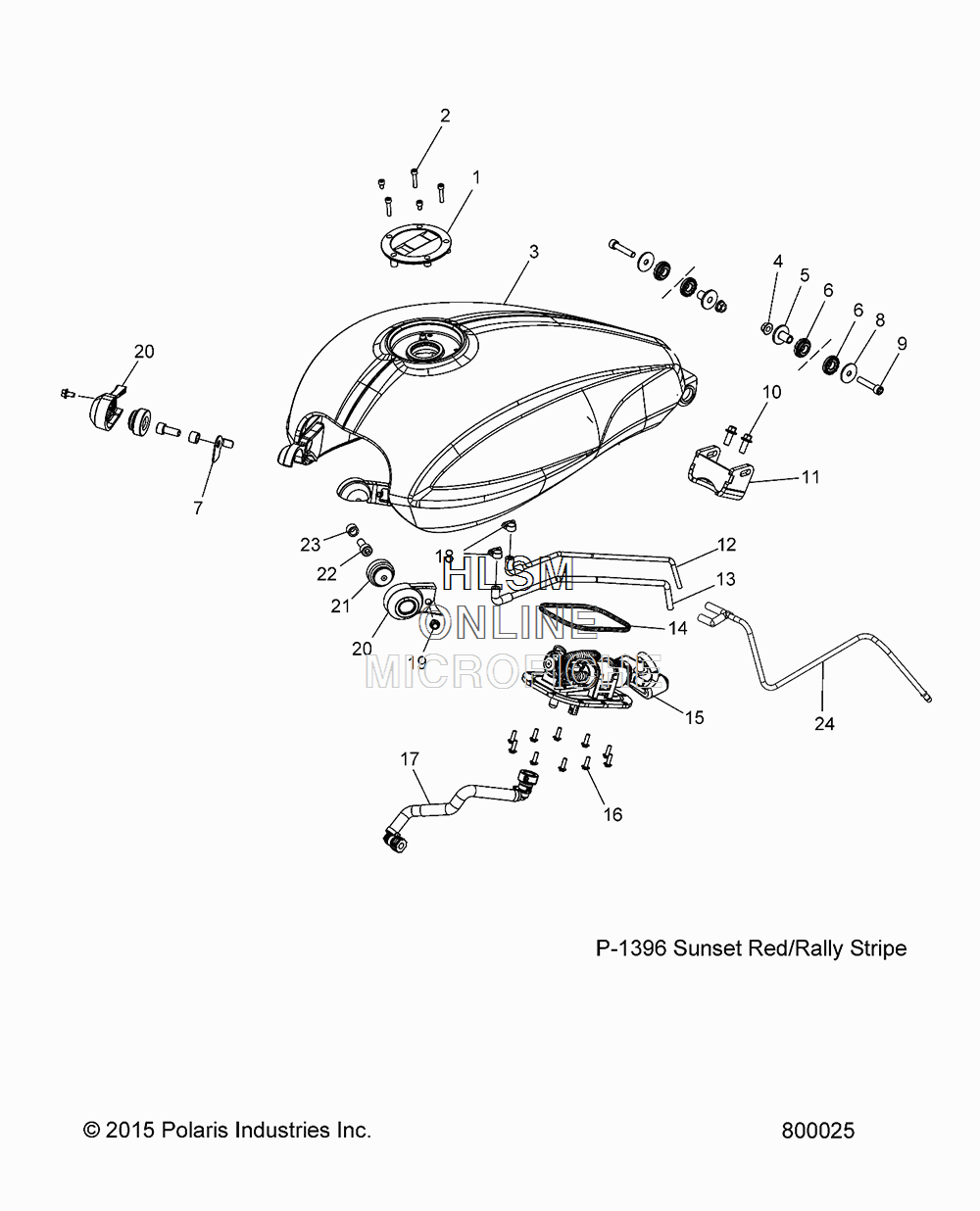

FUEL TANK для Polaris JUDGE INTL [V17CJAABEM] - 2017 года выпуска
-
№АртикулНазвание
-
14012377-266 ASM., IGNITION/FUEL CAP, (INT'L) (BLACK)ASM., IGNITION/FUEL CAP, (INT'L) (BLACK)
-
27518086 SCREW-M5X25SCREW-M5X25
-
27517515 SCREW-M5X8SCREW-M5X8
-
27517845 SCREW-M5X12SCREW-M5X12
-
31018260-1396 TANK, FUELTANK, FUEL
-
47547014 NUTNUT
-
55136409 BUSHING, FLANGEBUSHING, FLANGE
-
65413491 BUSHING, FLANGE, RUBBERBUSHING, FLANGE, RUBBER
-
75256248 BRACKET, THROTTLE CABLE PROTECTORBRACKET, THROTTLE CABLE PROTECTOR
-
87556175 WASHERWASHER
-
97518178 SCREWSCREW
-
107517838 SCREWSCREW
-
111018907 BRACKET, FUEL TANK MOUNTBRACKET, FUEL TANK MOUNT
-
125453153 LINE, FUEL VENTLINE, FUEL VENT
-
135435764 LINE, WATER DRAINLINE, WATER DRAIN
-
145413346 SEAL, FUELSEAL, FUEL
-
152521221 PUMP, FUELPUMP, FUEL
-
167519765 SCREWSCREW
-
175414309 LINE, FUELLINE, FUEL
-
187081151 CLAMP, HOSE (9-14 MM)CLAMP, HOSE (9-14 MM)
-
197517704 SCREWSCREW
-
205439144-463 COVER, TANK, RIGHT BRACKET (FLAT BLACK)COVER, TANK, RIGHT BRACKET (FLAT BLACK)
-
205439143-463 COVER, TANK, LEFT BRACKET (FLAT BLACK)COVER, TANK, LEFT BRACKET (FLAT BLACK)
-
215413479 ISOLATOR, TANK, FRONTISOLATOR, TANK, FRONT
-
227517358 SCREWSCREW
-
235336872 SPACERSPACER
-
245435771 LINE, WTR/FUEL TO GROUNDLINE, WTR/FUEL TO GROUND
