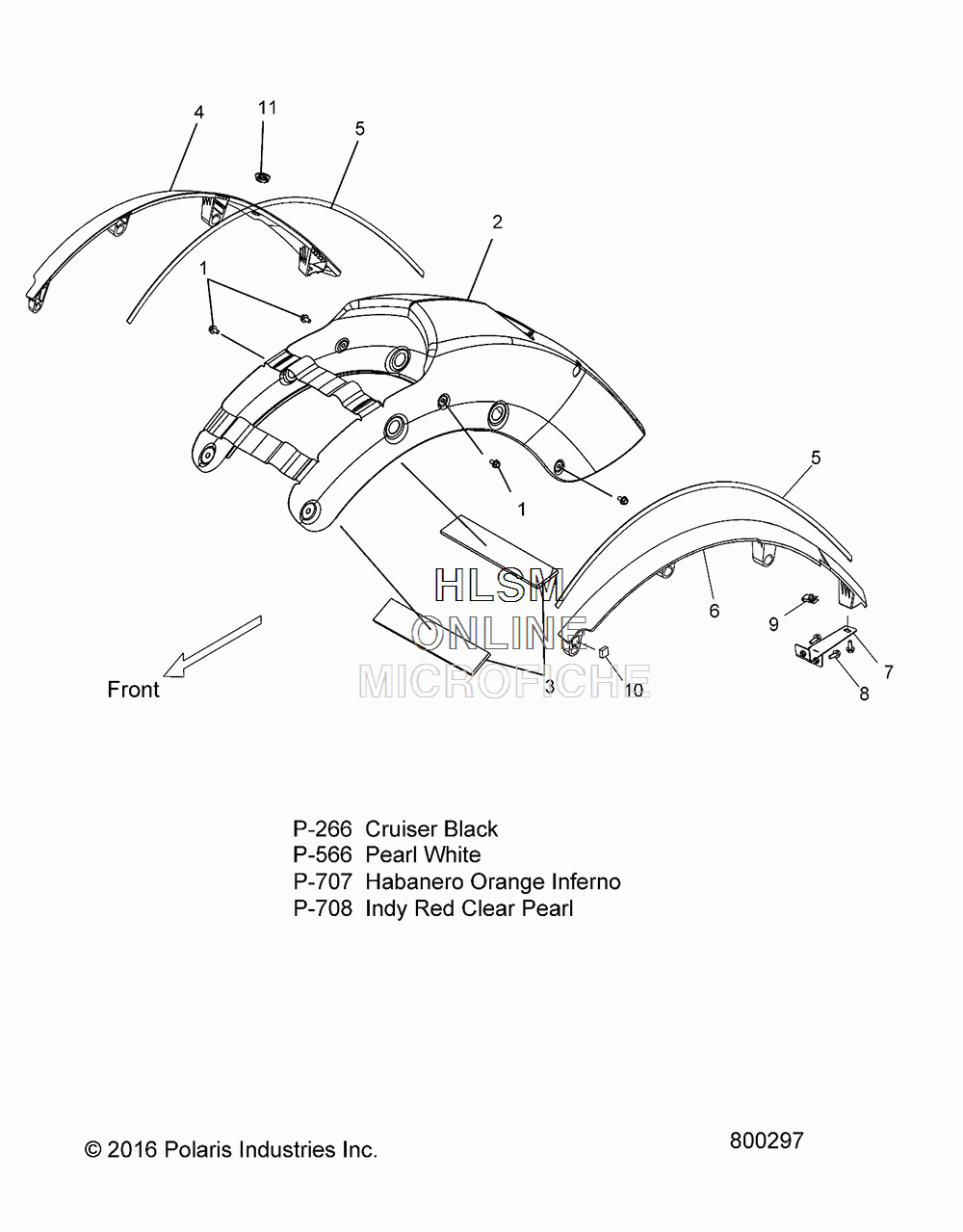

FENDER- REAR для Polaris Magnum X1 Gloss Pearl White/GFX [V17XMXAAA1] - 2017 года выпуска
-
№АртикулНазвание
-
17517704 SCREWSCREW
-
21016644-566 FENDER, REAR (X-1) (GLOSS PEARL WHITE)FENDER, REAR (X-1) (GLOSS PEARL WHITE)
-
35413922 BUMPER, FENDER, REARBUMPER, FENDER, REAR
-
45451016-566 CLOSEOUT, FENDER, REAR, RIGHT (X-1) (GLOSS PEARL WHITE)CLOSEOUT, FENDER, REAR, RIGHT (X-1) (GLOSS PEARL WHITE)
-
55814095 SEAL, FOAMSEAL, FOAM
-
65451015-566 CLOSEOUT, FENDER, REAR, LEFT (X-1) (GLOSS PEARL WHITE)CLOSEOUT, FENDER, REAR, LEFT (X-1) (GLOSS PEARL WHITE)
-
71021001 BRKT., CLOSEOUT, FENDER, LEFTBRKT., CLOSEOUT, FENDER, LEFT
-
71021002 BRKT., CLOSEOUT, FENDER, RIGHTBRKT., CLOSEOUT, FENDER, RIGHT
-
87518591 SCREWSCREW
-
97081305 CLIP-U SPEED NUTCLIP-U SPEED NUT
-
105415109 PAD, RUBBERPAD, RUBBER
-
115437772 GROMMET (4MM)GROMMET (4MM)
