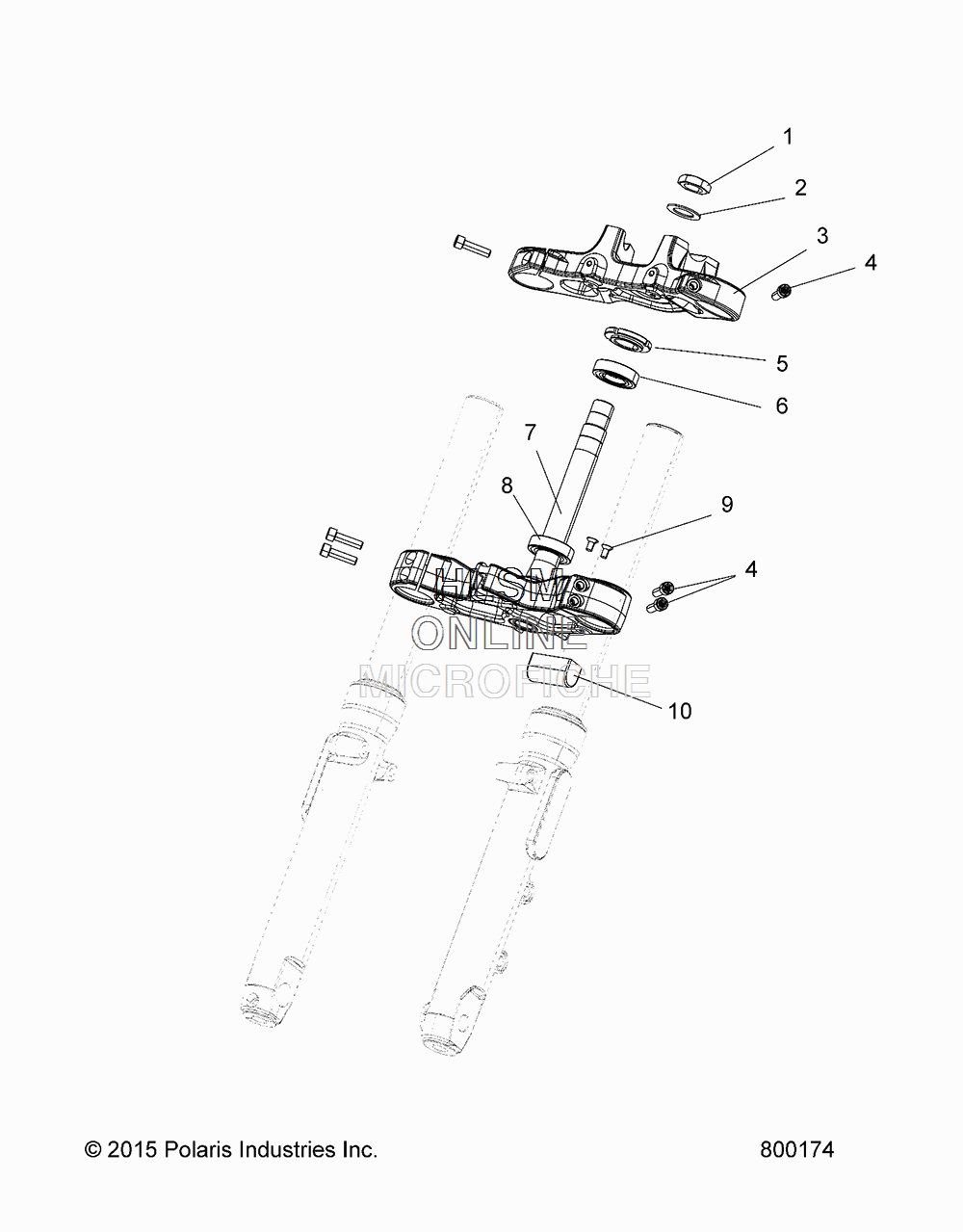

UPPER AND LOWER CLAMPS для Polaris Octane Suede Metallic [V17FTB00AY] - 2017 года выпуска
-
№АртикулНазвание
-
15134148 NUT, TOP, TRIPLE CLAMPNUT, TOP, TRIPLE CLAMP
-
27556246 WASHERWASHER
-
35140680-658 CLAMP, TRIPLE, UPPER (GLOSS BLACK)CLAMP, TRIPLE, UPPER (GLOSS BLACK)
-
47517361 SCREWSCREW
-
55134094 NUT, STEERING HEADNUT, STEERING HEAD
-
63514549 BEARING, BALLBEARING, BALL
-
71824075-658 ASM., LOWER BRACKET (GLOSS BLACK) (INCL. 8)ASM., LOWER BRACKET (GLOSS BLACK) (INCL. 8)
-
83514416 BEARING, NEEDLEBEARING, NEEDLE
-
97519991 SCREW (INT'L)SCREW (INT'L)
-
104014430-266 ASM., IGN./FUEL/FORK LOCK (BLACK) (INTL.)(INCL. IGN. AND FUEL LOCK)ASM., IGN./FUEL/FORK LOCK (BLACK) (INTL.)(INCL. IGN. AND FUEL LOCK)
