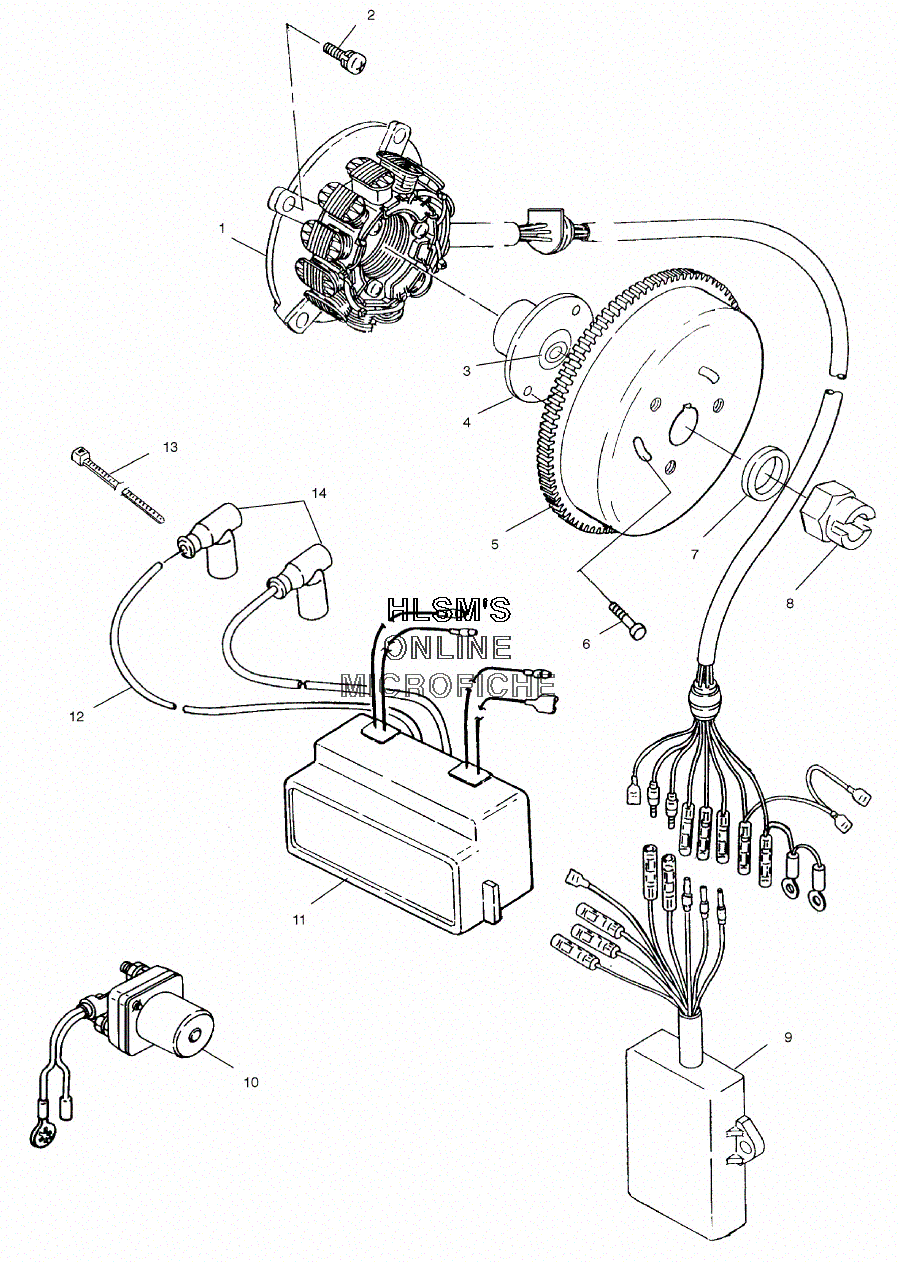

MAGNETO для Polaris SLH 2-Pass - 2000 года выпуска
-
№АртикулНазвание
-
14010172 STATOR ASSY.STATOR ASSY.
-
27517259 SCREWSCREW
-
35411320 O-RINGO-RING
-
45432282 HOLDER, MAGNETHOLDER, MAGNET
-
54010189 FLYWHEEL ASSY. (INCL. 3-5)FLYWHEEL ASSY. (INCL. 3-5)
-
67517431 SCREWSCREW
-
77555907 WASHERWASHER
-
87546909 NUTNUT
-
94010380 CONTROLLER, IGNITIONCONTROLLER, IGNITION
-
103240204 SWITCH, MAGNETICSWITCH, MAGNETIC
-
114010175 COIL, IGNITIONCOIL, IGNITION
-
123070178 WIRE, SPARKPLUGWIRE, SPARKPLUG
-
137080483 CABLE TIE (4 IN.)CABLE TIE (4 IN.)
-
144020155 CAP, SPARKPLUGCAP, SPARKPLUG
