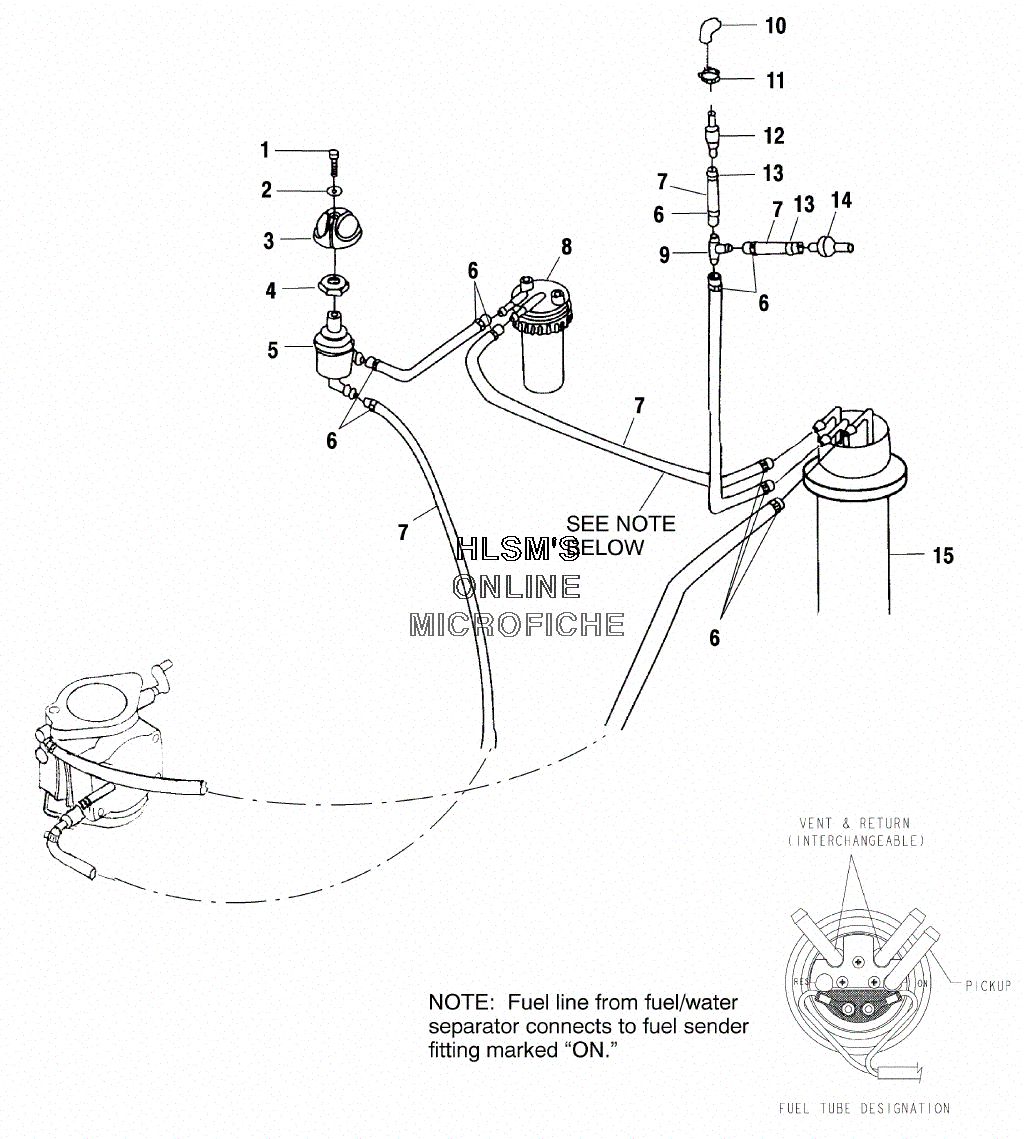

FUEL SYSTEM для Polaris Virage 3-Pass - 2000 года выпуска
-
№АртикулНазвание
-
17516302 SCREWSCREW
-
27555840 WASHER, FLATWASHER, FLAT
-
35432836-070 KNOB, FUEL VALVE (BLACK)KNOB, FUEL VALVE (BLACK)
-
45431451 NUT, FUEL VALVENUT, FUEL VALVE
-
57052159 VALVE, ON/OFFVALVE, ON/OFF
-
67080476 CLAMP, HOSECLAMP, HOSE
-
78450046-1525 FUEL LINE (1/4'' .250CM) (OPT)FUEL LINE (1/4'' .250CM) (OPT)
-
83240220 SEPARATOR, FUEL/WATERSEPARATOR, FUEL/WATER
-
97052111 FITTING, TEEFITTING, TEE
-
105410682 GROMMET, VENTGROMMET, VENT
-
117080483 CABLE TIE (4 IN)CABLE TIE (4 IN)
-
127051015 VALVE, CHECK RELIEFVALVE, CHECK RELIEF
-
137080138 CABLE TIECABLE TIE
-
147052118 VALVE, VACUUM CHECKVALVE, VACUUM CHECK
-
152410124 FUEL SENDER ASSY.FUEL SENDER ASSY.
