FUEL SYSTEM для Polaris Genesis i 4-Pass Euro - 2001 года выпуска
-
№АртикулНазвание
-
15410682 GROMMET, VENTGROMMET, VENT
-
27080483 CABLE TIE (4 INCH)CABLE TIE (4 INCH)
-
37052078 CONNECTORCONNECTOR
-
47080138 CABLE, TIECABLE, TIE
-
57080476 CLAMP, HOSECLAMP, HOSE
-
67051015 VALVE, CHECK RELIEFVALVE, CHECK RELIEF
-
77052111 FITTING, TEEFITTING, TEE
-
88450046-1525 FUEL LINE (1/4'' 250CM) (OPT)FUEL LINE (1/4'' 250CM) (OPT)
-
97052118 VALVE, VACUUM CHECKVALVE, VACUUM CHECK
-
107052253 CONNECTOR ASSY.CONNECTOR ASSY.
-
117080482 T, CLIPT, CLIP
-
127052230 FITTING, T (LARGE)FITTING, T (LARGE)
-
137080830 CLAMP, HOSECLAMP, HOSE
-
148450085 HOSE (OPT)HOSE (OPT)
-
157052229 FITTING, L (LARGE)FITTING, L (LARGE)
-
165411601 O-RING, DFI FITTING (LARGE)O-RING, DFI FITTING (LARGE)
-
177052227 FITTING, L (SMALL)FITTING, L (SMALL)
-
185411599 O-RING DFI FITTING (SMALL)O-RING DFI FITTING (SMALL)
-
191253349 INJECTORINJECTOR
-
207052228 FITTING, T (SMALL) (BROWN)FITTING, T (SMALL) (BROWN)
-
217080948 CLAMP, HOSECLAMP, HOSE
-
222872602 SHRADER, VALVE W/ CAPSHRADER, VALVE W/ CAP
Все узлы модели:
- AIR INTAKE SYSTEM

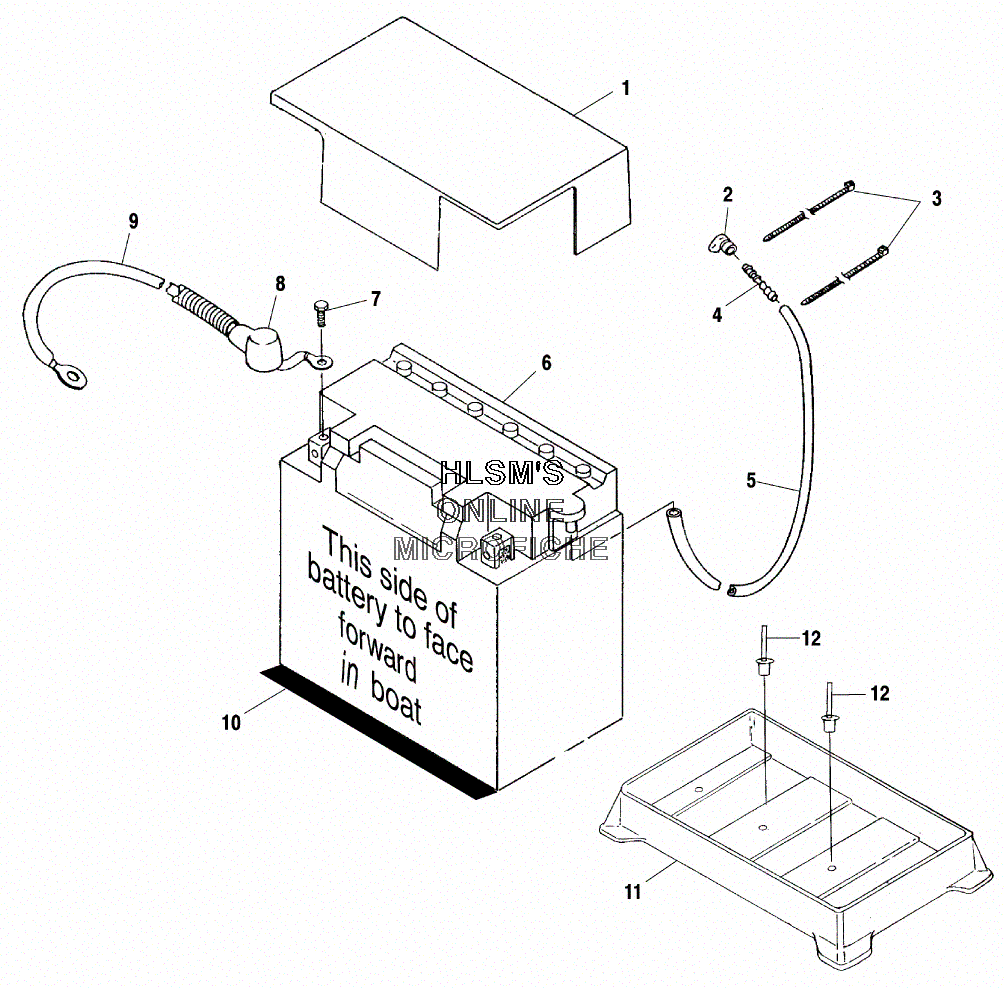

- BATTERY BOX
- BILGE PUMP
- BILGE SIPHON
- COOLING SYSTEM
- CRANKCASE
- CRANKSHAFT W/ PISTONS
- DECALS
- DRIVE SHAFT W/ COUPLER
- ELECTRICAL BOX
- ELECTRONIC MODULE
- ENGINE MOUNTING W/ SHORT BLOCK
- EXHAUST SYSTEM
- • FUEL SYSTEM
- FUEL TANK
- HANDLEBAR ASSY. W/ STEERING COLUMN
- HULL
- HULL
- INTAKE GRATE W/ RIDE PLATE
- MANIFOLD- CYLINDER W/ IGNITION
- OIL PUMP
- OIL TANK
- PROPULSION
- REVERSE
- SEAT
- SHROUD W/ INSTRUMENTS AND MIRRORS
- STARTING MOTOR
- STEERING CABLE ASSY.
- STORAGE COMPARTMENT - FRONT
- THROTTLE BODY ASSY.
- TOOL KIT
