ENGINE MOUNTING W/ SHORT BLOCK для Polaris Virage TX 3-Pass - 2002 года выпуска
-
№АртикулНазвание
-
12410187 SWITCH, TEMP W/CONNECTORSWITCH, TEMP W/CONNECTOR
-
27077026 DECAL, SPARKPLUG REC.DECAL, SPARKPLUG REC.
-
37515149 SCREW, SHOULDERSCREW, SHOULDER
-
45242476 GROUND, SPARKPLUGGROUND, SPARKPLUG
-
53070163 SPARK PLUGSPARK PLUG
-
67075383 DECAL, WARNINGDECAL, WARNING
-
77556184 WASHER, FLATWASHER, FLAT
-
85631166-329 PLATE, MOUNT W/WASHER (FRONT/BLACK)PLATE, MOUNT W/WASHER (FRONT/BLACK)
-
97556170 WASHER, FLATWASHER, FLAT
-
107517330 SCREWSCREW
-
115631167-329 PLATE, MOUNT W/WASHER (REAR/BLACK)PLATE, MOUNT W/WASHER (REAR/BLACK)
-
125245460 LOCK, MOUNT PLATELOCK, MOUNT PLATE
-
133021254 MOUNT, ENGINE LORD BENTMOUNT, ENGINE LORD BENT
-
145211727 SHIM, ENGINE MOUNTSHIM, ENGINE MOUNT
-
157555866 WASHERWASHER
-
167552610 WASHER, LOCKWASHER, LOCK
-
177517627 SCREWSCREW
-
187555848 WASHER, FLATWASHER, FLAT
-
197542725 NUT, NYLOKNUT, NYLOK
-
207556055 WASHER, LOCKWASHER, LOCK
-
217517497 BOLTBOLT
-
222201704 SHORT, BLOCK (FOOTNOTE)SHORT, BLOCK (FOOTNOTE)
-
235240876 CLIP, RETAIN TEMP. SW.CLIP, RETAIN TEMP. SW.
-
247516603 BOLTBOLT
Все узлы модели:
- AIR INLET - ENGINE AND HULL
- AIR INTAKE SYSTEM
- BATTERY BOX
- BILGE PUMP
- CARBURETOR
- COOLING SYSTEM
- CRANKCASE
- CRANKSHAFT W/ PISTONS
- CYLINDER W/ INTAKE
- DECALS
- DRIVE SHAFT W/ COUPLER
- ELECTRICAL BOX
- • ENGINE MOUNTING W/ SHORT BLOCK
- EXHAUST SYSTEM
- FUEL / WATER SEPARATOR
- FUEL SYSTEM
- FUEL TANK
- HANDLEBAR ASSY. W/ STEERING COLUMN
- HULL
- INTAKE GRATE W/ RIDE PLATE
- MAGNETO
- OIL PUMP
- OIL TANK
- PROPULSION
- REVERSE
- SEAT
- SHROUD W/ INSTRUMENTS AND MIRRORS
- STARTING MOTOR
- STEERING CABLE ASSY.
- STORAGE COMPARTMENT - FRONT

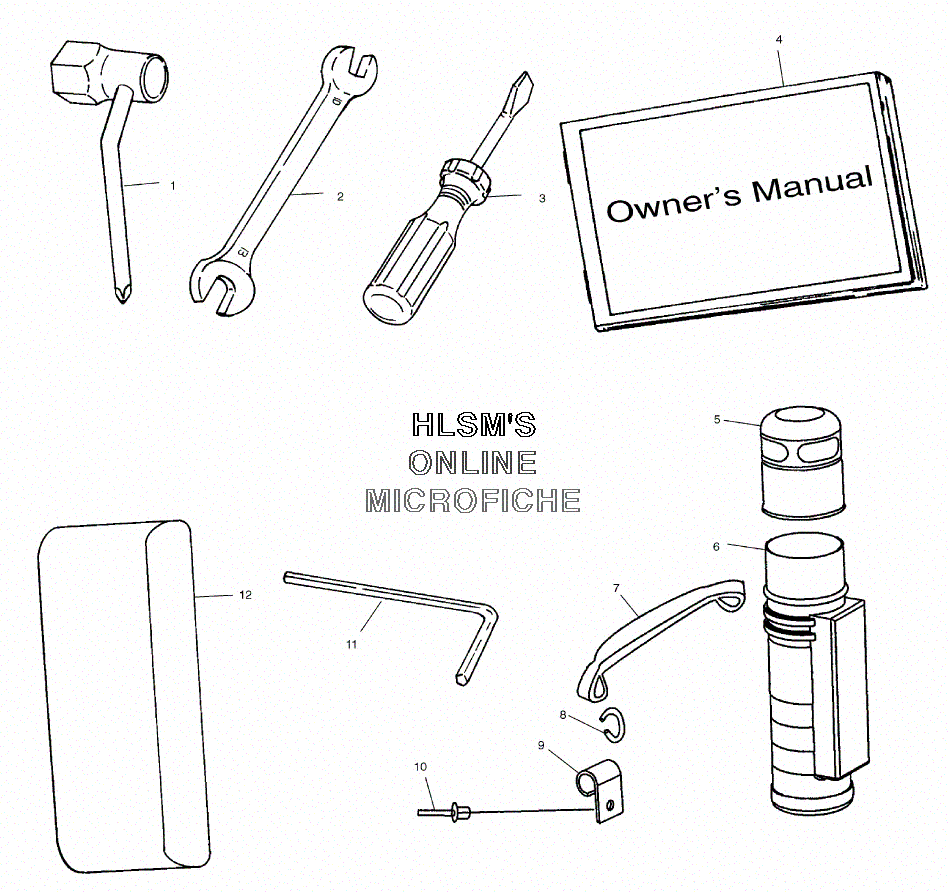

- TOOL KIT
