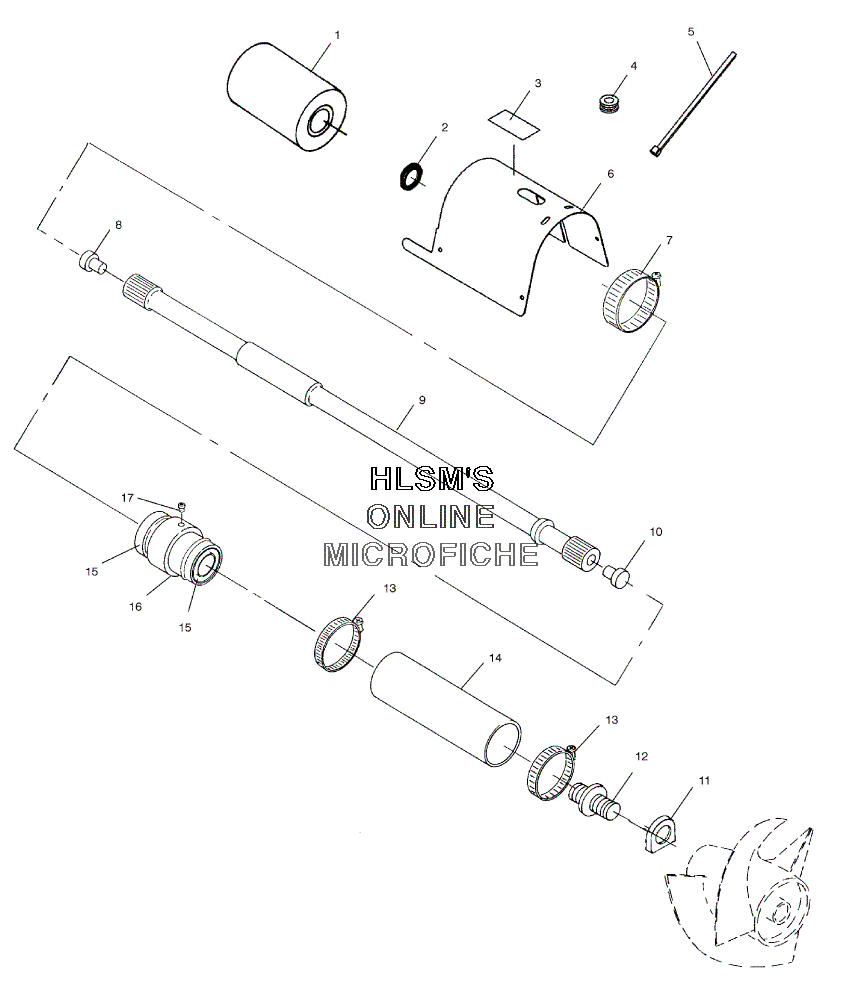

COOLING SYSTEM для Polaris MSX 140 (CA) - 2003 года выпуска
-
№АртикулНазвание
-
15434149-133 FITTING-THRU HULL, 90 DEG, WHTFITTING-THRU HULL, 90 DEG, WHT
-
25812237 GASKET-1.57ODX1.02IDX.10, BUNAGASKET-1.57ODX1.02IDX.10, BUNA
-
35133884 FITTING-1/4NPTX5/16, 90°BRS, BRBFITTING-1/4NPTX5/16, 90°BRS, BRB
-
45412374 HOSE-WATER, 3/4''X57.5''HOSE-WATER, 3/4''X57.5''
-
58450054-38 HOSEHOSE
-
58450054-42 HOSEHOSE
-
58450054-68 HOSEHOSE
-
58450054-150 HOSEHOSE
-
58450054-72 HOSEHOSE
-
67080476 CLAMP, HOSE, S.S.CLAMP, HOSE, S.S.
-
75431784 FITTING, TEEFITTING, TEE
-
87080476 CLAMP, HOSE, S.S.CLAMP, HOSE, S.S.
-
95412377 HOSE-WATER, 3/4-''S'', T-FIT/PIPEHOSE-WATER, 3/4-''S'', T-FIT/PIPE
-
107051008 THERMOSTAT, (143 F.)THERMOSTAT, (143 F.)
-
115432799 VALVE, POP-OFFVALVE, POP-OFF
-
125412014 GASKET-THERMOSTAT, 60DGASKET-THERMOSTAT, 60D
-
137042276 SPRING-COMPRESSION, 1200HO POPSPRING-COMPRESSION, 1200HO POP
-
147556174 WASHER-7/8X11/8X1/8, AL, ANODIZEWASHER-7/8X11/8X1/8, AL, ANODIZE
-
155410860 SEAL, O-RING/THERMO/FITTINGSEAL, O-RING/THERMO/FITTING
-
165631136 COVER-THERMOSTAT, HFCOVER-THERMOSTAT, HF
-
177052156 FITTING, 1/4''HOSEFITTING, 1/4''HOSE
-
187080464 ANCHOR, CABLE TIEANCHOR, CABLE TIE
-
197080138 CABLE TIECABLE TIE
-
207080492 CABLE TIE, 11 INCHCABLE TIE, 11 INCH
-
215521398-60 CONDUIT, FLEX (.75"ID)CONDUIT, FLEX (.75"ID)
-
225521286-25 CONDUIT, WIRE, 2.5CMCONDUIT, WIRE, 2.5CM
-
238360011-34 CONVOLUTE TUBING-3/4''ID, 34CMCONVOLUTE TUBING-3/4''ID, 34CM
-
247080598 CABLE TIE, 21.25 INCHCABLE TIE, 21.25 INCH
-
255521287-20 CONDUIT, FLEX, 1.250IDCONDUIT, FLEX, 1.250ID
-
255521287-117 CONDUIT, FLEX, 1.250IDCONDUIT, FLEX, 1.250ID
-
267052340 FITTING-''T'', 5/16FITTING-''T'', 5/16
-
275412376 HOSE-WATER, 3/4X8CMHOSE-WATER, 3/4X8CM
