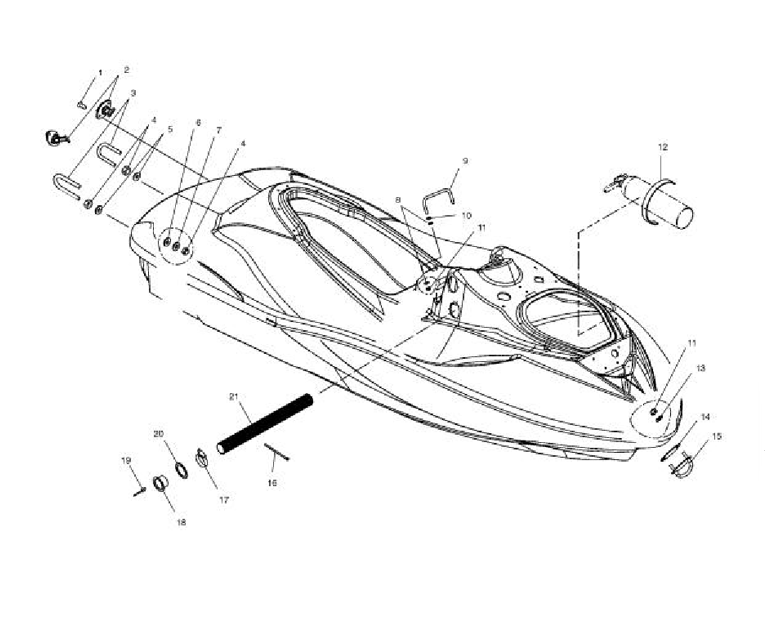

FUEL TANK для Polaris MSX 140 (IB) - 2003 года выпуска
-
№АртикулНазвание
-
15433259 NUTNUT
-
22410129 PUMP, FUEL, ELECTRICPUMP, FUEL, ELECTRIC
-
35411636 GASKETGASKET
-
45412305 STRAP, CONNECTINGSTRAP, CONNECTING
-
55812444 PAD-EVA, 2.5X3.5X.22PAD-EVA, 2.5X3.5X.22
-
65434872 TANK-FUEL, LTR, W/RELIEF, DFITANK-FUEL, LTR, W/RELIEF, DFI
-
75521615 COVER, STRAPCOVER, STRAP
-
85434786 ASM-STRAPASM-STRAP
-
95247361 BRKT-TANK STRAP, 30°BRKT-TANK STRAP, 30°
-
107621485 RIVETRIVET
-
115812152 PAD-EVA, 26''X5''X.22PAD-EVA, 26''X5''X.22
-
127555837 WASHER, FLAT, S.S.WASHER, FLAT, S.S.
-
137080451 CLAMP, HOSE, S.S.CLAMP, HOSE, S.S.
-
145412441 HOSE-FUEL, FILLHOSE-FUEL, FILL
-
157080766 CLAMP, HOSE, SS.CLAMP, HOSE, SS.
-
165812421 GASKET-FUEL FILL, NITRILEGASKET-FUEL FILL, NITRILE
-
175433553 INLET, FUELINLET, FUEL
-
187511873 SCREWSCREW
-
195411305 SEAL, FUEL CAPSEAL, FUEL CAP
-
202520177 ASM., CAP, FUEL, RATCHETASM., CAP, FUEL, RATCHET
-
217080710 CHAIN, BEADCHAIN, BEAD
-
227080442 COUPLING, ENDCOUPLING, END
-
237621229 RIVETRIVET
-
245433621 NUT, INLET, FUELNUT, INLET, FUEL
