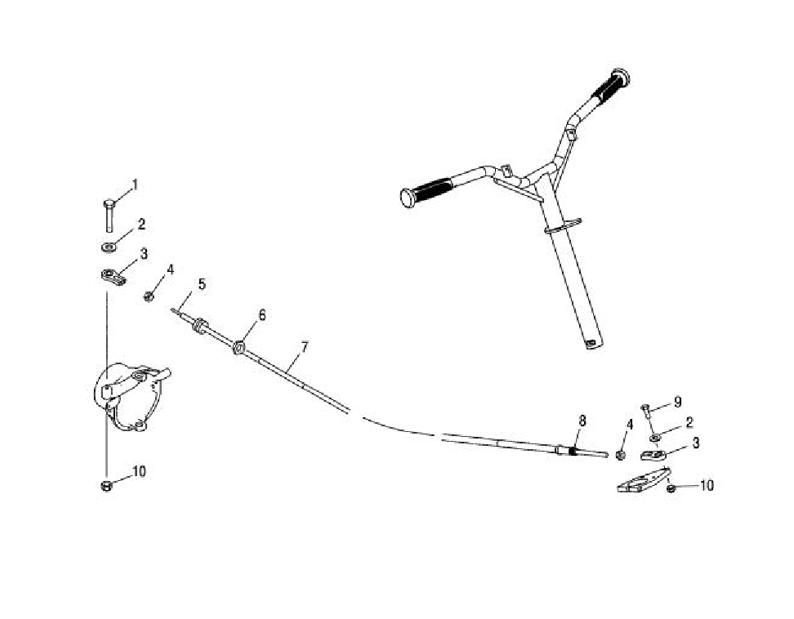

HANDLEBAR W/ COVER для Polaris GENESIS I (CA) - 2004 года выпуска
-
№АртикулНазвание
-
17517717 SCR-M6 X 1.0 X 12 PH/PAN HDSCR-M6 X 1.0 X 12 PH/PAN HD
-
27552613 WASHER, LOCKWASHER, LOCK
-
37555836 WASHERWASHER
-
45433901-070 PAD-HANDLEBAR, TOP, BLACKPAD-HANDLEBAR, TOP, BLACK
-
55433899-070 PAD-HANDLEBAR, BOTTOM, BLACKPAD-HANDLEBAR, BOTTOM, BLACK
-
67517660 SCREWSCREW
-
75631017 CLAMP-HANDLEBAR, W/PINCLAMP-HANDLEBAR, W/PIN
-
85433355-070 HANDLE-GRAB, BLACKHANDLE-GRAB, BLACK
-
95433081 BLOCK-THROTTLE, SPLITBLOCK-THROTTLE, SPLIT
-
107081021 CABLE-THROTTLE W/THICK NECKCABLE-THROTTLE W/THICK NECK
-
112410238 SWITCH-STOP/BILGE/RVSSWITCH-STOP/BILGE/RVS
-
127080675 LANYARD, W/WHISTLELANYARD, W/WHISTLE
-
131820994-070 ASM-HANDLEBAR, W/GRIP, BLACKASM-HANDLEBAR, W/GRIP, BLACK
-
147080483 CABLE TIE, 4 INCHCABLE TIE, 4 INCH
-
155133395 COLUMN-STEERING, W/PIN, 1/4''COLUMN-STEERING, W/PIN, 1/4''
-
165433136 STEERING HOUSINGSTEERING HOUSING
-
175433135 BEARING, STEERINGBEARING, STEERING
-
187542335 NUT, HEXNUT, HEX
-
197555831 WASHER, FLATWASHER, FLAT
-
205811551 GASKET, HSG, STRNG.GASKET, HSG, STRNG.
-
217080138 CABLE TIECABLE TIE
-
227517787 SCR, #12-16 X 3/4SCR, #12-16 X 3/4
-
235433737 CLAMP, BLOCK, THRTL, NO TAPCLAMP, BLOCK, THRTL, NO TAP
-
247710426 RING, RETAINING, EXT.RING, RETAINING, EXT.
-
257555840 WASHER, FLATWASHER, FLAT
-
265433079 LEVER-THROTTLE, THUMBLEVER-THROTTLE, THUMB
-
277661053 PIN, RETAININGPIN, RETAINING
-
287621478 RIVETRIVET
-
297661099 PIN, ROLL, 3/16 X 1.25PIN, ROLL, 3/16 X 1.25
