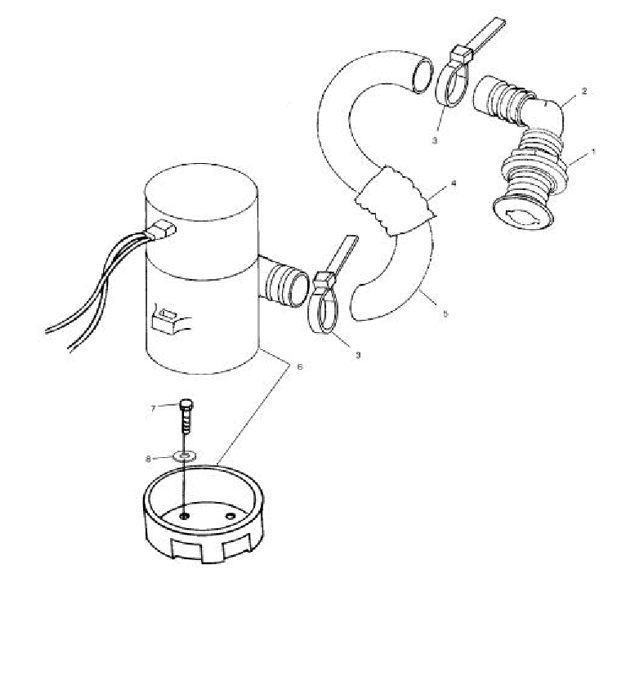

BILGE PUMP для Polaris GENESIS I (IA) - 2004 года выпуска
-
№АртикулНазвание
-
15812237 GASKET-1.57OD X 1.02ID X .10, BUNAGASKET-1.57OD X 1.02ID X .10, BUNA
-
25434149-133 FITTING-THRU HULL, 90 DEG, WHTFITTING-THRU HULL, 90 DEG, WHT
-
37080138 CABLE TIECABLE TIE
-
45521287-63 CONDUIT,FLEX,1.250IDCONDUIT,FLEX,1.250ID
-
55412243 HOSE-3/4ID X 59.25INCHHOSE-3/4ID X 59.25INCH
-
62410169 BILGE, W/CONNECTOR, ASM.BILGE, W/CONNECTOR, ASM.
-
77517241 SCREWSCREW
-
87555837 WASHER, FLATWASHER, FLAT
