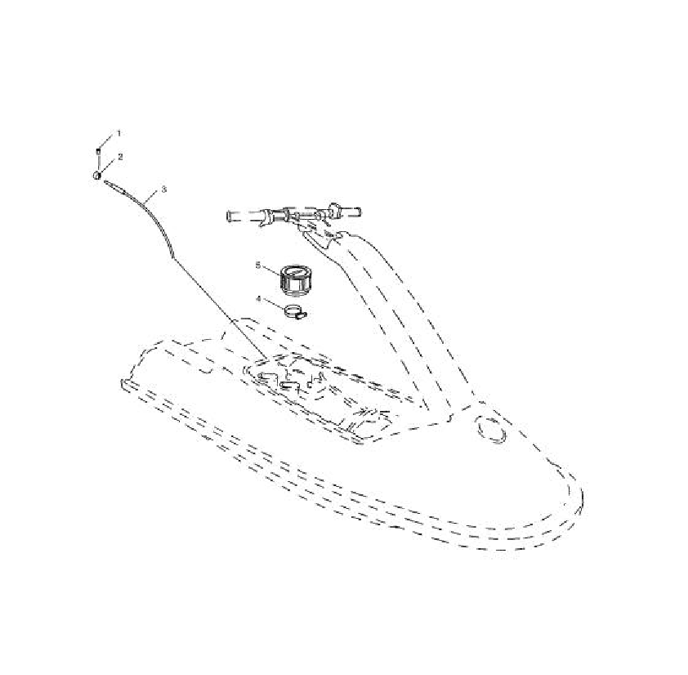

FUEL SYSTEM для Polaris MSX 110 (CB) - 2004 года выпуска
-
№АртикулНазвание
-
17080476 CLAMP, HOSE, S.S.CLAMP, HOSE, S.S.
-
27052358 CONNECTOR-QUICK FUEL RETURNCONNECTOR-QUICK FUEL RETURN
-
35410682 GROMMET, VENTGROMMET, VENT
-
47080483 CABLE TIE, 4 INCHCABLE TIE, 4 INCH
-
57080138 CABLE TIECABLE TIE
-
67052118 VALVE, VACUUM CHECKVALVE, VACUUM CHECK
-
78450104-250 FUEL LINE-MARINE, 1/4'', 250CM RDFUEL LINE-MARINE, 1/4'', 250CM RD
-
87052111 FITTING, TEEFITTING, TEE
-
97051015 VALVE, CHECK, RELIEFVALVE, CHECK, RELIEF
-
107052253 ASM., CONNECTOR-3/8X5/16, 90, BNDYASM., CONNECTOR-3/8X5/16, 90, BNDY
-
117052355 FITTING-REDUCER, 5/16 TO 1/4FITTING-REDUCER, 5/16 TO 1/4
-
128450107-250 LINE, FUEL-MARINE, 5/16''250CM RDLINE, FUEL-MARINE, 5/16''250CM RD
-
137080482 T-CLIPT-CLIP
-
142520387 FILTER-FUEL, 10 MICRON, SSFILTER-FUEL, 10 MICRON, SS
-
157080598 CABLE TIE, 21.25 INCHCABLE TIE, 21.25 INCH
-
167621485 RIVETRIVET
-
175247983 BRACKET-FUEL FILTERBRACKET-FUEL FILTER
