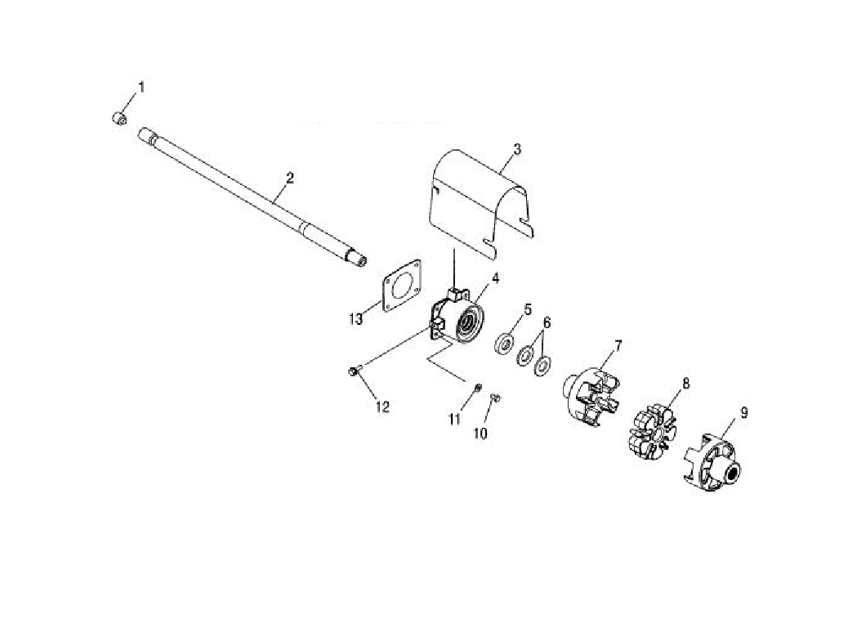

DRIVE SHAFT W/ COUPLER для Polaris OCTANE - 2004 года выпуска
-
№АртикулНазвание
-
27517717 SCR-M6X1.0X12 PH/PAN HD-SSSCR-M6X1.0X12 PH/PAN HD-SS
-
37552613 WASHER, LOCKWASHER, LOCK
-
45246722 SHROUD-COUPLER, PWCSHROUD-COUPLER, PWC
-
55410663 BUMPERBUMPER
-
66230254 SHAFT-DRIVESHAFT-DRIVE
-
75133521 COUPLER-DRIVESHAFTCOUPLER-DRIVESHAFT
-
85521605 CUSHION-RUBBER, DRIVECUSHION-RUBBER, DRIVE
-
95133522 COUPLER-PTOCOUPLER-PTO
-
107517668 SCREWSCREW
-
117556055 WASHER, LOCK, SS.WASHER, LOCK, SS.
-
127555835 WASHER, FLAT, S.S.,WASHER, FLAT, S.S.,
-
135631309 ASM-BEARING, HOUSING, DRIVESHAFTASM-BEARING, HOUSING, DRIVESHAFT
-
133514308 BEARING, BALL #6205BEARING, BALL #6205
-
133514419 SEAL-BEARING, CARRIERSEAL-BEARING, CARRIER
-
135132835 PIN-DOWEL, M6X10PIN-DOWEL, M6X10
-
135246587 RING-RETAININGRING-RETAINING
Все узлы модели:
- BATTERY BOX
- BILGE PUMP
- CARBURETOR
- COOLING
- CRANKCASE
- CRANKSHAFT W/ PISTON
- CYLINDER AND MANIFOLD
- DECALS
- • DRIVE SHAFT W/ COUPLER
- ELECTRICAL BOX
- ENGINE HOOD
- ENGINE MOUNT
- EXHAUST
- FLAME ARRESTOR
- FUEL SYSTEM VENTING
- FUEL TANK
- INTAKE GRATE W/ RIDE PLATE
- MAGNETO
- PROPULSION
- STARTING MOTOR
- STEERING CABLE ASSY.
- STEERING HANDLE POLE
- TOOL KIT
- TRIM AND BUMPER
