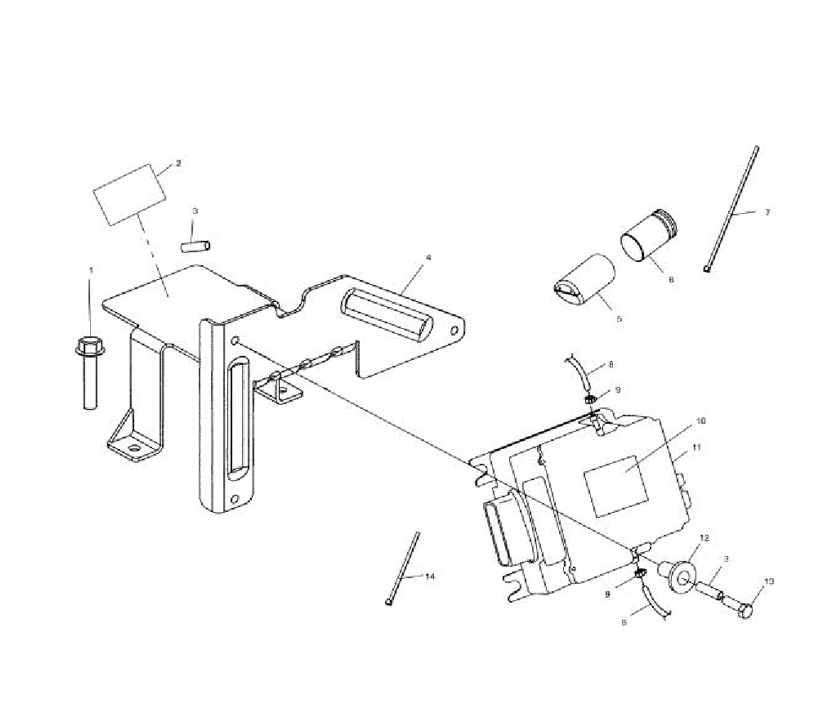

ELECTRICAL BOX для Polaris VIRAGE I (CA) - 2004 года выпуска
-
№АртикулНазвание
-
12461143 HARNESS-CHASSIS, VIRI, FUSEDHARNESS-CHASSIS, VIRI, FUSED
-
12461110 HARNESS, ENGINEHARNESS, ENGINE
-
24010669 CABLE-BATTERY/SOLENOID 12''CABLE-BATTERY/SOLENOID 12''
-
34010237 CABLE-SOLENOID/STARTERCABLE-SOLENOID/STARTER
-
44010906 START/STOP CONTROLLER LR503START/STOP CONTROLLER LR503
-
55521286-25 CONDUIT, WIRE, 2.5CMCONDUIT, WIRE, 2.5CM
-
67080464 ANCHOR, CABLE TIEANCHOR, CABLE TIE
-
75410346 INSUL.CABLE SOL.INSUL.CABLE SOL.
-
87081098 VELCRO-HOOK AND LOOP, 2" X 2'', PSAVELCRO-HOOK AND LOOP, 2" X 2'', PSA
-
95411598 BOOT-DFI CAPACITORBOOT-DFI CAPACITOR
-
104010198 HARNESS, ASM, 3 CYL FFIHARNESS, ASM, 3 CYL FFI
-
117080598 CABLE TIE, 21.25 INCHCABLE TIE, 21.25 INCH
-
127080492 CABLE TIE, 11 INCHCABLE TIE, 11 INCH
-
137080138 CABLE TIECABLE TIE
