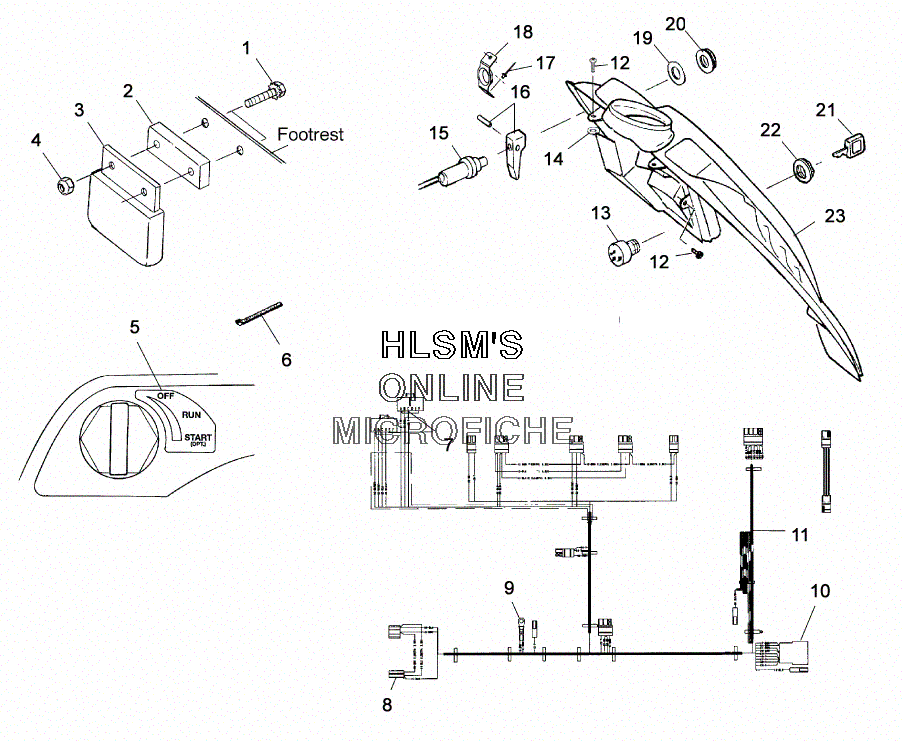

CONSOLE для Polaris 600 RMK (S00SR6DS) - 2000 года выпуска
-
№АртикулНазвание
-
17512031 BOLTBOLT
-
25211573 SPACER, REGULATORSPACER, REGULATOR
-
34060123 REGULATOR (14.3VAC) LR-7REGULATOR (14.3VAC) LR-7
-
47541925 NUTNUT
-
57078603 DECAL, IGN, OFF/RUN/STARTDECAL, IGN, OFF/RUN/START
-
67080138 STRAP PANDUITSTRAP PANDUIT
-
74010192 SOCKET-PACKARD #12047767SOCKET-PACKARD #12047767
-
84020063 HOUSINGHOUSING
-
94020092 TERMINAL, RINGTERMINAL, RING
-
104020057 HOUSING W/RECEPTACLEHOUSING W/RECEPTACLE
-
112460733 HARNESS-MAIN, GEN 2 COMMONHARNESS-MAIN, GEN 2 COMMON
-
127515199 SCREWSCREW
-
132200358 IGN.SWITCH KITIGN.SWITCH KIT
-
147555932 WASHER, NYLONWASHER, NYLON
-
157080636 CABLE, CHOKE (INCL. 16, 20)CABLE, CHOKE (INCL. 16, 20)
-
162200188 CHOKE CONTROL KITCHOKE CONTROL KIT
-
177621330 RIVET, POPRIVET, POP
-
185243049 GUIDE-RECOILGUIDE-RECOIL
-
197571610 WASHER-LOCKWASHER-LOCK
-
207080229 NUTNUT
-
215410611 KEY, IGNITION, W/CAP (SEE FOOTNOTE)KEY, IGNITION, W/CAP (SEE FOOTNOTE)
-
227547035 NUT, IGNITIONNUT, IGNITION
-
235433693 CONSOLE, HYB, RACER, BASICCONSOLE, HYB, RACER, BASIC
