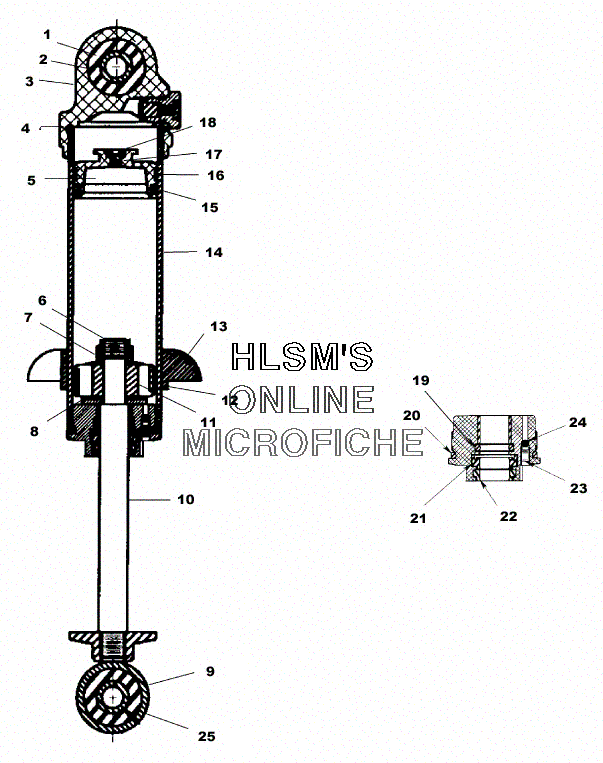

SUSPENSION - FOX SHOCK - FRONT TRACK для Polaris 600 XC SP (EV) (S00SP6ES) - 2000 года выпуска
-
№АртикулНазвание
-
11500182 BUSHING, EYELET (35X.575X.595)BUSHING, EYELET (35X.575X.595)
-
25020640 BUSHING (1.24)BUSHING (1.24)
-
31500183 BODY CAP, PROFILE (LOWER)BODY CAP, PROFILE (LOWER)
-
41500108 O-RING (103W) (1.549ID)O-RING (103W) (1.549ID)
-
51500011 PISTONPISTON
-
61500016 NUT, LOCKNUT, LOCK
-
71500015 BUSHING, BACKUPBUSHING, BACKUP
-
81500017 PLAT (TOP/OUTER)PLAT (TOP/OUTER)
-
91500164 EYELET, BASEEYELET, BASE
-
101500153 SHAFTSHAFT
-
112200618 VALVE PISTON KITVALVE PISTON KIT
-
121500002 DAMPER, PISTON RINGDAMPER, PISTON RING
-
131500194 RING, SPRING, PRELOADRING, SPRING, PRELOAD
-
141500299 BODYBODY
-
151500003 O-RING, ENDCAPO-RING, ENDCAP
-
161500006 RING, PISTON, FLOATINGRING, PISTON, FLOATING
-
171500022 O-RING, DRUM (OUTER)O-RING, DRUM (OUTER)
-
181500018 SCREWSCREW
-
191500021 O-RING (INNER)O-RING (INNER)
-
201500020 O-RING (.103W-1) (299ID)O-RING (.103W-1) (299ID)
-
211500025 U-CUP-4300 URETH, 036-01-006U-CUP-4300 URETH, 036-01-006
-
221500024 WIPER, CLR (OUTER)WIPER, CLR (OUTER)
-
231500070 SCREWSCREW
-
241500071 BALLBALL
-
251500184 BUSHING, EYELETBUSHING, EYELET
-
257041810 SHOCK, TRACK (XTRA 10) (FRONT)SHOCK, TRACK (XTRA 10) (FRONT)
