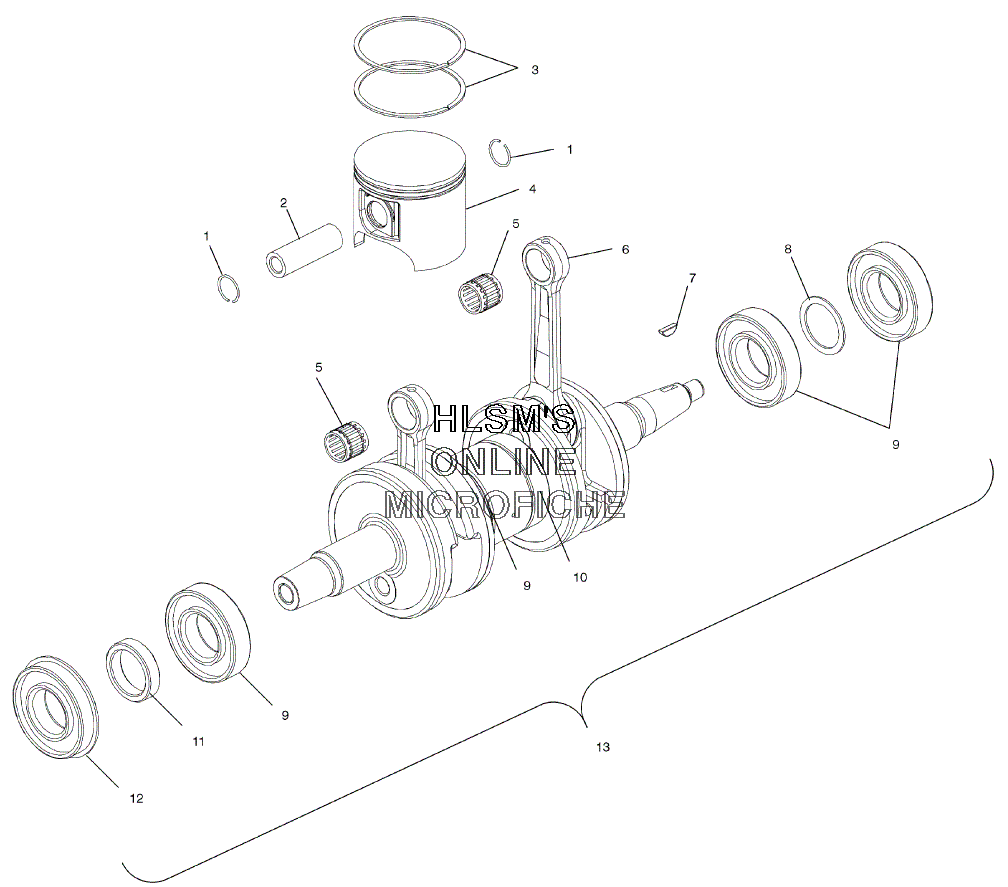

PISTON AND CRANKSHAFT для Polaris 700 XC SP (S00SP7AS) - 2000 года выпуска
-
№АртикулНазвание
-
13022950 CIRCLIP, PISTON (20MM)CIRCLIP, PISTON (20MM)
-
32200895 RINGS KIT (81MM)RINGS KIT (81MM)
-
42201358 PISTON ASSY. (INCL. 1, 2, 3)PISTON ASSY. (INCL. 1, 2, 3)
-
53584001 BEARING, CONNECTION RODBEARING, CONNECTION ROD
-
62201022 CONN.ROD KIT (MAPE) (INCL. ROD, PIN, BEARING, WASHERS)CONN.ROD KIT (MAPE) (INCL. ROD, PIN, BEARING, WASHERS)
-
77721117 KEY, WOODRUFFKEY, WOODRUFF
-
87555905 BUSHINGBUSHING
-
93585503 BEARING, BALLBEARING, BALL
-
103514318 BEARING, BALLBEARING, BALL
-
115131899 SPACER, CRANKSHAFTSPACER, CRANKSHAFT
-
123514310 BEARING, BALL EXTRACEBEARING, BALL EXTRACE
-
132201360 CRANKSHAFT, 2 CYLINDER (INCL. 8 12)CRANKSHAFT, 2 CYLINDER (INCL. 8 12)
Все узлы модели:
- BRAKE ASSEMBLY
- CARBURETOR ASSEMBLY
- CHAINCASE ASSEMBLY
- CLUTCH - DRIVE
- CLUTCH - DRIVEN
- CONSOLE
- COOLING SYSTEM
- CRANKCASE ASSEMBLY
- CYLINDER ASSEMBLY
- DECALS
- DRIVE TRAIN ASSEMBLY W/ DRIVE BELT
- ELECTRICAL - MAGNETO ASSEMBLY W/ COIL
- ENGINE MOUNTING W/ SHORT BLOCK
- EXHAUST SYSTEM
- HANDLEBAR ASSEMBLY
- HOOD - FOAM/FOIL
- HOOD ASSEMBLY W/ HEADLIGHT
- HOOD ASSEMBLY W/ WINDSHIELD
- NOSEPAN ASSEMBLY #1
- NOSEPAN ASSEMBLY #2
- OIL PUMP ASSEMBLY
- OIL TANK W/ AIR BOX ASSEMBLY
- • PISTON AND CRANKSHAFT
- RAIL ASSEMBLY W/ IDLER WHEELS #1
- RAIL ASSEMBLY W/ IDLER WHEELS #2
- SEAT W/ GAS TANK ASSEMBLY
- SKI ASSEMBLY
- STARTER - RECOIL ASSEMBLY
- STEERING ASSEMBLY
- SUSPENSION - FOX SHOCK - FRONT TRACK
- SUSPENSION - FOX SHOCK - GAS- REAR TRACK
- SUSPENSION - FOX SHOCK - IFS LEFT AND RIGHT HAND- FRONT
- SUSPENSION - FRONT
- SUSPENSION - FRONT TORQUE ARM ASSEMBLY
- SUSPENSION - REAR TORQUE ARM ASSEMBLY
- TOOL KIT
- TUNNEL ASSEMBLY
- WATER PUMP
