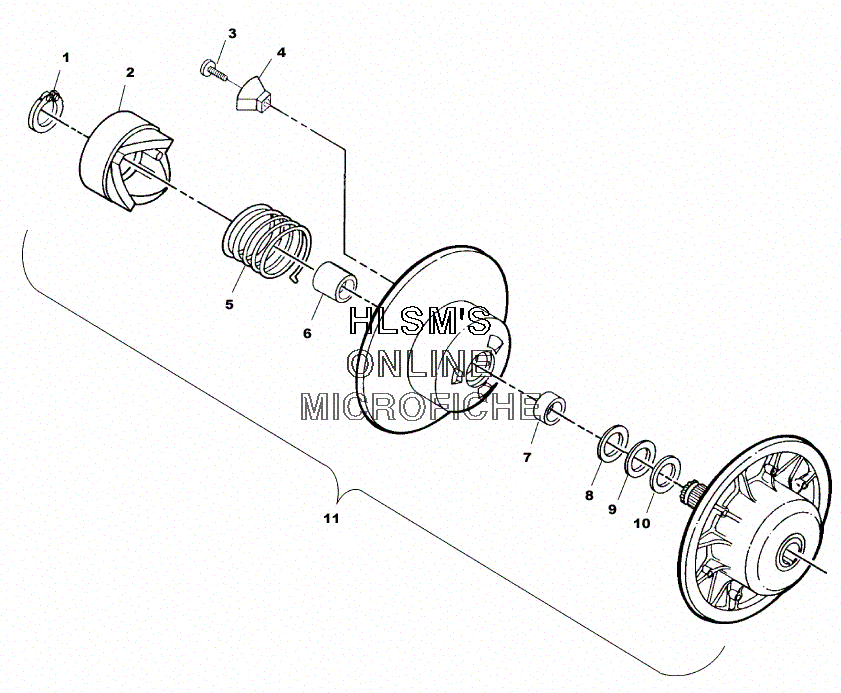

CLUTCH - DRIVEN для Polaris SPORT (LITE) (S00LB4AS) - 2000 года выпуска
-
№АртикулНазвание
-
17710423 RING, RETAININGRING, RETAINING
-
25630383 RAMP, STATIONARYRAMP, STATIONARY
-
37511854 BOLTBOLT
-
45430766 BUTTON, RAMPBUTTON, RAMP
-
57041782 SPRING, CLTCH, CHRM, SLCN, (BLACK), DRISPRING, CLTCH, CHRM, SLCN, (BLACK), DRI
-
63576511 BUSHINGBUSHING
-
73576504 BUSHING, DRIVENBUSHING, DRIVEN
-
87556804 WASHER (.03)WASHER (.03)
-
97556076 WASHER (.025)WASHER (.025)
-
107555898 WASHER (.02)WASHER (.02)
-
111321816 CLUTCH, DRIVEN (INCL. 1, 10)CLUTCH, DRIVEN (INCL. 1, 10)
Все узлы модели:
- BRAKE ASSEMBLY
- CARBURETOR ASSEMBLY
- CHAINCASE ASSEMBLY
- CLUTCH - DRIVE
- • CLUTCH - DRIVEN
- CRANKCASE ASSEMBLY
- CYLINDER ASSEMBLY
- DECALS
- DRIVE TRAIN ASSEMBLY W/ DRIVE BELT
- ELECTRICAL - MAGNETO ASSEMBLY W/ COIL
- ENGINE MOUNTING W/ SHORT BLOCK
- EXHAUST SYSTEM
- FUEL PUMP
- HOOD - FOAM/FOIL
- HOOD ASSEMBLY W/ WINDSHIELD - HEADLIGHT
- NOSEPAN AND CONSOLE ASSEMBLY
- OIL PUMP ASSEMBLY
- OIL TANK W/ AIR BOX ASSEMBLY
- PISTON AND CRANKSHAFT
- RAIL ASSEMBLY W/ IDLER WHEELS #1
- RAIL ASSEMBLY W/ IDLER WHEELS #2
- SEAT W/ TUNNEL ASSEMBLY
- STARTER - RECOIL ASSEMBLY W/ BLOWER HOUSING
- STEERING ASSEMBLY W/ HANDLEBAR ASSEMBLY
- SUSPENSION - FRONT TORQUE ARM ASSEMBLY
- SUSPENSION - FRONT W/ SKI
- SUSPENSION - REAR TORQUE ARM ASSEMBLY
- TOOL KIT
