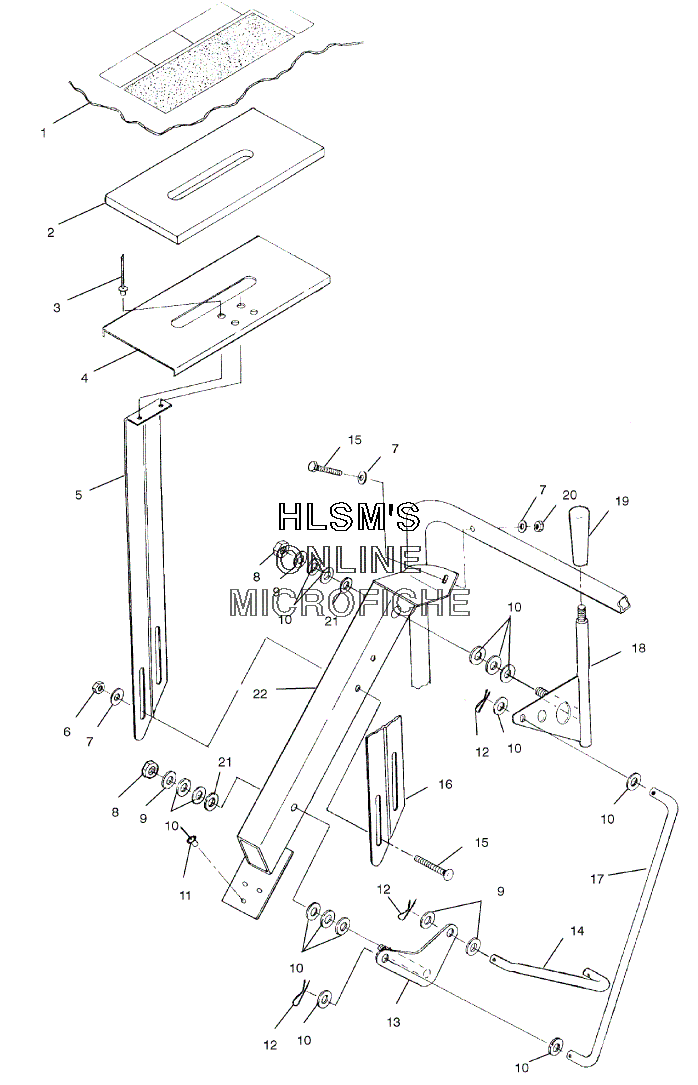

SHIFT LINKAGE для Polaris WIDETRAK LX (S00SU4BS) - 2000 года выпуска
-
№АртикулНазвание
-
17077619 DECAL, SHIFT PATTERNDECAL, SHIFT PATTERN
-
25811768 FOAM, INDICATOR PLATEFOAM, INDICATOR PLATE
-
37621429 RIVETRIVET
-
45243204 PLATE, INDICATORPLATE, INDICATOR
-
55241897 SUPPORT, INDICATOR PLATE (RIGHT)SUPPORT, INDICATOR PLATE (RIGHT)
-
67542101 NUT, HEX-LOCKNUT, HEX-LOCK
-
77558301 WASHERWASHER
-
87542324 NUTNUT
-
97558402 WASHER, STEELWASHER, STEEL
-
107555820 WASHERWASHER
-
117661637 RIVET, INTERLOCK ZRIVET, INTERLOCK Z
-
127661203 PIN, COTTERPIN, COTTER
-
131012558 PLATE, PIVOT (LOWER)PLATE, PIVOT (LOWER)
-
145224770 ROD, LINKAGE (LOWER)ROD, LINKAGE (LOWER)
-
157512262 BOLT, CARRIAGEBOLT, CARRIAGE
-
165241896 SUPPORT, INDICATOR PLATE (LEFT)SUPPORT, INDICATOR PLATE (LEFT)
-
175224769 ROD, LINKAGE (UPPER)ROD, LINKAGE (UPPER)
-
181341250 ROD, SHIFT LEVERROD, SHIFT LEVER
-
195132004 HANDLE, SHIFTHANDLE, SHIFT
-
207542122 NUT, LOCKNUT, LOCK
-
217571619 WASHER, WAVEWASHER, WAVE
-
221012559 SUPPORT, SHIFT LEVER RODSUPPORT, SHIFT LEVER ROD
