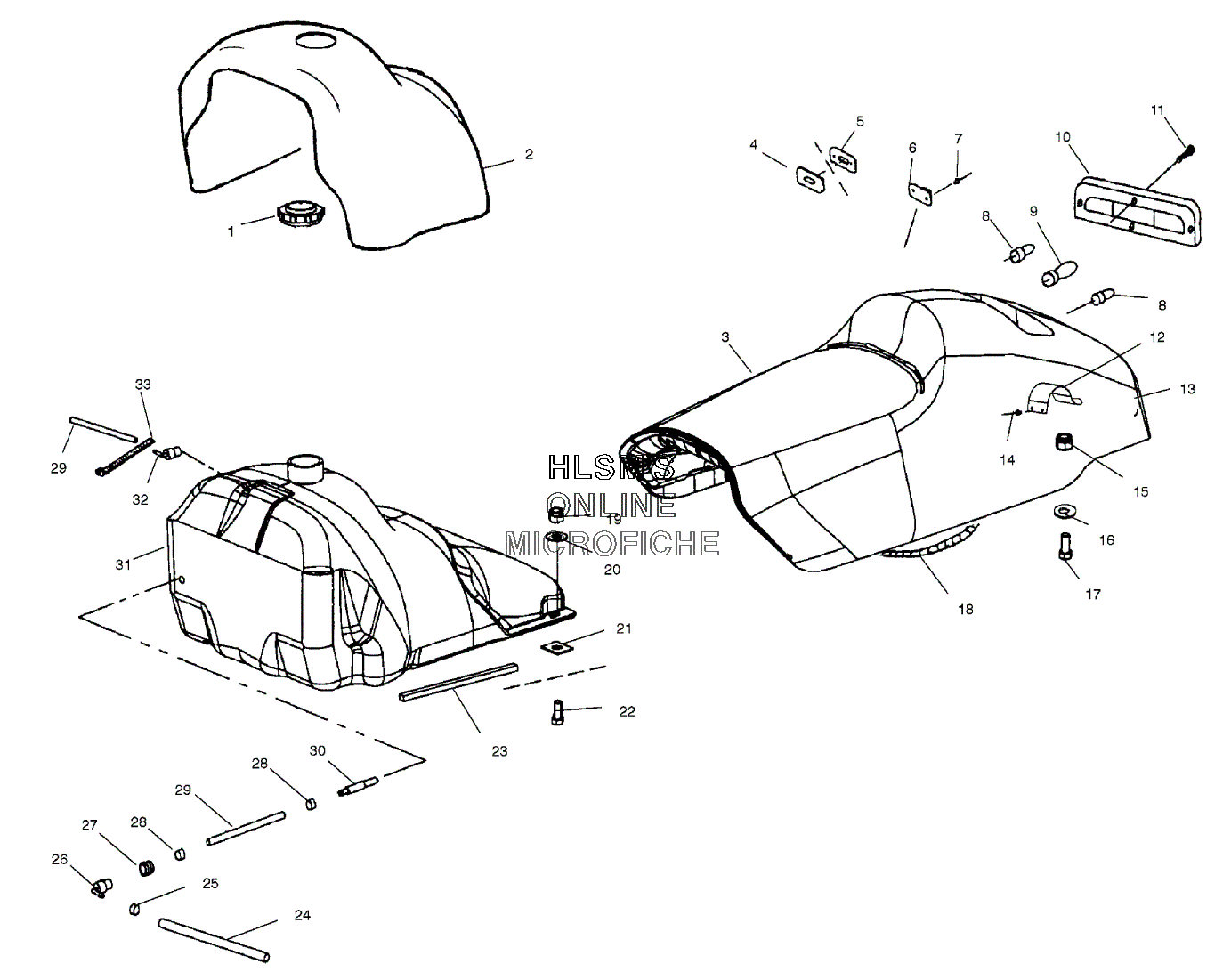

SEAT W/ GAS TANK ASSEMBLY для Polaris 440 PRO X (S01NX4CS) - 2001 года выпуска
-
№АртикулНазвание
-
12511195-070 CAP ASSY., FUEL, (BLACK)CAP ASSY., FUEL, (BLACK)
-
22682821 ASSY., TANK COVER, EDGEASSY., TANK COVER, EDGE
-
32682704 SEAT, ASSY. EDGE RACERSEAT, ASSY. EDGE RACER
-
32682703 ASSY., SEAT COVER, EDGE RACER, SVCASSY., SEAT COVER, EDGE RACER, SVC
-
47080550 GROMMET, RELATCH, (1'', BOTT.)GROMMET, RELATCH, (1'', BOTT.)
-
57080549 GROMMET, RELATCH, (1'', TOP)GROMMET, RELATCH, (1'', TOP)
-
67080548 TWISTLOCK, RELATCH, (1'', W/HOLE)TWISTLOCK, RELATCH, (1'', W/HOLE)
-
77621337 RIVETRIVET
-
84030024 BULB, TAILLIGHTBULB, TAILLIGHT
-
94030045 BULB, BRAKELIGHTBULB, BRAKELIGHT
-
105430423 LENS, TAILLIGHTLENS, TAILLIGHT
-
117511840 SCREWSCREW
-
125243185 RETAINER, CLIP, TOOL POUCHRETAINER, CLIP, TOOL POUCH
-
135433341 HOUSING, TAILLIGHTHOUSING, TAILLIGHT
-
147621472 RIVETRIVET
-
157547114 NUT, WELD, (TAB 1/4, 20T, L0K)NUT, WELD, (TAB 1/4, 20T, L0K)
-
167558301 WASHERWASHER
-
177515159 SCREWSCREW
-
182460399 HARNESS, TAILLIGHTHARNESS, TAILLIGHT
-
197542122 NUT, LOCKNUT, LOCK
-
207555960 WASHERWASHER
-
217670021 SPEED NUTSPEED NUT
-
227512193 BOLTBOLT
-
235810063 PAD, GAS TANKPAD, GAS TANK
-
248350018 TUBING, ETHER ERETHNE, (160CM, SVC)TUBING, ETHER ERETHNE, (160CM, SVC)
-
257080307 CLAMPCLAMP
-
267052259 FITTING, (1/4'' 90Ш DEX)FITTING, (1/4'' 90Ш DEX)
-
277052028 GROMMET, TANK FITTINGGROMMET, TANK FITTING
-
287080402 RING, COMPRESSIONRING, COMPRESSION
-
298350019-160 FUEL LINE, ESTERFUEL LINE, ESTER
-
307052243 FUEL PICKUP, W/FILTERFUEL PICKUP, W/FILTER
-
312520267 FUEL TANK ASSY., EDGE TRANSLUCENTFUEL TANK ASSY., EDGE TRANSLUCENT
-
327052095 FITTING, (90 DEG, 1/8)FITTING, (90 DEG, 1/8)
-
337080804 CABLE TIE, RELEASABLE, (5 1/2'')CABLE TIE, RELEASABLE, (5 1/2'')
