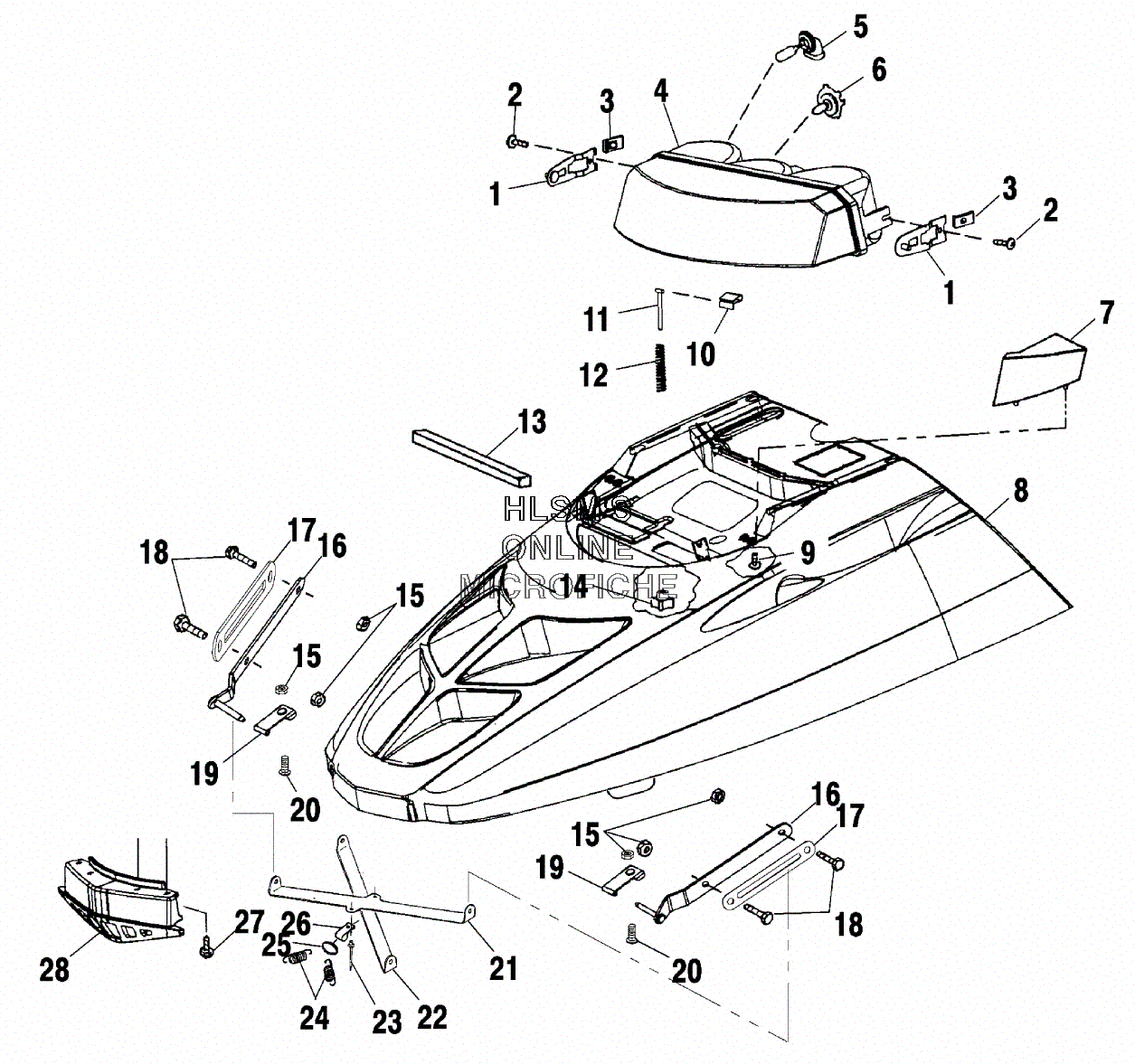

HOOD ASSEMBLY W/ HEADLIGHT для Polaris 500 RMK 136'' (S01SR5AS) - 2001 года выпуска
-
№АртикулНазвание
-
11011944-067 MOUNT, WELD HEADLIGHTSMOUNT, WELD HEADLIGHTS
-
27515107 BOLTBOLT
-
37670057 NUT, SPEEDNUT, SPEED
-
42433016 ASSY.-HEADLAMP, THREE BULB (INCL. BULBS)ASSY.-HEADLAMP, THREE BULB (INCL. BULBS)
-
54010253 BULB-HEADLIGHT, 50 WATTBULB-HEADLIGHT, 50 WATT
-
62870448 BULB, QUARTZ. HEADLIGHTS INDYBULB, QUARTZ. HEADLIGHTS INDY
-
75431855 LENS, CLR.REFLECTOR (LEFT)LENS, CLR.REFLECTOR (LEFT)
-
75431856 LENS, CLR.REFLECTOR (RIGHT)LENS, CLR.REFLECTOR (RIGHT)
-
82632181-246 HOOD, ASSY., HYB, SVC, RIGEL BL (INCL. FOAM/FOIL)HOOD, ASSY., HYB, SVC, RIGEL BL (INCL. FOAM/FOIL)
-
97511953 SCREWSCREW
-
107670040 CLIP-U TYPECLIP-U TYPE
-
117517746 BOLT, TEE ADJUSTUSTER, 2.25BOLT, TEE ADJUSTUSTER, 2.25
-
127041308 SPRING, HEADLIGHTS ADJUSTSPRING, HEADLIGHTS ADJUST
-
135811687 FOAM HEADLIGHT SEAL W/PSAFOAM HEADLIGHT SEAL W/PSA
-
147080887 KNOB, HEADLIGHT, ADJUST, LOCKINGBKNOB, HEADLIGHT, ADJUST, LOCKINGB
-
157542122 NUT, LOCKNUT, LOCK
-
161012750 HINGE, (LEFT/UPPER)HINGE, (LEFT/UPPER)
-
161012751 HINGE, (RIGHT/UPPER)HINGE, (RIGHT/UPPER)
-
175242948 PLATE, BOLTPLATE, BOLT
-
187515184 BOLTBOLT
-
195244395 PLATE, HINGE (LOWER)PLATE, HINGE (LOWER)
-
207512193 BOLTBOLT
-
215242945 BRACE, HOOD (UPPER)BRACE, HOOD (UPPER)
-
225242946 BRACE, HOOD (LOWER)BRACE, HOOD (LOWER)
-
237661637 RIVET, INTERLOCK, ZRIVET, INTERLOCK, Z
-
247041732 SPRING-EXT.SPRING-EXT.
-
257041760 SPRING, ATTACHMENT RINGSPRING, ATTACHMENT RING
-
267080372 CLAMP, RETAINERCLAMP, RETAINER
-
277517441 SCREWSCREW
-
285432931 SCREEN, HYB (FRONT)SCREEN, HYB (FRONT)
