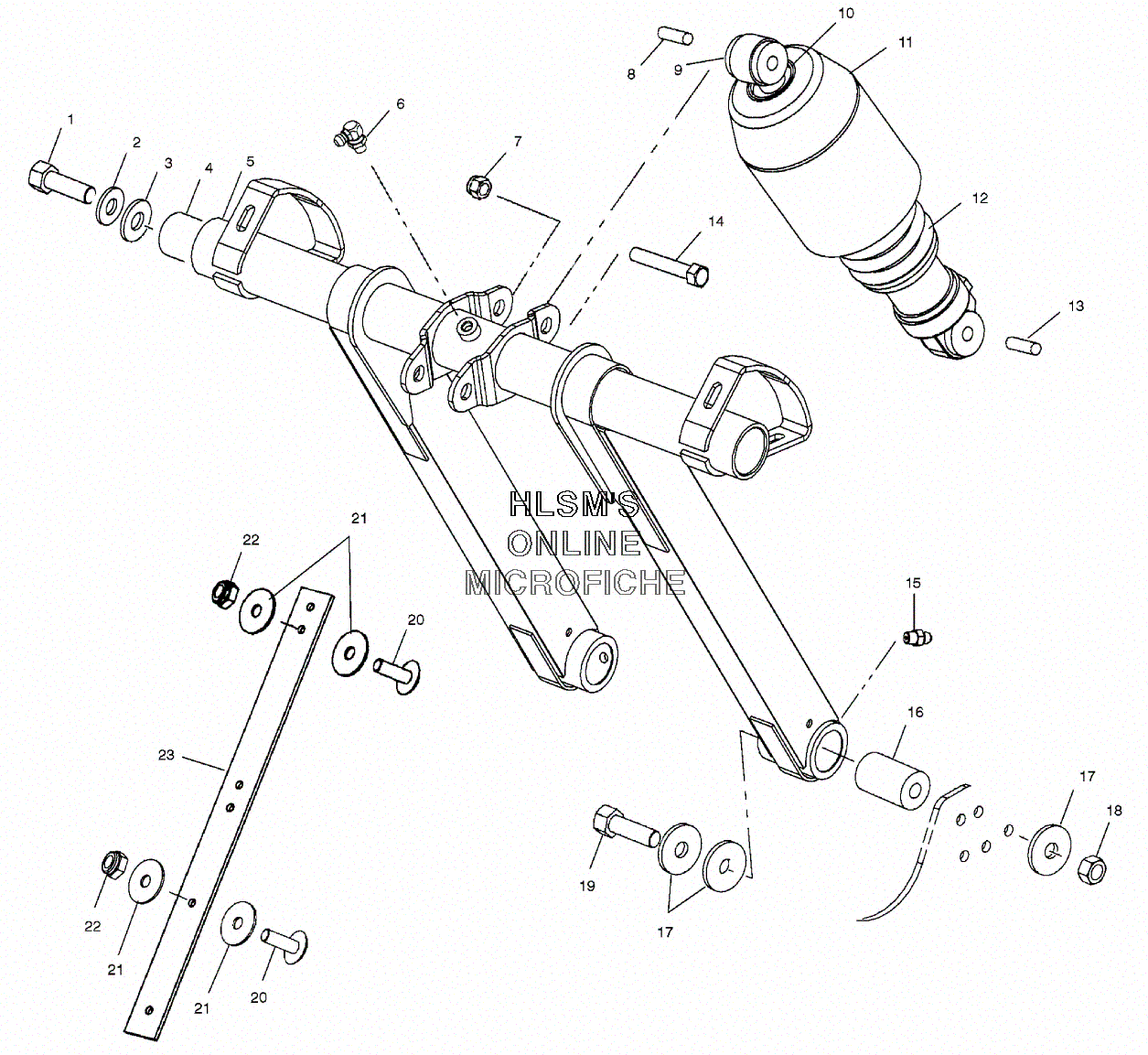

SUSPENSION - FRONT TORQUE ARM ASSEMBLY для Polaris 500 XC SP (BLACK) (S01NP5CSA) - 2001 года выпуска
-
№АртикулНазвание
-
17517435 BOLTBOLT
-
27552603 WASHERWASHER
-
37555893 WASHERWASHER
-
45132067 SHAFT-FTA (UPPER)SHAFT-FTA (UPPER)
-
51541532-293 WELD TORQUE ARM, EDGE (RED/FRONT)WELD TORQUE ARM, EDGE (RED/FRONT)
-
67080510 FITTING, ZERKFITTING, ZERK
-
77542439 NUT, NYLOKNUT, NYLOK
-
85333905 SLEEVE, .385X.560X1.24SLEEVE, .385X.560X1.24
-
97041847 SHOCK, TRACK (FRONT)SHOCK, TRACK (FRONT)
-
105020618 RETAINER, SPRING, SLOTTEDRETAINER, SPRING, SLOTTED
-
115433503 SHIELD, SPRING, 3.00SHIELD, SPRING, 3.00
-
127041914-067 SPRING, COMP, 150#/175# (BLACK)SPRING, COMP, 150#/175# (BLACK)
-
135333906 SLEEVE, .385X.560X1.72SLEEVE, .385X.560X1.72
-
147515415 BOLTBOLT
-
157080424 FITTING, LUBE.FITTING, LUBE.
-
165132387 SHAFT, .453X.999X1.60SHAFT, .453X.999X1.60
-
177556156 WASHERWASHER
-
187547066 NUT-7/16-20, NYLOK, YNUT-7/16-20, NYLOK, Y
-
197512597 BOLT-7/16-20X2.75, HXCAP, GR5, YBOLT-7/16-20X2.75, HXCAP, GR5, Y
-
207517313 SCREWSCREW
-
217556175 WASHERWASHER
-
227542344 NUT, NYLOCNUT, NYLOC
-
235411971 STRAP-LIM, (FRONT)STRAP-LIM, (FRONT)
