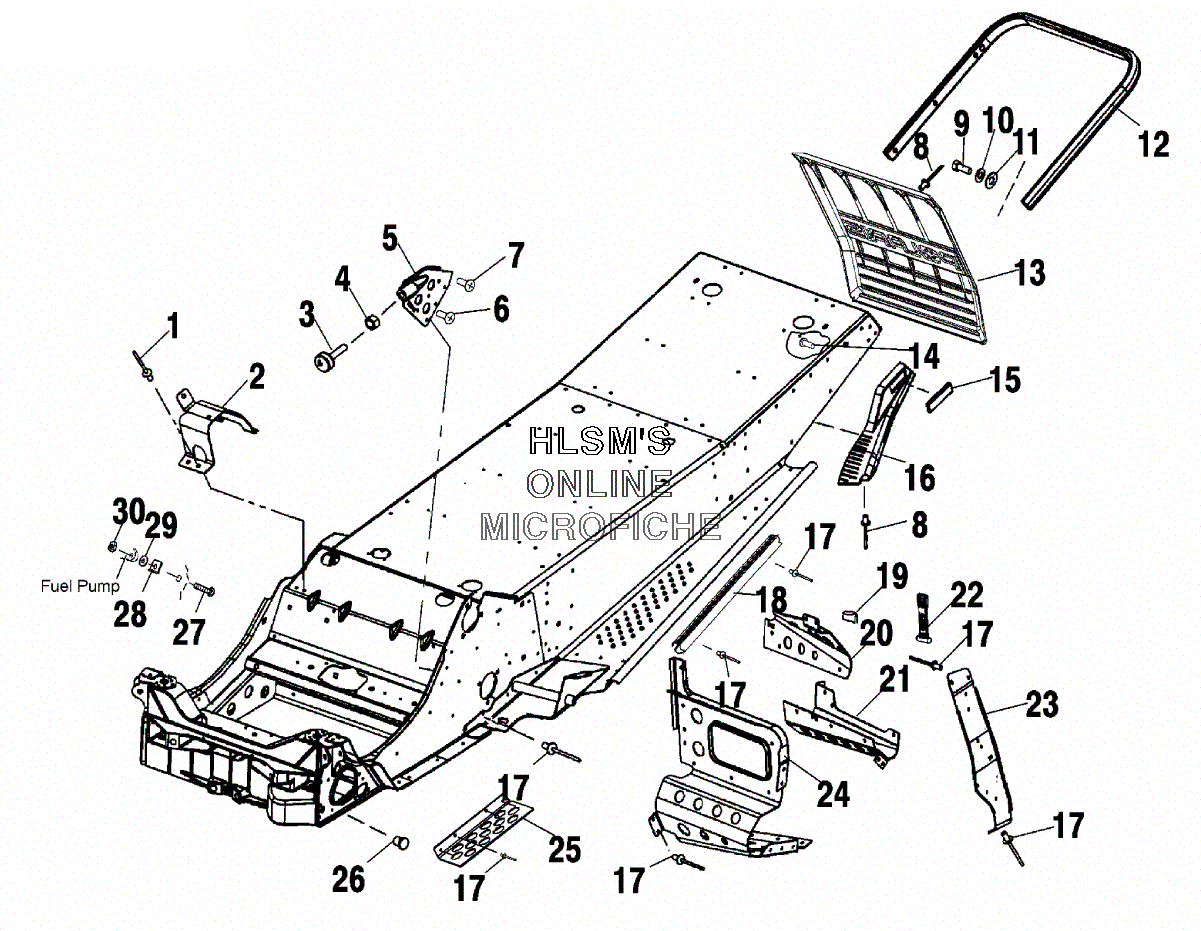

FRAME - CHASSIS для Polaris 500 XC SP (BLUE) (S01NP5CSB) - 2001 года выпуска
-
№АртикулНазвание
-
221013393-309 ASSY, CHASSIS, SVC, EDGE, NATURALASSY, CHASSIS, SVC, EDGE, NATURAL
-
17621453 RIVETRIVET
-
25245003 BRACKET, JACKSHAFT, SHIELDBRACKET, JACKSHAFT, SHIELD
-
33021104 STOP, TORQUE COURSE 3/8-16STOP, TORQUE COURSE 3/8-16
-
47542404 NUTNUT
-
51013379 WELD, TOQUE STOP, S44WELD, TOQUE STOP, S44
-
67517854 SCREWSCREW
-
77517632 SCREWSCREW
-
87621472 RIVETRIVET
-
97512240 BOLTBOLT
-
107552801 LOCK WASHERLOCK WASHER
-
117558301 WASHERWASHER
-
122632165-309 BUMPER (REAR)BUMPER (REAR)
-
135433521-1106 FLAP, SNOW, EDGE (BLACK W/CHROME)FLAP, SNOW, EDGE (BLACK W/CHROME)
-
147517441 SCREWSCREW
-
152670133 REFLECTOR ASSY (RED)REFLECTOR ASSY (RED)
-
165433519-070 SKIRT, SNOW EDGE (LEFT/BLACK)SKIRT, SNOW EDGE (LEFT/BLACK)
-
165433520-070 ASSY SNOWSKIRT/REFL (BLACK/RIGHT)ASSY SNOWSKIRT/REFL (BLACK/RIGHT)
-
177661637 RIVET, INTERLOCK, ZRIVET, INTERLOCK, Z
-
185245118 BRACE, TUNNEL ROLLBRACE, TUNNEL ROLL
-
195521238 EXTRUSION, CLUTCHGUARDEXTRUSION, CLUTCHGUARD
-
205243939 MOUNT, CONSOLE (LEFT)MOUNT, CONSOLE (LEFT)
-
205243940 MOUNT, CONSOLE (RIGHT)MOUNT, CONSOLE (RIGHT)
-
215243153 FOOTREST TOE CLIP (LEFT/UPPER)FOOTREST TOE CLIP (LEFT/UPPER)
-
215243154 FOOTREST TOE CLIP (RIGHT/UPPER)FOOTREST TOE CLIP (RIGHT/UPPER)
-
225433150 STRAP, RUBBERSTRAP, RUBBER
-
235242741 SUPPORT-FOOTREST (LEFT)SUPPORT-FOOTREST (LEFT)
-
235242742 SUPPORT-FOOTREST (RIGHT)SUPPORT-FOOTREST (RIGHT)
-
245245288 FOOTREST (LEFT)FOOTREST (LEFT)
-
245242740 FOOTREST (RIGHT)FOOTREST (RIGHT)
-
255245066 GUARD, BELT, EDGEGUARD, BELT, EDGE
-
267080416 PLUG, HOLEPLUG, HOLE
-
277512275 BOLT, CARRIAGEBOLT, CARRIAGE
-
287670021 SPEED NUTSPEED NUT
-
297555932 WASHER, NYLONWASHER, NYLON
-
307542122 NUT-LOCKNUT-LOCK
Все узлы модели:
- AIR BOX
- BRAKE ASSEMBLY
- CARBURETOR - FUEL LINES- MOUNTINGS AND LINKAGE
- CARBURETOR ASSEMBLY
- CHAINCASE ASSEMBLY
- CLUTCH - DRIVE
- CLUTCH - DRIVEN
- CONSOLE
- COOLING SYSTEM
- CRANKCASE ASSEMBLY
- CYLINDER ASSEMBLY
- DECALS
- DRIVE TRAIN ASSEMBLY W/ TRACK
- ELECTRICAL - MAGNETO ASSEMBLY W/ COIL
- ENGINE MOUNTING W/ SHORT BLOCK
- EXHAUST SYSTEM
- • FRAME - CHASSIS
- HANDLEBAR ASSEMBLY
- HOOD - FOAM/FOIL
- HOOD ASSEMBLY W/ HEADLIGHT
- HOOD ASSEMBLY W/ WINDSHIELD
- NOSEPAN ASSEMBLY #1
- NOSEPAN ASSEMBLY #2
- PISTON AND CRANKSHAFT
- RAIL ASSEMBLY W/ IDLER WHEELS
- SEAT W/ GAS TANK ASSEMBLY
- SKI ASSEMBLY
- STARTER - RECOIL ASSEMBLY
- STEERING ASSEMBLY
- SUSPENSION - FOX SHOCK - FRONT TRACK
- SUSPENSION - FOX SHOCK - GAS- REAR TRACK
- SUSPENSION - FOX SHOCK - IFS LEFT AND RIGHT HAND- FRONT
- SUSPENSION - FRONT
- SUSPENSION - FRONT TORQUE ARM ASSEMBLY
- SUSPENSION - RAIL MOUNTING
- SUSPENSION - REAR TORQUE ARM ASSEMBLY
- TOOL KIT
- WATER PUMP/OIL PUMP
