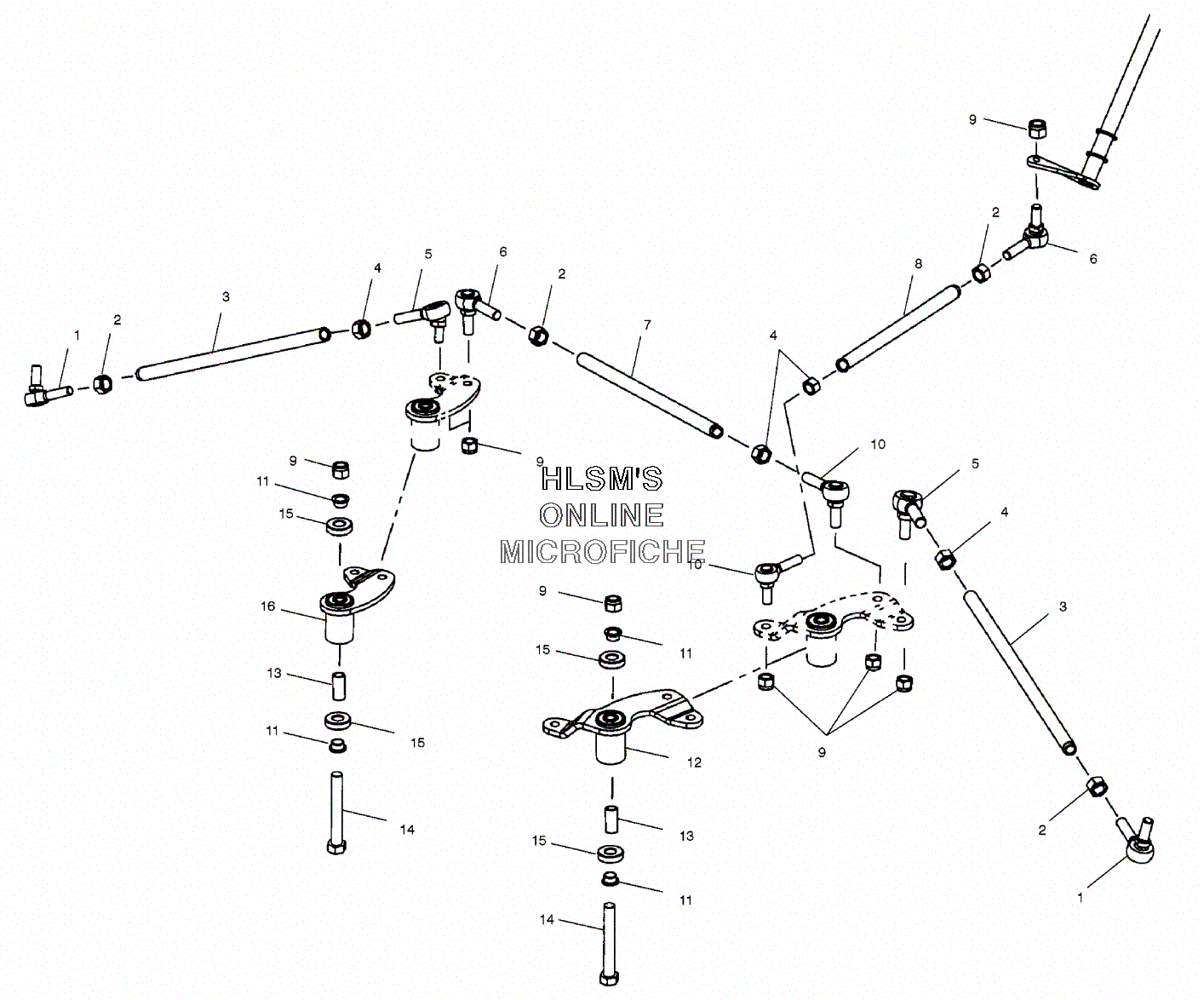

STEERING ASSEMBLY для Polaris 600 XC SP (BLUE) (S01NP6ESB) - 2001 года выпуска

№

Артикул

Название
1

7061057 ROD, END, (3/8, PL, 75Ш, 1.00) , (RIGHT)

ROD, END, (3/8, PL, 75Ш, 1.00) , (RIGHT)

9 780 ₽
2

7542401 NUT HEX

NUT HEX

110 ₽
3

5333949-246 ROD, TIE, (R BLU)

ROD, TIE, (R BLU)

6 660 ₽
4

7542424 NUT

NUT

150 ₽
5

7061055 ROD, END, (3/8, PL, 75Ш (LEFT) , 750 STUD)

ROD, END, (3/8, PL, 75Ш (LEFT) , 750 STUD)

9 780 ₽
6

7061076 ROD END, (3/8 (RIGHT) , HI, ANGLE, PR)

ROD END, (3/8 (RIGHT) , HI, ANGLE, PR)

9 780 ₽
7

5333772 STEERING ROD RACK, (11.50)

STEERING ROD RACK, (11.50)

6 660 ₽
8

5333773-067 ROD, DRAGLINK, (12.50, STEEL) , (BLACK)

ROD, DRAGLINK, (12.50, STEEL) , (BLACK)

4 790 ₽
9

7542439 NUT, NYLOK

NUT, NYLOK

110 ₽
10

7061075 ROD END, (3/8 (LEFT) , HI, ANGLE, PR)

ROD END, (3/8 (LEFT) , HI, ANGLE, PR)

9 780 ₽
11

5132106 BUSHING, REDUCER, (12MM TO .385)

BUSHING, REDUCER, (12MM TO .385)

1 730 ₽
12

1820957 ARM, PITMAN ARM, EDGE (INCL. 11, 13, 15)

ARM, PITMAN ARM, EDGE (INCL. 11, 13, 15)

33 280 ₽
13

5132495 SPACER, TUBE, PITMAN/IDLER ARMS

SPACER, TUBE, PITMAN/IDLER ARMS

880 ₽
14

7512435 BOLT

BOLT

250 ₽
15

3514320 BEARING, BALL, (600ILLU)

BEARING, BALL, (600ILLU)

3 750 ₽
16

1820959 IDLER ARM, EDGE ASSY., (INCL. 11, 13, 15)

IDLER ARM, EDGE ASSY., (INCL. 11, 13, 15)

30 160 ₽
