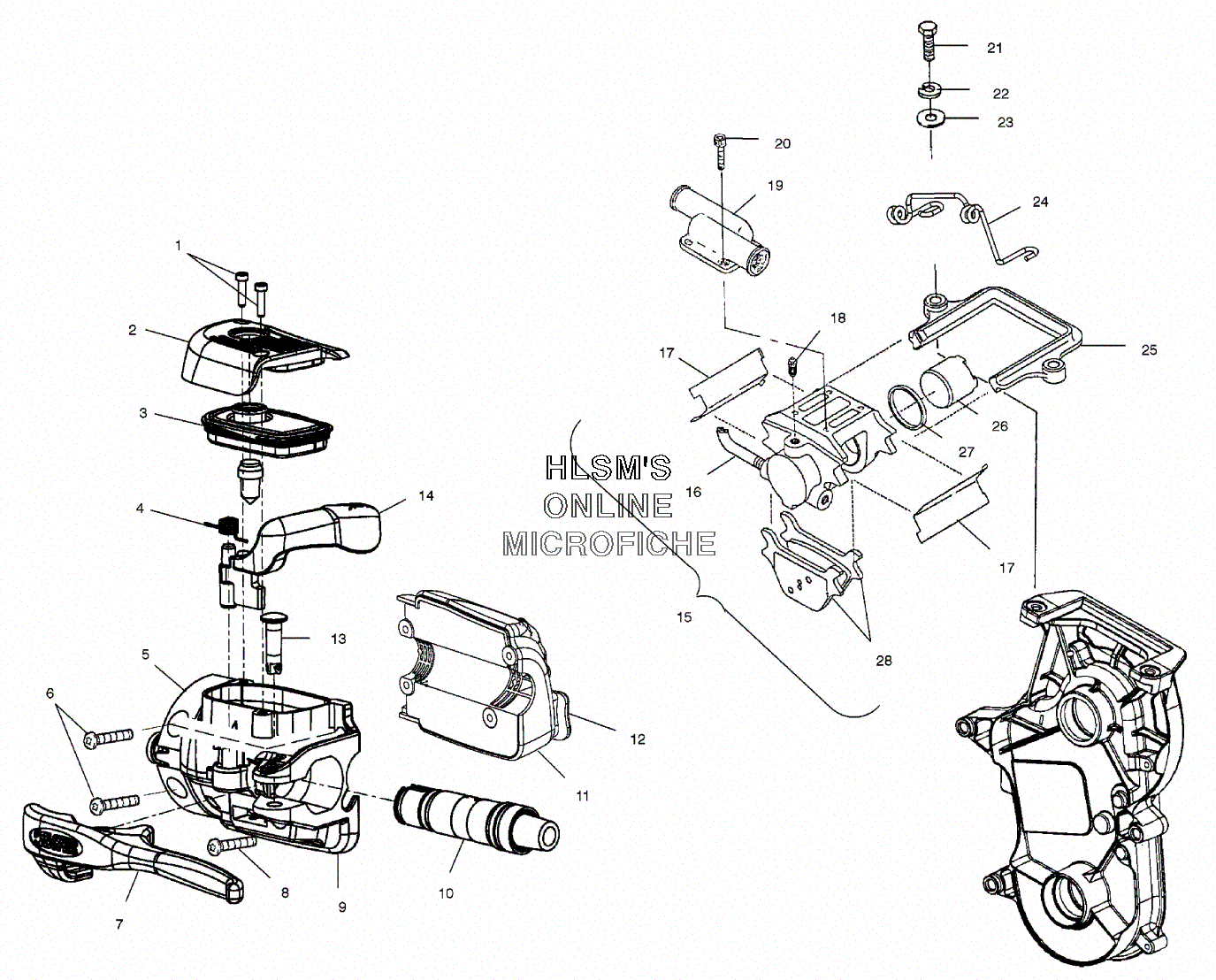

BRAKE ASSEMBLY для Polaris 600 XC SP (RED) (S01NP6ES) - 2001 года выпуска
-
№АртикулНазвание
-
12201254 COVER SCREW KIT, (HAYES)COVER SCREW KIT, (HAYES)
-
22201255 COVER ASSY., (HAYES) (INCL. 1, 3)COVER ASSY., (HAYES) (INCL. 1, 3)
-
42201250 PARKLEVER SPRING KITPARKLEVER SPRING KIT
-
52202146 MASTER CYLINDER ASSY., (HAYES) (INCL. 2, 4, 7, 9, 10, 13)MASTER CYLINDER ASSY., (HAYES) (INCL. 2, 4, 7, 9, 10, 13)
-
67517441 SCREWSCREW
-
72201943 LEVER KIT, 3 NOTCH/PIN/RINGLEVER KIT, 3 NOTCH/PIN/RING
-
87517566 SCREWSCREW
-
92202146 MASTER CYLINDER ASSY., (HAYES)MASTER CYLINDER ASSY., (HAYES)
-
94010157 SWITCH, BRAKE LIGHTSWITCH, BRAKE LIGHT
-
102201248 CARTRIDGE SUB, ASSY. (5/8'')CARTRIDGE SUB, ASSY. (5/8'')
-
112010167 CONTROL ASSY., (LEFT) , (BASIC)CONTROL ASSY., (LEFT) , (BASIC)
-
125433291 BUTTON SWITCH HI/LOBUTTON SWITCH HI/LO
-
132201946 PIVOT PIN KIT, (ALUM W/SNAP RING)PIVOT PIN KIT, (ALUM W/SNAP RING)
-
142201251 PARKLEVER AND SPRING KIT, (INCL. 4)PARKLEVER AND SPRING KIT, (INCL. 4)
-
151910344 BRAKE CALIPER, HD, LIQ, NOSW (INCL. 26, 27, 28)BRAKE CALIPER, HD, LIQ, NOSW (INCL. 26, 27, 28)
-
161910417 LINE, BRAKE, EDGELINE, BRAKE, EDGE
-
172200467 CLIP SPRING KIT, (QTY. 2)CLIP SPRING KIT, (QTY. 2)
-
181930735 INLET KITINLET KIT
-
191930728 COOLER, WATER, BRAKECOOLER, WATER, BRAKE
-
192201024 GASKET, BRK. COOLERGASKET, BRK. COOLER
-
201930729 SCREW SET (PKG. OF 4)SCREW SET (PKG. OF 4)
-
217515521 BOLTBOLT
-
227552603 WASHERWASHER
-
237555801 WASHERWASHER
-
245244413 GUIDE, ROPEGUIDE, ROPE
-
251930733 CALIPER BRACKET KITCALIPER BRACKET KIT
-
261930734 PISTON SEAL KIT, (INCL. 27)PISTON SEAL KIT, (INCL. 27)
-
272200466 SEALSEAL
-
282201430 BRAKE, PAD KIT, TYPE 81 (LARGE) (INCL. 17)BRAKE, PAD KIT, TYPE 81 (LARGE) (INCL. 17)
