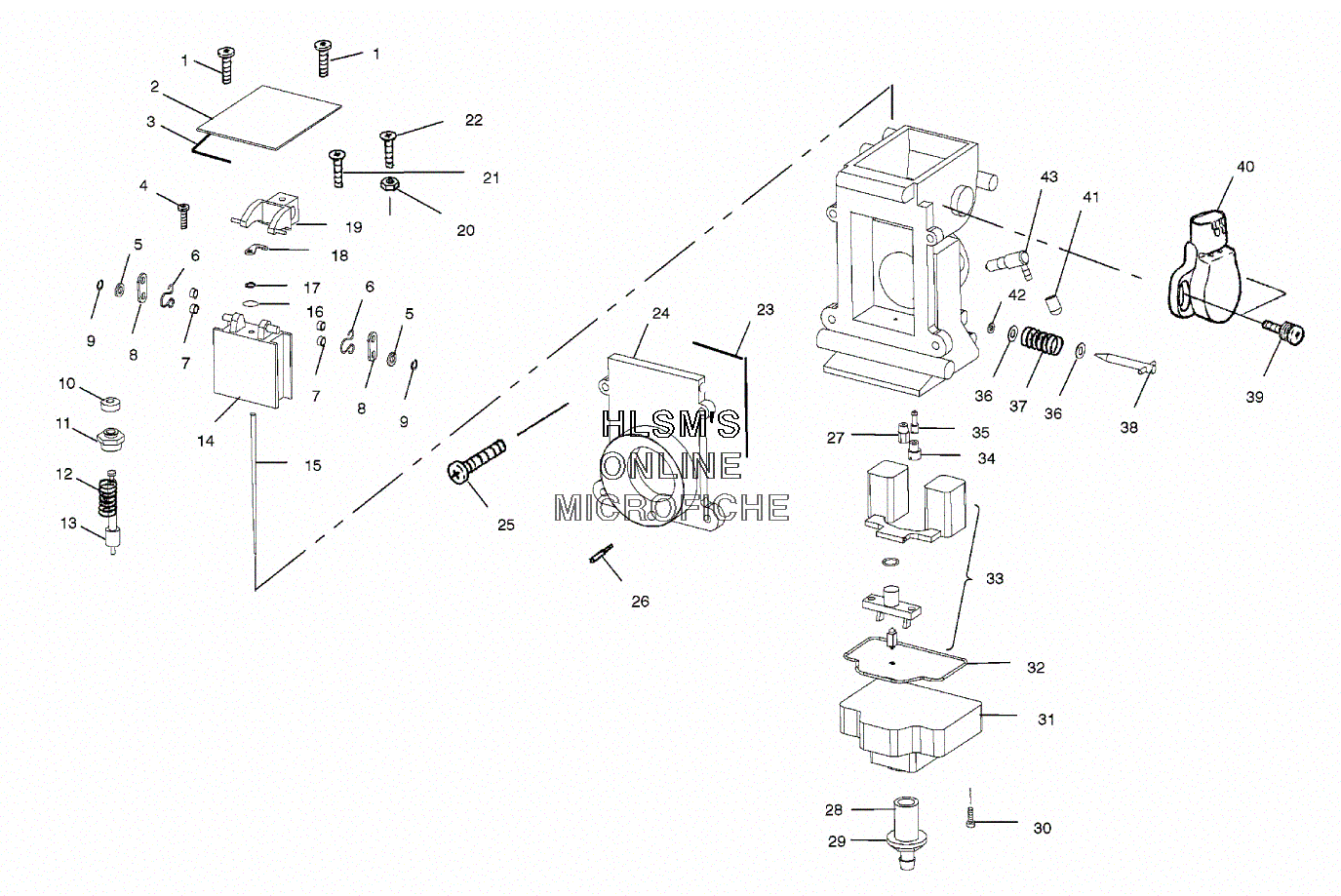

CARBURETOR ASSEMBLY для Polaris 700 RMK 136'' (S01SR7AS) - 2001 года выпуска
-
№АртикулНазвание
-
271253339 ASSY., CARB, TM 40, TPSASSY., CARB, TM 40, TPS
-
13130951 SCREWSCREW
-
23130872 CAP (TOP)CAP (TOP)
-
33130871 GASKETGASKET
-
43130844 SCREWSCREW
-
53130846 WASHER, PACKINGWASHER, PACKING
-
63130856 CLIPCLIP
-
73130845 RINGRING
-
83130857 PLATEPLATE
-
93130847 E-RINGE-RING
-
103130831 CAP, STARTER (RUBBER)CAP, STARTER (RUBBER)
-
113130830 HOLDER, STARTER GUIDEHOLDER, STARTER GUIDE
-
123130829 SPRING, STARTERSPRING, STARTER
-
133130828 PLUNGER ASSY./258PLUNGER ASSY./258
-
143131252 CUTAWAY, TM38/282CUTAWAY, TM38/282
-
153131251 NEEDLE, JET (J8-8DGY-01)NEEDLE, JET (J8-8DGY-01)
-
163130867 PACKINGPACKING
-
173130868 E-RINGE-RING
-
183130843 PLATEPLATE
-
193130855 LEVER ASSY.LEVER ASSY.
-
193130849 LEVER ASSY.LEVER ASSY.
-
203130848 RINGRING
-
213130854 SCREWSCREW
-
223130850 SCREWSCREW
-
233130870 O-RING, AIR FUNNELO-RING, AIR FUNNEL
-
243131230 ASSY., FUNNELASSY., FUNNEL
-
253130825 SCREW, AIR FUNNELSCREW, AIR FUNNEL
-
263131203 AIR JET-PILOT (PAJ) (.9)AIR JET-PILOT (PAJ) (.9)
-
273130137 JET, MAIN, HX.HD (340) (MAG)JET, MAIN, HX.HD (340) (MAG)
-
273130135 JET, MAIN, HX.HD (320) (PTO)JET, MAIN, HX.HD (320) (PTO)
-
283130862 NIPPLE, DRAIN SCREWNIPPLE, DRAIN SCREW
-
293130863 O-RING, DRAIN SCREWO-RING, DRAIN SCREW
-
303130824 SCREW, FLOAT BOWLSCREW, FLOAT BOWL
-
313130858 FLOAT, BODYFLOAT, BODY
-
323130861 O-RING, FLOAT BOWLO-RING, FLOAT BOWL
-
333131231 ASSY., FLOAT, 1.8ASSY., FLOAT, 1.8
-
343130068 JET, PILOT (45)JET, PILOT (45)
-
353130769 JET, STARTER (145)JET, STARTER (145)
-
363130837 WASHERWASHER
-
373130836 SPRINGSPRING
-
383130838 ADJUSTER ASSY.ADJUSTER ASSY.
-
393131010 SCREW (MAG SIDE)SCREW (MAG SIDE)
-
403131009 SENSOR ASSY. (MAG SIDE)SENSOR ASSY. (MAG SIDE)
-
413130479 CAPCAP
-
423130835 PACKINGPACKING
-
437051020 VALVE, CHECK, 90 DEG.VALVE, CHECK, 90 DEG.
