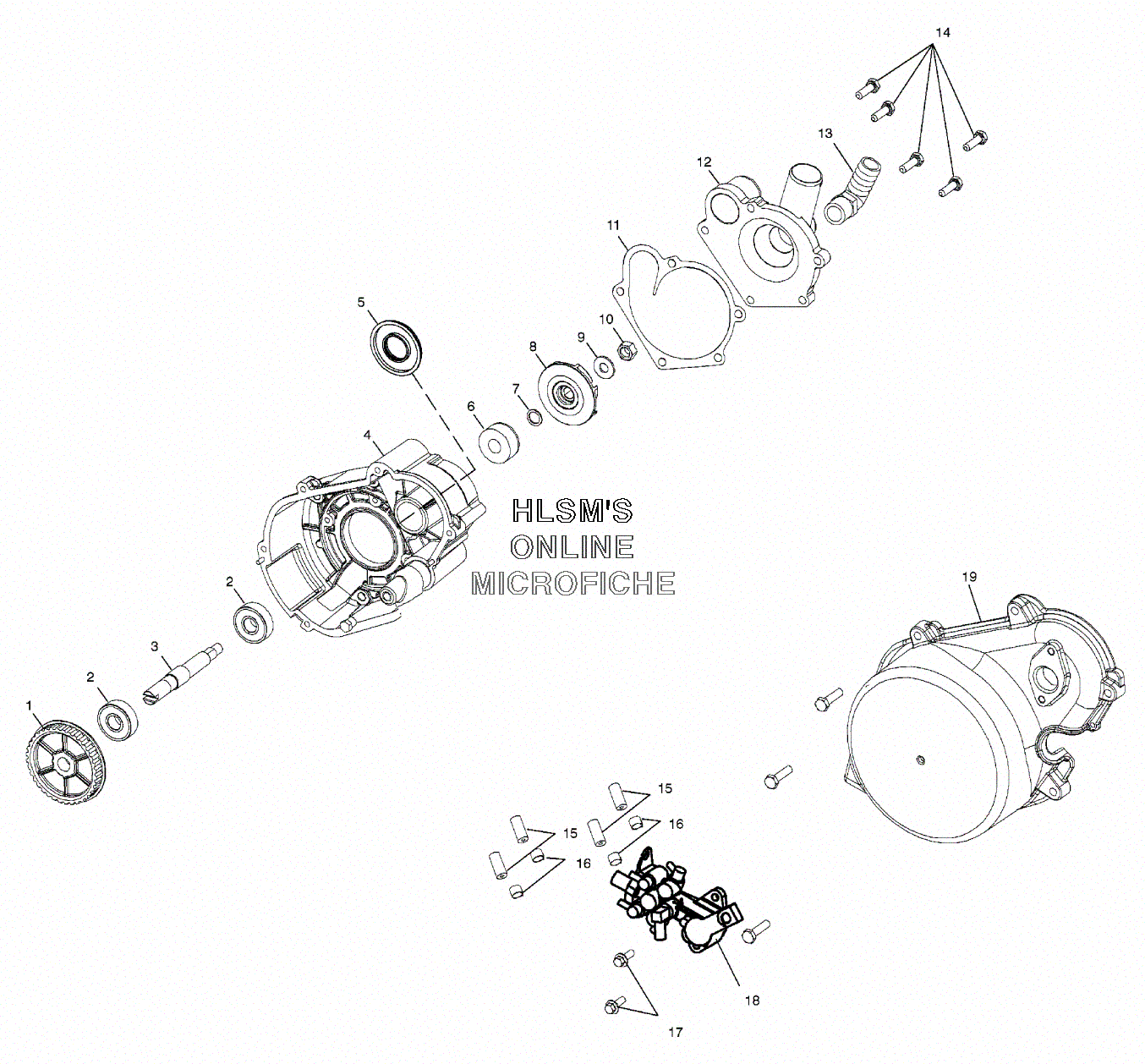

WATER PUMP/OIL PUMP для Polaris 700 XC SP (BLACK) (S01NP7ASA) - 2001 года выпуска
-
№АртикулНазвание
-
13021044 PULLEY, WATER PUMP DRIVEN (17.00)PULLEY, WATER PUMP DRIVEN (17.00)
-
23514311 BEARING, BALL, SLD.DGRV.BEARING, BALL, SLD.DGRV.
-
35132273 SHAFT WATER PUMP, 700BASE, 17.00SHAFT WATER PUMP, 700BASE, 17.00
-
53610044 SEALSEAL
-
63610067 SEAL, WATER PUMPSEAL, WATER PUMP
-
77556006 WASHER, FLAT, SS.WASHER, FLAT, SS.
-
85432330 IMPELLER, WATER PUMPIMPELLER, WATER PUMP
-
97555874 WASHER, FLAT, S.S.WASHER, FLAT, S.S.
-
107546804 NUT, HEXAGONNUT, HEXAGON
-
115811627 GASKET, COVER, WATER PUMPGASKET, COVER, WATER PUMP
-
125630864 COVER, WATER PUMPCOVER, WATER PUMP
-
137052221 FITTING, HOSE (90Ш) (3/8 NPT) (5/8ID)FITTING, HOSE (90Ш) (3/8 NPT) (5/8ID)
-
147516822 SCREWSCREW
-
158450061-82 FUEL LINE (3MMX7MM)FUEL LINE (3MMX7MM)
-
167080603 CLAMPCLAMP
-
177516607 SCREWSCREW
-
182540053 PUMP ASSY., OIL (4M13603)PUMP ASSY., OIL (4M13603)
