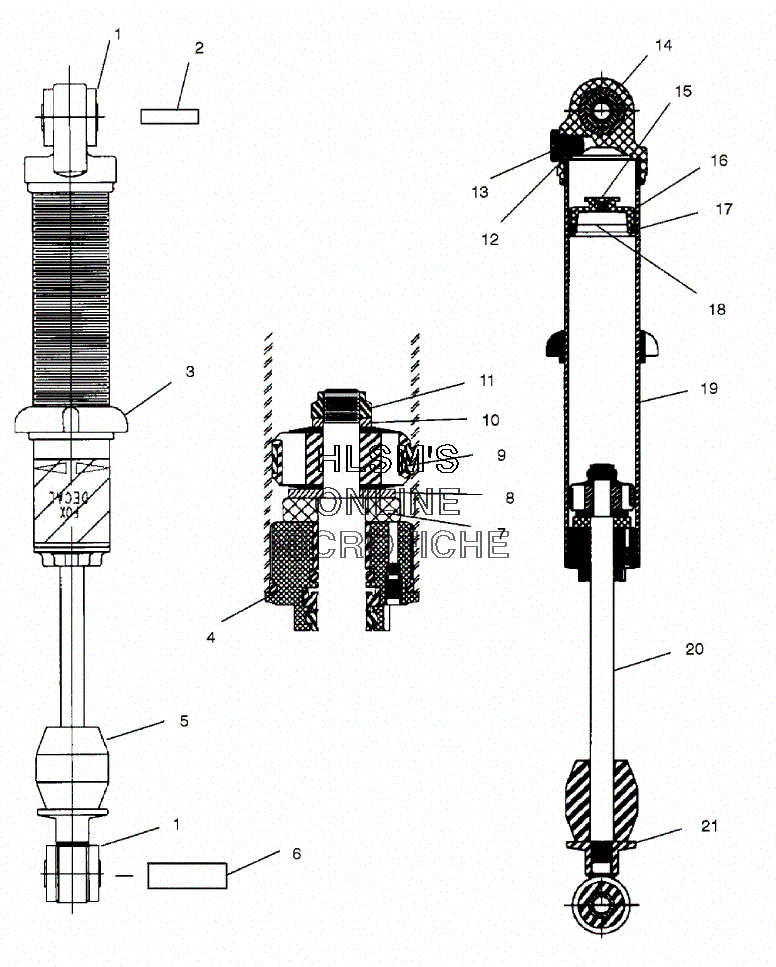

SUSPENSION - FOX SHOCK - IFS LEFT AND RIGHT HAND- FRONT для Polaris 700 XC SP (RED) (S01NP7AS) - 2001 года выпуска
-
№АртикулНазвание
-
1A7041926 SHOCK, GAS, IFP (11.02X16.25)SHOCK, GAS, IFP (11.02X16.25)
-
1B2200618 VALVE PISTON KITVALVE PISTON KIT
-
11500137 BUSHING, EYELETBUSHING, EYELET
-
25020613 BUSHING, (1.16 IN.)BUSHING, (1.16 IN.)
-
35432304 RING, SPRING PRELOAD, ADJUSTERRING, SPRING PRELOAD, ADJUSTER
-
41500186 BEARING ASSY.BEARING ASSY.
-
41500020 O-RING (.103W1.299ID)O-RING (.103W1.299ID)
-
41500021 O-RING INNERO-RING INNER
-
41500268 SEAL, WIPER, URETHANESEAL, WIPER, URETHANE
-
41500266 UCUP4300 URETH, 03601006UCUP4300 URETH, 03601006
-
41500070 SCREWSCREW
-
41500071 BALL, (FOX)BALL, (FOX)
-
55410855 BUMPER, JOUNCEBUMPER, JOUNCE
-
61500138 SLEEVE, STEELSLEEVE, STEEL
-
75431355 SPACERSPACER
-
81500017 PLATE (TOP.OUTER)PLATE (TOP.OUTER)
-
91500002 DAMPER, PISTONRINGDAMPER, PISTONRING
-
101500015 BUSHING, BACKUPBUSHING, BACKUP
-
111500016 NUT, LOCKNUT, LOCK
-
121500108 O-RING (.103W1.549ID)O-RING (.103W1.549ID)
-
131500072 VALVE ASSY., AIRVALVE ASSY., AIR
-
131500014 VALVE ASSY., AIRVALVE ASSY., AIR
-
131500019 SCREWSCREW
-
131500023 O-RING (OUTER)O-RING (OUTER)
-
141500316 CAP ASSY., BODYCAP ASSY., BODY
-
151500018 SCREWSCREW
-
151500022 O-RING, DRUM (OUTER)O-RING, DRUM (OUTER)
-
161500003 O-RING, END CAPO-RING, END CAP
-
171500006 RING, PISTON, FLOATINGRING, PISTON, FLOATING
-
181500187 PISTONFLOATINGPISTONFLOATING
-
191500289 BODY (1.46X8.18 TLG 20404004)BODY (1.46X8.18 TLG 20404004)
-
201500205 SHAFT (0.498 ODX8.000 TLG)SHAFT (0.498 ODX8.000 TLG)
-
211500317 EYELET (1.5 BASE) (2.01)EYELET (1.5 BASE) (2.01)
