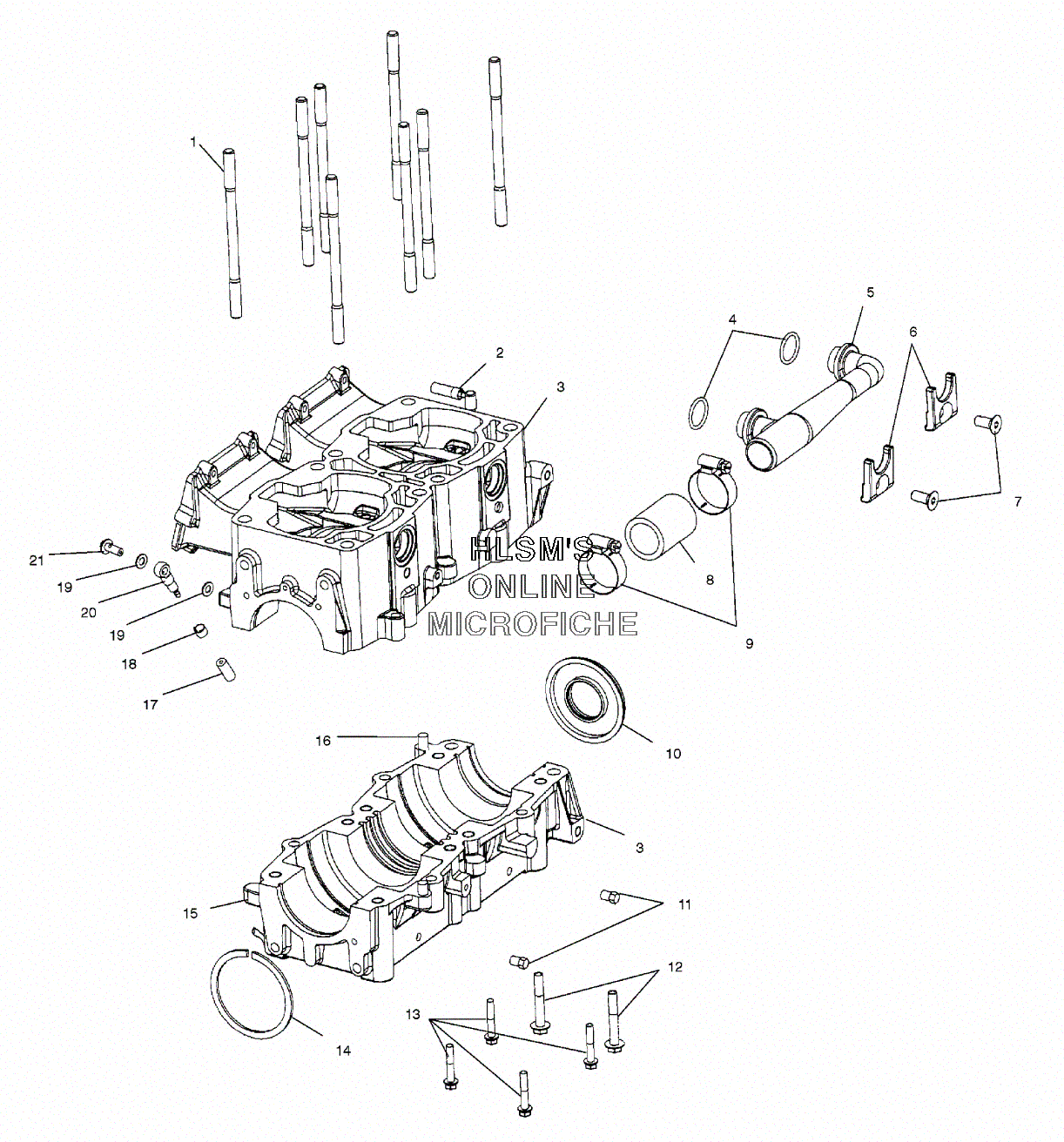

CRANKCASE ASSEMBLY для Polaris 800 XC SP (BLUE) (S01NP8BSB) - 2001 года выпуска
-
№АртикулНазвание
-
15131677 STUD, CYLINDER FLANGE (152MM)STUD, CYLINDER FLANGE (152MM)
-
27051020 VALVE, CHECK (90 DEG)VALVE, CHECK (90 DEG)
-
32201696 CRANKCASE KIT, SNO 1201963 (INCL. 1, 3, 12, 13, 16)CRANKCASE KIT, SNO 1201963 (INCL. 1, 3, 12, 13, 16)
-
45411125 O-RINGO-RING
-
55630610 MANIFOLD, WATER INLETMANIFOLD, WATER INLET
-
65243431 RETAINER INLET WATER MANIFOLDRETAINER INLET WATER MANIFOLD
-
77516736 SCREWSCREW
-
88450068-04 HOSEHOSE
-
97080560 CLAMP, S.S.CLAMP, S.S.
-
105411394 SEAL, FLANGEDSEAL, FLANGED
-
117051529 PLUGPLUG
-
127516919 SCREWSCREW
-
137516732 SCREWSCREW
-
147710441 RING, RETAININGRING, RETAINING
-
157052145 FITTINGFITTING
-
167663001 PIN, DOWELPIN, DOWEL
-
178450061-600 FUELLINE (3MMX7MM)FUELLINE (3MMX7MM)
-
187080603 CLAMPCLAMP
-
197555998 WASHER, FLATWASHER, FLAT
-
207052160 VALVE, CHECK, OIL PUMPVALVE, CHECK, OIL PUMP
-
217517319 SCREWSCREW
