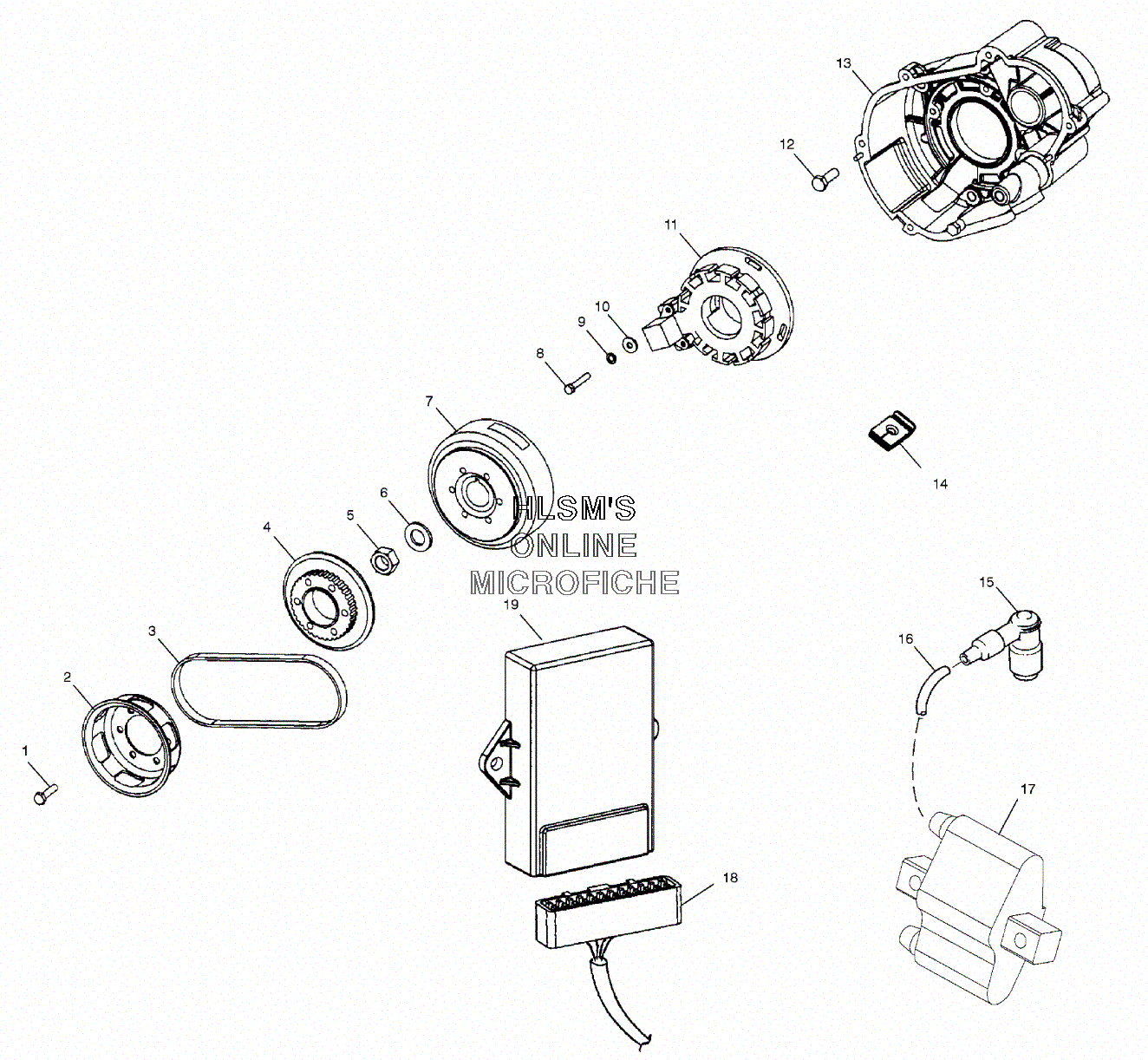

ELECTRICAL - MAGNETO ASSEMBLY W/ COIL для Polaris 800 XC SP (RED) (S01NP8BS) - 2001 года выпуска

№

Артикул

Название
1

7516823 SCREW

SCREW

750 ₽
2

3021144 PULLEY, RECOIL (700 BASE)

PULLEY, RECOIL (700 BASE)

0 ₽
3

5411998 WATER PUMP BELT KIT

WATER PUMP BELT KIT

13 520 ₽
4

5630824 PULLEY, WATER PUMP DRIVE

PULLEY, WATER PUMP DRIVE

0 ₽
5

7546909 NUT

NUT

2 910 ₽
6

7555907 WASHER

WASHER

750 ₽
7

4060223 FLYWHEEL, IGNITION, TWIN, SNOW

FLYWHEEL, IGNITION, TWIN, SNOW

45 760 ₽
8

7517246 SCREW

SCREW

630 ₽
9

7555969 WASHER, LOCK

WASHER, LOCK

460 ₽
10

7555970 WASHER, FLAT

WASHER, FLAT

460 ₽
11

4010297 STATOR, IGNITION, SNOW, TWN

STATOR, IGNITION, SNOW, TWN

87 360 ₽
12

7516734 SCREW,

SCREW,

830 ₽
13

1201812 HOUSING, IGNITION ASSY.

HOUSING, IGNITION ASSY.

58 240 ₽
14

5411178 GROMMET, STATOR WIRES

GROMMET, STATOR WIRES

1 310 ₽
15

4020155 CAP, SPARKPLUG

CAP, SPARKPLUG

5 200 ₽
16

4010124 WIRE, IGNITION BULK (.305CM)

WIRE, IGNITION BULK (.305CM)

15 600 ₽
17

4060229 COIL, IGNITION SNO, KOK

COIL, IGNITION SNO, KOK

26 000 ₽
18

4010279 HARNESS, IGNITION SNO, KOK

HARNESS, IGNITION SNO, KOK

0 ₽
19

2201761 CDI KIT (S80-70-PO-A2) (INCL. 19, NYOGEL AND DECAL)

CDI KIT (S80-70-PO-A2) (INCL. 19, NYOGEL AND DECAL)

104 000 ₽
19

7077026 DECAL, SPARKPLUG REC.

DECAL, SPARKPLUG REC.

750 ₽
