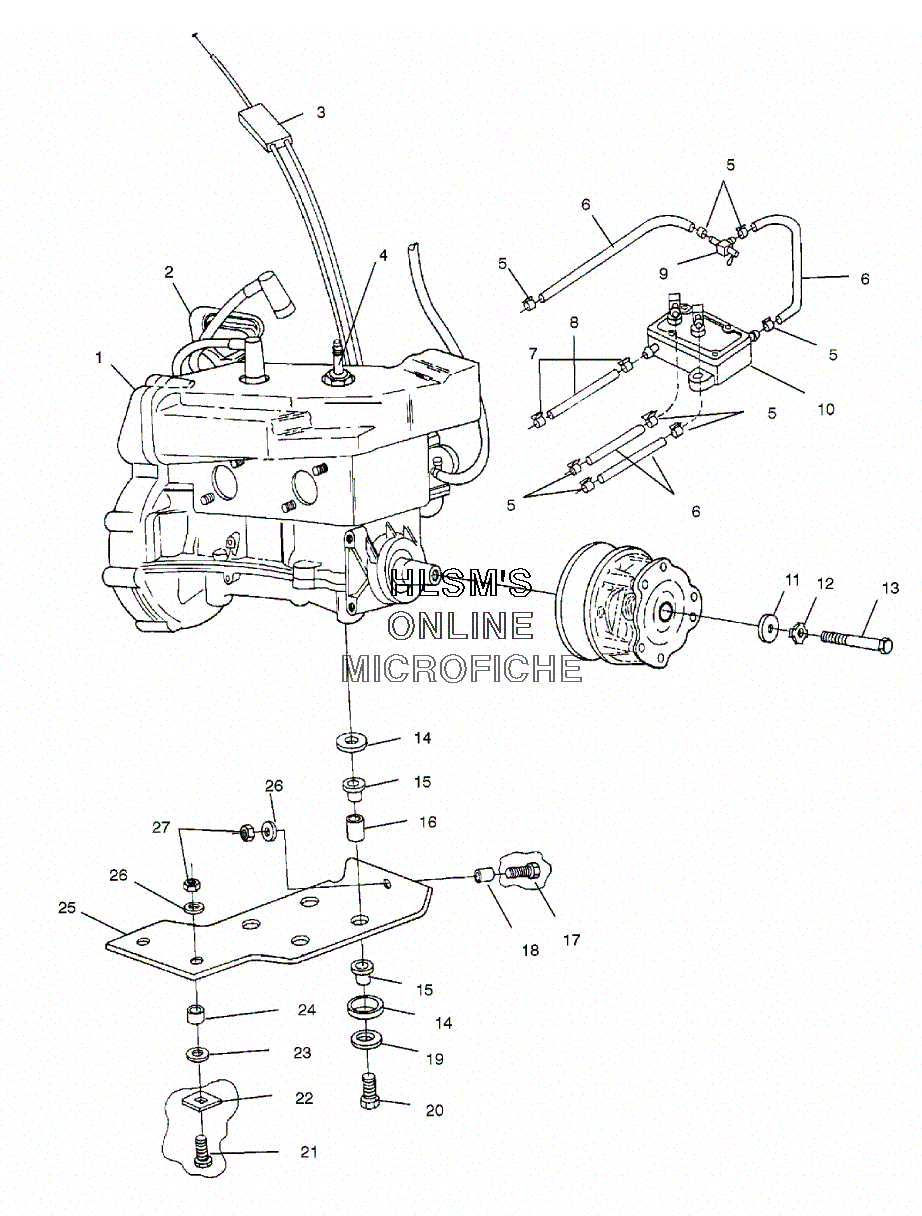

ENGINE MOUNTING W/ SHORT BLOCK для Polaris INDY 340 DELUXE (S01LD3AS) - 2001 года выпуска
-
№АртикулНазвание
-
13084620 ENGINE (SHORT BLOCK) (EC34-2PM02A) (SEE FOOTNOTE)ENGINE (SHORT BLOCK) (EC34-2PM02A) (SEE FOOTNOTE)
-
25431499 HANDLE, RECOIL (BLACK)HANDLE, RECOIL (BLACK)
-
37080557 CABLE, THROTTLECABLE, THROTTLE
-
43070156 SPARKPLUGSPARKPLUG
-
57080307 CLAMPCLAMP
-
68350018-600 TUBING-ETHER ERETHNE,160CM,SVCTUBING-ETHER ERETHNE,160CM,SVC
-
77080003 CLAMP, HOSECLAMP, HOSE
-
88450040-600 FUEL LINE, 1/4 ID (600 CM.)FUEL LINE, 1/4 ID (600 CM.)
-
97052060 VALVE, FUEL SHUT, OFFVALVE, FUEL SHUT, OFF
-
115010278 WASHER, CLUTCH RETAINERWASHER, CLUTCH RETAINER
-
127575202 WASHER LOCKWASHER LOCK
-
137512566 BOLTBOLT
-
145221901 CAPCAP
-
155410320 DAMPNER, VIB.DAMPNER, VIB.
-
165010163 BUSHING, MOTOR MOUNTBUSHING, MOTOR MOUNT
-
177515503 BOLTBOLT
-
185020840 BUSHING, THREADEDBUSHING, THREADED
-
197553101 WASHER LOCKWASHER LOCK
-
207512515 BOLTBOLT
-
217515510 BOLTBOLT
-
225211201 PLATE, SPACERPLATE, SPACER
-
237555823 WASHERWASHER
-
245020562 BUSHING, THREADEDBUSHING, THREADED
-
255224836 PLATE, MOTOR MOUNT, W/HOLEPLATE, MOTOR MOUNT, W/HOLE
-
267555761 WASHERWASHER
-
277542403 NUT LOCKNUT LOCK
Все узлы модели:
- BATTERY BOX
- BRAKE ASSEMBLY
- CARBURETOR ASSEMBLY
- CHAINCASE ASSEMBLY
- CLUTCH - DRIVE
- CLUTCH - DRIVEN
- CRANKCASE ASSEMBLY
- CYLINDER ASSEMBLY
- DECALS
- DRIVE TRAIN ASSEMBLY W/ DRIVE BELT
- ELECTRICAL - MAGNETO ASSEMBLY W/ COIL
- • ENGINE MOUNTING W/ SHORT BLOCK
- EXHAUST SYSTEM
- FUEL PUMP
- HOOD ASSEMBLY W/ WINDSHIELD
- HOOD ASSEMBLY WO/ WINDSHEILD
- NOSEPAN AND CONSOLE ASSEMBLY
- OIL PUMP ASSEMBLY
- OIL TANK W/ AIR BOX ASSEMBLY
- PISTON AND CRANKSHAFT
- RAIL ASSEMBLY W/ IDLER WHEELS #1
- RAIL ASSEMBLY W/ IDLER WHEELS #2
- SEAT W/ TUNNEL ASSEMBLY
- STARTER - RECOIL ASSEMBLY W/ BLOWER HOUSING
- STARTING MOTOR
- STEERING ASSEMBLY
- SUSPENSION - FRONT TORQUE ARM ASSEMBLY
- SUSPENSION - FRONT W/ SKI
- SUSPENSION - REAR TORQUE ARM ASSEMBLY
- TOOL KIT
