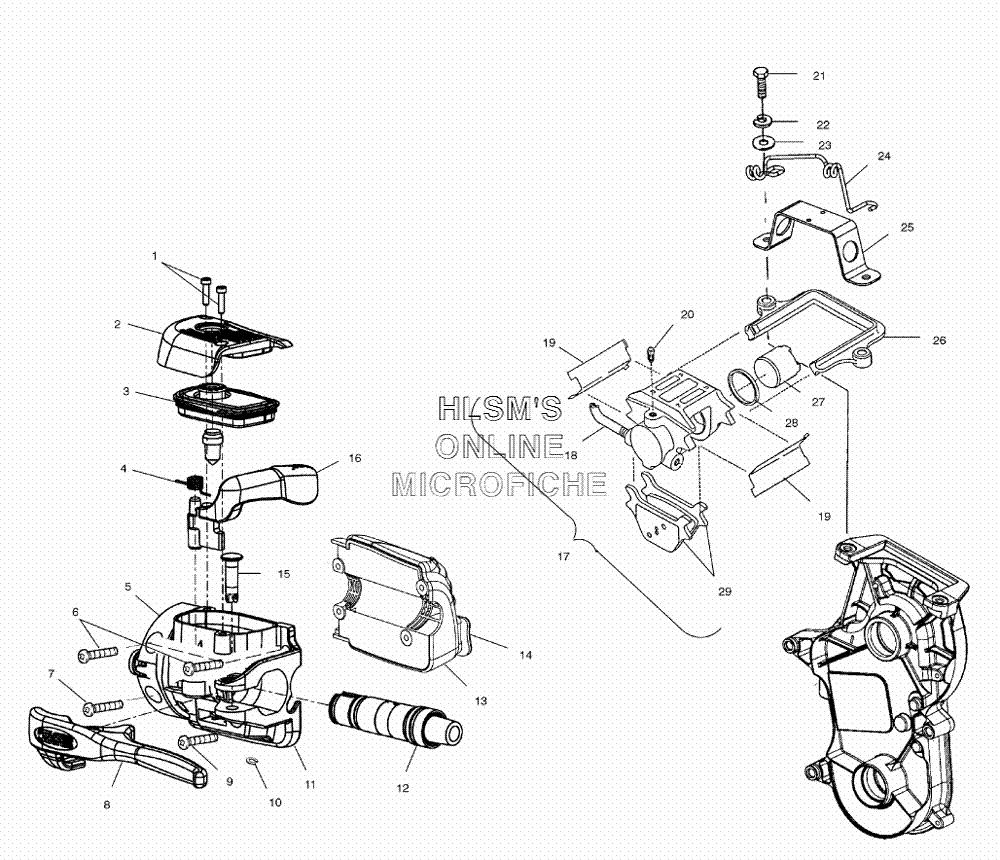

BRAKE ASSEMBLY для Polaris 500 INDY (S02NB4BS) - 2002 года выпуска
-
№АртикулНазвание
-
12201254 COVER SCREW KIT (HAYES)COVER SCREW KIT (HAYES)
-
22201255 COVER ASSY. KIT (HAYES) (INCL. 1, 3)COVER ASSY. KIT (HAYES) (INCL. 1, 3)
-
42201250 PARKING LEVER SPRING KITPARKING LEVER SPRING KIT
-
52010209 MASTER CYLINDER ASSY. KIT (HAYES) (INCL. 2, 4, 8, 11, 12, 15)MASTER CYLINDER ASSY. KIT (HAYES) (INCL. 2, 4, 8, 11, 12, 15)
-
67517441 SCREWSCREW
-
77512078 SCREWSCREW
-
82201943 KIT LEVER 3 (NOTCH/PIN/RING)KIT LEVER 3 (NOTCH/PIN/RING)
-
97517566 SCREWSCREW
-
102201945 KIT, SNAP RINGKIT, SNAP RING
-
112201948 MASTER CYLINDER ASSY. KIT (HAYES)MASTER CYLINDER ASSY. KIT (HAYES)
-
114010157 SWITCH, BRAKE LIGHTSWITCH, BRAKE LIGHT
-
122201944 CARTRIDGE SUB ASSY. KIT (5/8'')CARTRIDGE SUB ASSY. KIT (5/8'')
-
132010167 CONTROL ASSY. (LEFT) (BASIC)CONTROL ASSY. (LEFT) (BASIC)
-
145433291 BUTTON SWITCH HI/LOBUTTON SWITCH HI/LO
-
152201946 PIVOT PIN KIT, ALUMINUM W/SNAP RINGPIVOT PIN KIT, ALUMINUM W/SNAP RING
-
162201251 PARKING LEVER AND SPRING KIT (INCL. 4)PARKING LEVER AND SPRING KIT (INCL. 4)
-
171910350 BRAKE CALIPER, HYBRID AIR (INCL. 27, 28, 29)BRAKE CALIPER, HYBRID AIR (INCL. 27, 28, 29)
-
181910546 LINE, BRAKE EDGE BRAIDEDLINE, BRAKE EDGE BRAIDED
-
192200467 CLIP SPRING KITCLIP SPRING KIT
-
201930735 INLET KITINLET KIT
-
217515521 BOLTBOLT
-
227552603 WASHERWASHER
-
237555801 WASHERWASHER
-
245244413 GUIDE ROPEGUIDE ROPE
-
255244964 BRACKET HOSE STANDOFF, CHAINCASEBRACKET HOSE STANDOFF, CHAINCASE
-
261930733 CALIPER BRACKET KITCALIPER BRACKET KIT
-
271930734 PISTON SEAL KIT (INCL. 28)PISTON SEAL KIT (INCL. 28)
-
282200466 SEALSEAL
-
292201429 BRAKE KIT, PAD TYPE 81 (SMALL) (INCL. 19)BRAKE KIT, PAD TYPE 81 (SMALL) (INCL. 19)
