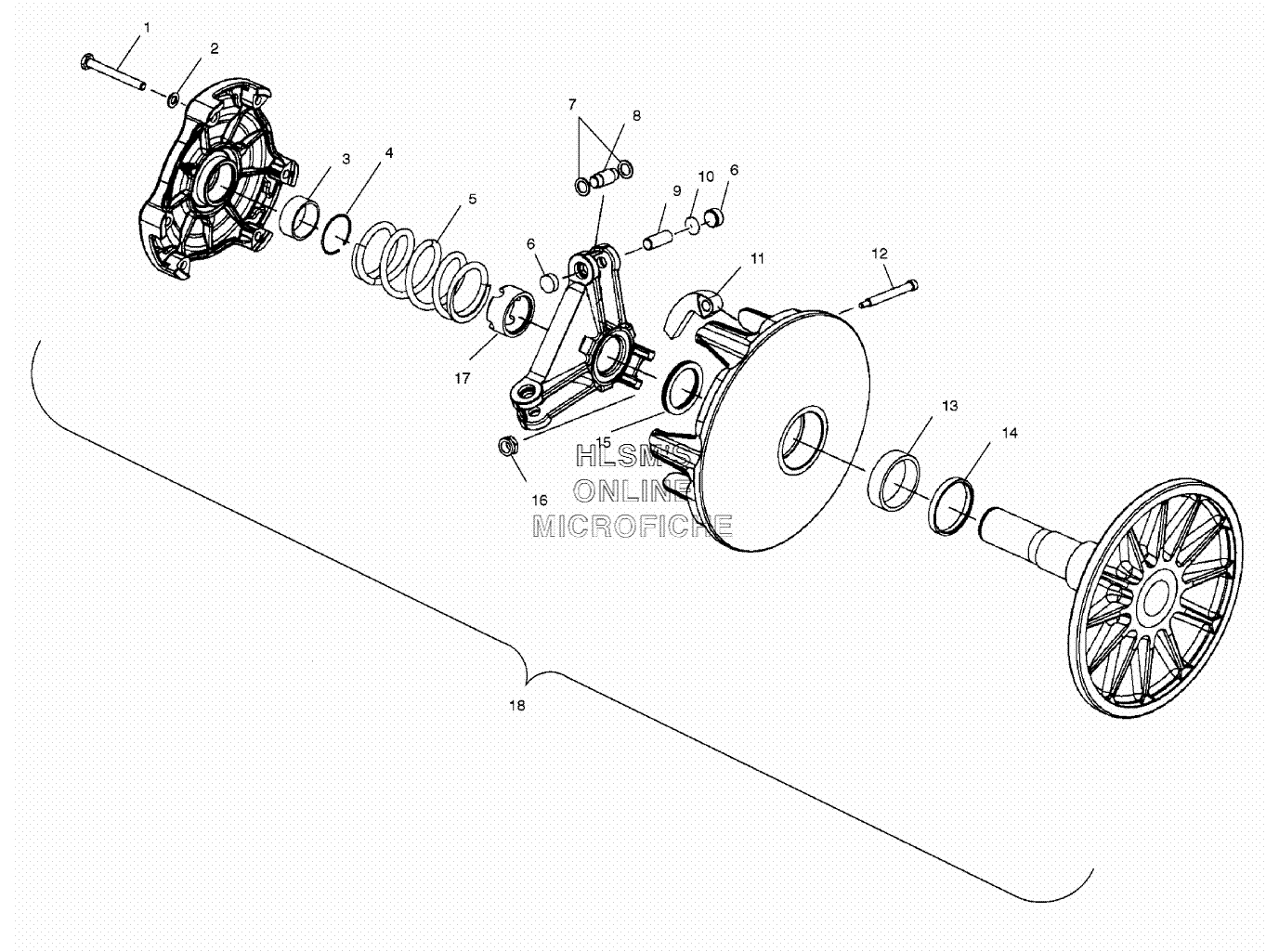

CLUTCH - DRIVE для Polaris 500 XC (S02NP5AS) - 2002 года выпуска
-
№АртикулНазвание
-
17512265 BOLTBOLT
-
27552801 LOCK WASHERLOCK WASHER
-
33576516 COVER, BEARING GARMAXCOVER, BEARING GARMAX
-
47710417 RING, RETAINING BOLTRING, RETAINING BOLT
-
57041781 SPRING, CLUTCH (DARK BLUE/WHITE)SPRING, CLUTCH (DARK BLUE/WHITE)
-
65430445 BUTTON, GUIDEBUTTON, GUIDE
-
75430945 WASHERWASHER
-
81321622 ROLLER AND BUSHING ASSY.ROLLER AND BUSHING ASSY.
-
95020422 PIN-ROLLERPIN-ROLLER
-
102200387 SHIM, DRIVE CLUTCH KITSHIM, DRIVE CLUTCH KIT
-
111321685 WT/BUSH. ASSY.,10-54 (3)WT/BUSH. ASSY.,10-54 (3)
-
127515105 PIN, WT., HARDENEDPIN, WT., HARDENED
-
133576502 SLEEVE, BEARINGSLEEVE, BEARING
-
145010188 BUSHING, RETAINERBUSHING, RETAINER
-
155210754 SPACER (.050MM)SPACER (.050MM)
-
155210753 SPACER (.032MM)SPACER (.032MM)
-
155242981 SPACER (.025MM)SPACER (.025MM)
-
155210752 SPACER (.020MM)SPACER (.020MM)
-
167541906 NUT FLEX LOCNUT FLEX LOC
-
175020425 NUT, JAMNUT, JAM
-
181321928 ASSY., DRIVE CLUTCH BASIC 114 W/B (LESS 5,11)ASSY., DRIVE CLUTCH BASIC 114 W/B (LESS 5,11)
