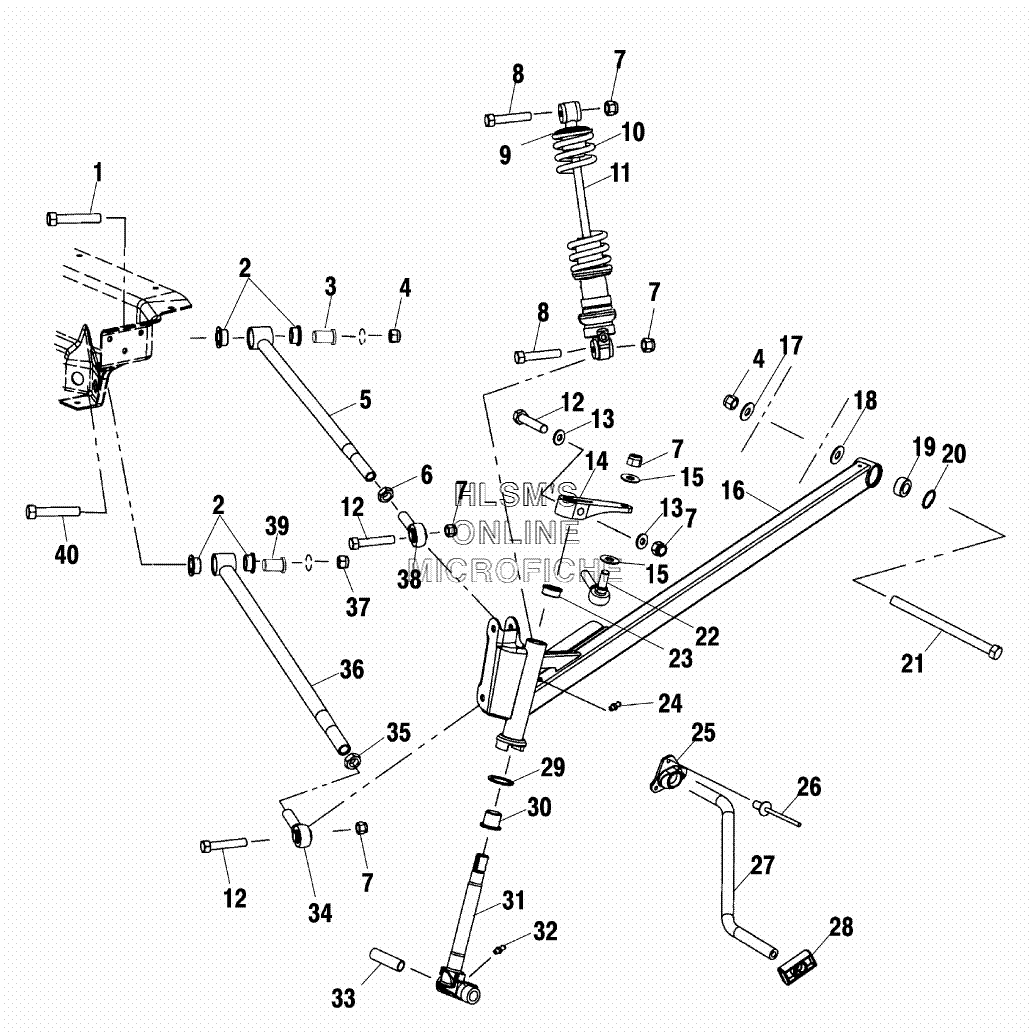

SUSPENSION - FRONT для Polaris 500 XC SP EDGE F/O (S02NP5CS) - 2002 года выпуска
-
№АртикулНазвание
-
17512597 BOLT HEXAGON CAP (7/16 20X2.75, GR5, Y)BOLT HEXAGON CAP (7/16 20X2.75, GR5, Y)
-
25434036 BUSHING, PIVOT (INNER)BUSHING, PIVOT (INNER)
-
35132779 BUSHING SHOULDER (.443X.750X1.215)BUSHING SHOULDER (.443X.750X1.215)
-
47547066 NUT 7/16 20, NYLOK, YNUT 7/16 20, NYLOK, Y
-
51820679-293 WELD RADIUS ROD (UPPER/RED)WELD RADIUS ROD (UPPER/RED)
-
51820679-216 WELD RADIUS ROD (UPPER/YELLOW)WELD RADIUS ROD (UPPER/YELLOW)
-
67542520 NUT, JAMNUT, JAM
-
77542439 NUT, NYLOKNUT, NYLOK
-
87515433 SCREWSCREW
-
95630580 RETAINER, SPRING, SLOTTEDRETAINER, SPRING, SLOTTED
-
107041950-067 SPRING COMP, 68/160#, 11.5 (BLACK)SPRING COMP, 68/160#, 11.5 (BLACK)
-
117041976 SHOCK, IFS, IFP, ALUMINUM (11X16)SHOCK, IFS, IFP, ALUMINUM (11X16)
-
127517583 SCREW, HEXAGON CAP (3/8 24X2 GR5 Y SP)SCREW, HEXAGON CAP (3/8 24X2 GR5 Y SP)
-
137555832 WASHERWASHER
-
145132728 ARM STEERING, MACHINEDARM STEERING, MACHINED
-
157555797 WASHER, FLATWASHER, FLAT
-
161821165-293 TRAILING ARM ASSY., SVC (RED/LEFT) (INCL. 19, 20)TRAILING ARM ASSY., SVC (RED/LEFT) (INCL. 19, 20)
-
161821166-293 TRAILING ARM ASSY., SVC (RED/RIGHT) (INCL. 19, 20)TRAILING ARM ASSY., SVC (RED/RIGHT) (INCL. 19, 20)
-
161821165-216 TRAILING ARM ASSY., SVC (LEFT/SCRAMBLER YELLOW) (INCL. 19, 20)TRAILING ARM ASSY., SVC (LEFT/SCRAMBLER YELLOW) (INCL. 19, 20)
-
161821166-216 TRAILING ARM ASSY., SVC (RIGHT/ SCRAMBLER YELLOW) (INCL. 19, 20)TRAILING ARM ASSY., SVC (RIGHT/ SCRAMBLER YELLOW) (INCL. 19, 20)
-
177555820 WASHER, FLATWASHER, FLAT
-
185132364 CUP, TRAILING ARM MOUNTCUP, TRAILING ARM MOUNT
-
197061042 BEARING SPHERICAL, 7/16, PLASTICBEARING SPHERICAL, 7/16, PLASTIC
-
207710437 RING, RETAININGRING, RETAINING
-
217512099 SCREWSCREW
-
227061057 ROD END 3/8, PL, 75Ш, 1.00 (RIGHT)ROD END 3/8, PL, 75Ш, 1.00 (RIGHT)
-
233573909 BUSHING FLANGEBUSHING FLANGE
-
247080433 FITTING, LUBRICATION, THREADEDFITTING, LUBRICATION, THREADED
-
255433234 BUSHING TORSION BARBUSHING TORSION BAR
-
267621477 RIVETRIVET
-
275244415-067 BAR, TROSION, 1/2, 42.5 (BLACK)BAR, TROSION, 1/2, 42.5 (BLACK)
-
285433884 TORSION BARTORSION BAR
-
297556509 BUSHINGBUSHING
-
303574208 BUSHING, FLANGEDBUSHING, FLANGED
-
316230225-067 SHAFT SPINDLE, W/STEER STOP (BLACK)SHAFT SPINDLE, W/STEER STOP (BLACK)
-
327080306 FITTING, LUBE.W/BALL CHECKFITTING, LUBE.W/BALL CHECK
-
335010158 BUSHING, PIVOTBUSHING, PIVOT
-
347061060 ROD END, RADIUS, 1/2ROD END, RADIUS, 1/2
-
357542711 NUT JAMNUT JAM
-
361820677-293 WELD RADIUS ROD (LOWER/RED)WELD RADIUS ROD (LOWER/RED)
-
361820677-216 WELD RADIUS ROD (LOWER/ YELLOW)WELD RADIUS ROD (LOWER/ YELLOW)
-
377547065 NUT 1/2 20, NYLOK, YNUT 1/2 20, NYLOK, Y
-
387061061 ROD END, RADIUS, 7/16ROD END, RADIUS, 7/16
-
395132780 BUSHING SHOULDER (.505X.750X1.215)BUSHING SHOULDER (.505X.750X1.215)
-
407512684 BOLTBOLT
