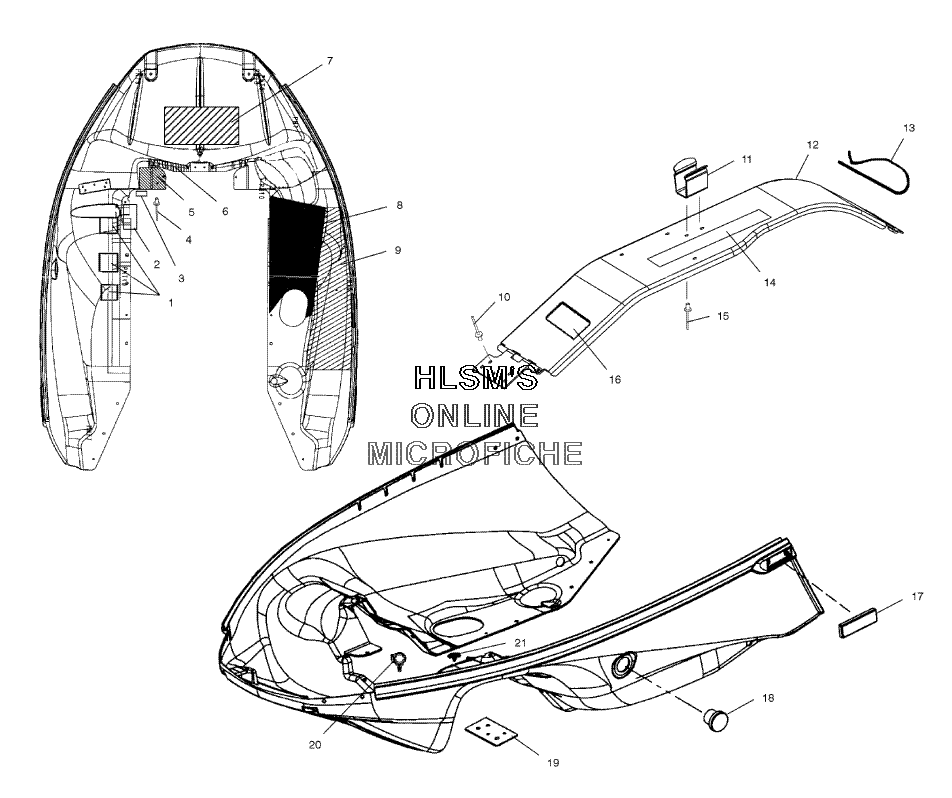

NOSEPAN ASSEMBLY #2 для Polaris 600 RMK 136 BUILT AFTER 3/1/01 (S02NJ6ES) - 2002 года выпуска
-
№АртикулНазвание
-
17670130 SPD-CLIP-"U" TYPE(C-53791-014)SPD-CLIP-"U" TYPE(C-53791-014)
-
25811948 FOIL-4.5X1.0FOIL-4.5X1.0
-
37080963 RETAINER-"J"CLPRETAINER-"J"CLP
-
47621435 RIVETRIVET
-
55812020 FOIL, TAPEFOIL, TAPE
-
65810949 FOIL, TAPE, 1.5X6FOIL, TAPE, 1.5X6
-
75812036 FOIL, 10X10FOIL, 10X10
-
85812019 FOIL, TAPE, LWR (RIGHT)FOIL, TAPE, LWR (RIGHT)
-
95812018 FOIL, TAPE, UPPER (RIGHT)FOIL, TAPE, UPPER (RIGHT)
-
107621402 RIVET, POPRIVET, POP
-
115222769 CLIP, BELT RETAINERCLIP, BELT RETAINER
-
121013069 GUARD ASSY., CLUTCHGUARD ASSY., CLUTCH
-
137080698 PIN, CLUTCH GUARDPIN, CLUTCH GUARD
-
147075350 DECAL, ENGINE AND CLUTCH(CPSC)DECAL, ENGINE AND CLUTCH(CPSC)
-
157621429 RIVETRIVET
-
167170043 DECAL-TRBL SHOOTDECAL-TRBL SHOOT
-
172670134 REFLECTOR ASSY., AMBERREFLECTOR ASSY., AMBER
-
185433926 PLUG, OBLONGPLUG, OBLONG
-
195211722 PLATE, BACKERPLATE, BACKER
-
204020149 CLIP, ROSEBUDCLIP, ROSEBUD
-
217670131 PLUG-NYLON, .322X.480PLUG-NYLON, .322X.480
