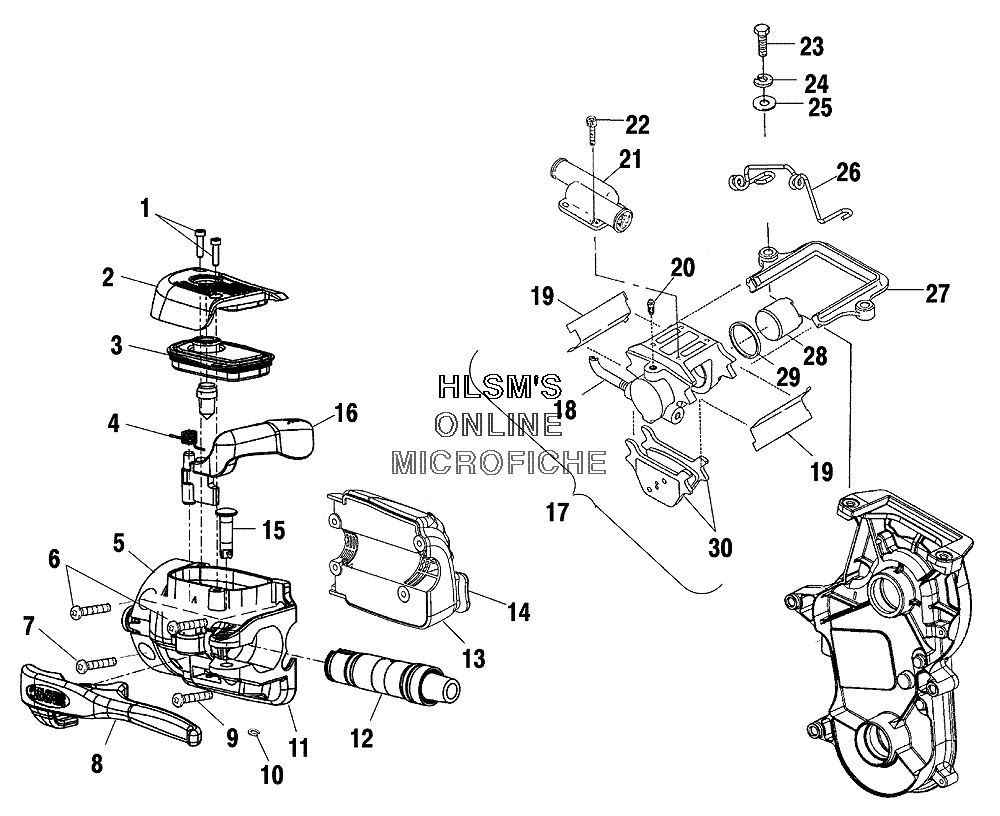

BRAKE ASSEMBLY для Polaris 600 XC SP EDGE F/O (S02NP6ES) - 2002 года выпуска
-
№АртикулНазвание
-
12201254 COVER SCREW KITCOVER SCREW KIT
-
22201255 COVER ASSEMBLY KIT (INCL. 1, 3)COVER ASSEMBLY KIT (INCL. 1, 3)
-
42201250 PARK LEVER SPRING KITPARK LEVER SPRING KIT
-
52010209 MASTER CYLINDER ASSY KIT W/PIPE THRO (INCL. 2, 4, 8, 11, 12, 15)MASTER CYLINDER ASSY KIT W/PIPE THRO (INCL. 2, 4, 8, 11, 12, 15)
-
67517441 SCREW (.75)SCREW (.75)
-
77512078 SCREW (1.12)SCREW (1.12)
-
82201943 LEVER, KIT 3 NOTCH/PIN/RINGLEVER, KIT 3 NOTCH/PIN/RING
-
97517566 SCREW (1.50)SCREW (1.50)
-
102201945 SNAP RING KITSNAP RING KIT
-
112201948 MASTER CYLINDER ASSY KIT W/PIPE THROMASTER CYLINDER ASSY KIT W/PIPE THRO
-
114010157 SWITCH, BRAKE LIGHTSWITCH, BRAKE LIGHT
-
122201944 CARTRIDGE SUB ASSY KIT (5/8")CARTRIDGE SUB ASSY KIT (5/8")
-
132010167 CONTROL ASSY (LEFT) (BASIC)CONTROL ASSY (LEFT) (BASIC)
-
145433291 BUTTON SWITCH HI/LO CONTROL (LEFT)BUTTON SWITCH HI/LO CONTROL (LEFT)
-
152201946 PIVOT PIN, ALUMINUM W/SNAP RING KITPIVOT PIN, ALUMINUM W/SNAP RING KIT
-
162201251 PARK LEVER AND SPRING KIT (INCL. 4)PARK LEVER AND SPRING KIT (INCL. 4)
-
171910344 BRAKE CALIPER, HD LIQ NOSW (INCL. 28, 29, 30)BRAKE CALIPER, HD LIQ NOSW (INCL. 28, 29, 30)
-
181910546 LINE BRAKE, EDGE BRAIDEDLINE BRAKE, EDGE BRAIDED
-
192200467 CLIP SPRING KIT (QTY. 2)CLIP SPRING KIT (QTY. 2)
-
201930735 INLET KITINLET KIT
-
211930728 COOLER, WATER BRAKECOOLER, WATER BRAKE
-
212201024 GASKET, BRAKE COOLERGASKET, BRAKE COOLER
-
221930729 SCREW SET (PKG. OF 4)SCREW SET (PKG. OF 4)
-
237515521 BOLTBOLT
-
247552603 WASHER SPRING LOCKWASHER SPRING LOCK
-
257555801 WASHERWASHER
-
265244413 GUIDE ROPEGUIDE ROPE
-
271930733 CALIPER BRACKET KITCALIPER BRACKET KIT
-
281930734 PISTON SEAL KIT (INCL. 29)PISTON SEAL KIT (INCL. 29)
-
292200466 SEALSEAL
-
302201430 BRAKE, KIT PAD TYPE 81 (LARGE) (INCL. 19)BRAKE, KIT PAD TYPE 81 (LARGE) (INCL. 19)
