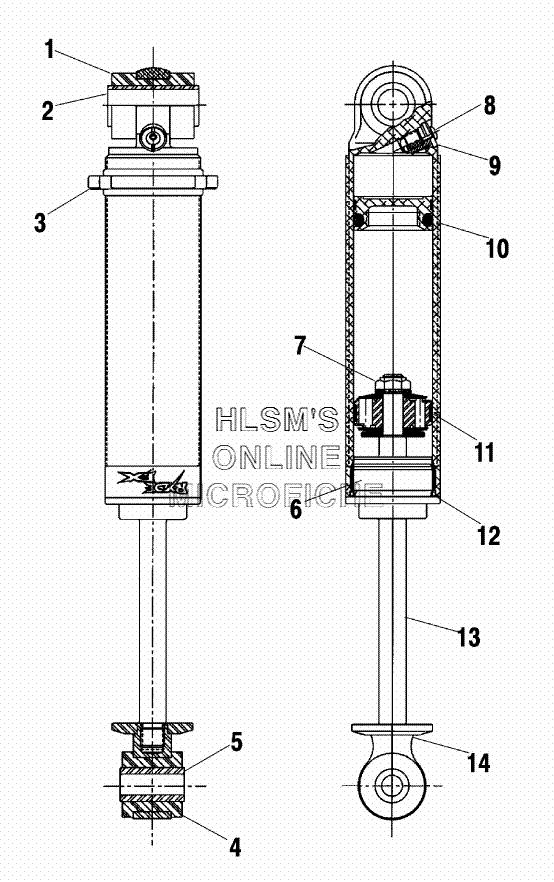

SUSPENSION - FRONT TRACK для Polaris 700 RMK F/O 151 (S02NL7CS) - 2002 года выпуска
-
№АртикулНазвание
-
11700074 BUSHINGBUSHING
-
21700161 SLEEVE (.70IDX.80ODX.71L)SLEEVE (.70IDX.80ODX.71L)
-
31700033 SPRING RET NUTSPRING RET NUT
-
41700036 BUSHINGBUSHING
-
51700157 SLEEVE (415344-101)SLEEVE (415344-101)
-
61700156 CYLINDER HEAD ASSY. (M 215098-100)CYLINDER HEAD ASSY. (M 215098-100)
-
71700057 NUTNUT
-
81700056 VALVE SCREWVALVE SCREW
-
91700076 PRESS. VALVE ASSY.PRESS. VALVE ASSY.
-
91700047 PRESS. VALVE O-RINGPRESS. VALVE O-RING
-
101700023 IFPIFP
-
101700032 IFP WEAR BANDIFP WEAR BAND
-
101700048 IFP, O-RINGIFP, O-RING
-
111700103 BANDED PISTON .070'' ORIFCEBANDED PISTON .070'' ORIFCE
-
111700031 PISTON WEAR BANDPISTON WEAR BAND
-
111700077 TOP-OUT WASHERTOP-OUT WASHER
-
111700078 BACK-UP WASHERBACK-UP WASHER
-
121700051 CYLINDER HEAD O-RINGCYLINDER HEAD O-RING
-
131700182 SHAFTSHAFT
-
141700011 UPPER MOUNTUPPER MOUNT
-
147042084 SHOCK, F/T, RMK, IFP, ARVINSHOCK, F/T, RMK, IFP, ARVIN
