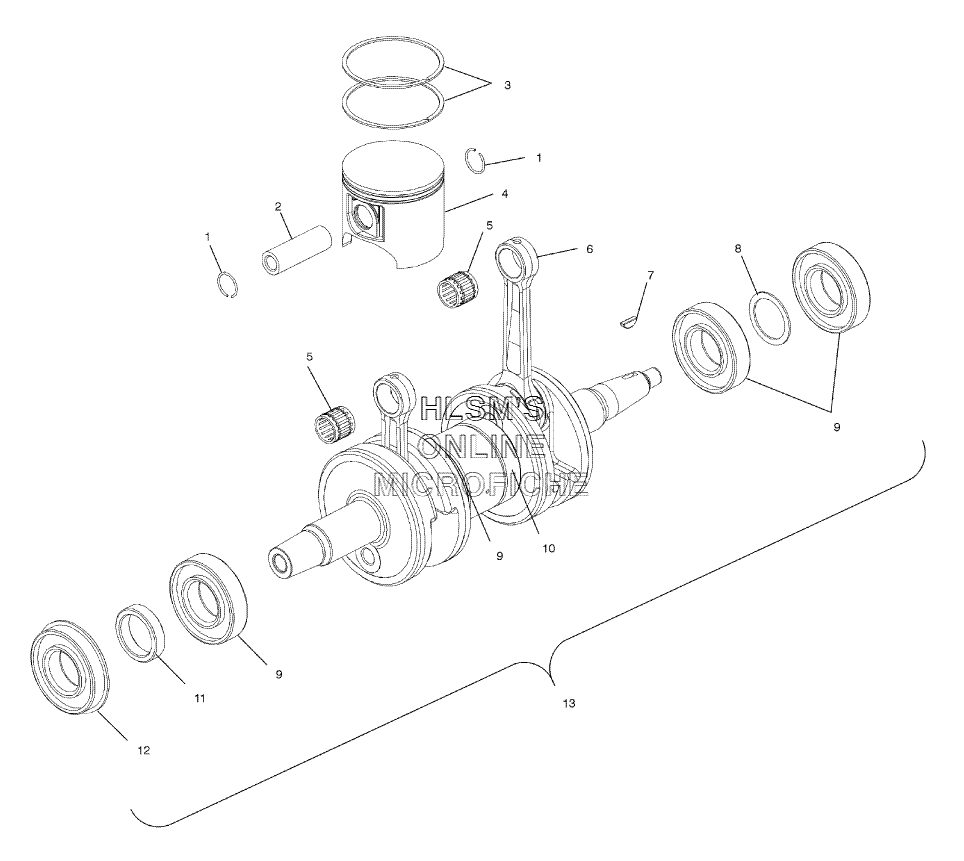

PISTON AND CRANKSHAFT для Polaris 700 SKS EURO (S02SS7CE) - 2002 года выпуска
-
№АртикулНазвание
-
13022950 CIRCLIP, PISTON, 20MM.CIRCLIP, PISTON, 20MM.
-
32200895 RINGS KIT, 81MM, SNORINGS KIT, 81MM, SNO
-
42201358 PISTON ASSY. (INCL. 1, 2, 3)PISTON ASSY. (INCL. 1, 2, 3)
-
53584001 BEARING, CONNECT.RODBEARING, CONNECT.ROD
-
62201953 CONN ROD KIT, W/BUR PIN (INCL. ROD, PIN, BEARING, WASHERS)CONN ROD KIT, W/BUR PIN (INCL. ROD, PIN, BEARING, WASHERS)
-
77721117 KEY, WOODRUFFKEY, WOODRUFF
-
87555905 BUSHINGBUSHING
-
93585503 BEARING, BALLBEARING, BALL
-
103514318 BEARING, BALLBEARING, BALL
-
115131899 SPACER, CRANKSHAFTSPACER, CRANKSHAFT
-
123514310 BEARING, BALL, EXTRACEBEARING, BALL, EXTRACE
-
132201848 CRANKSHAFT KIT 2@68X136 BUR (INCL. 8-12)CRANKSHAFT KIT 2@68X136 BUR (INCL. 8-12)
