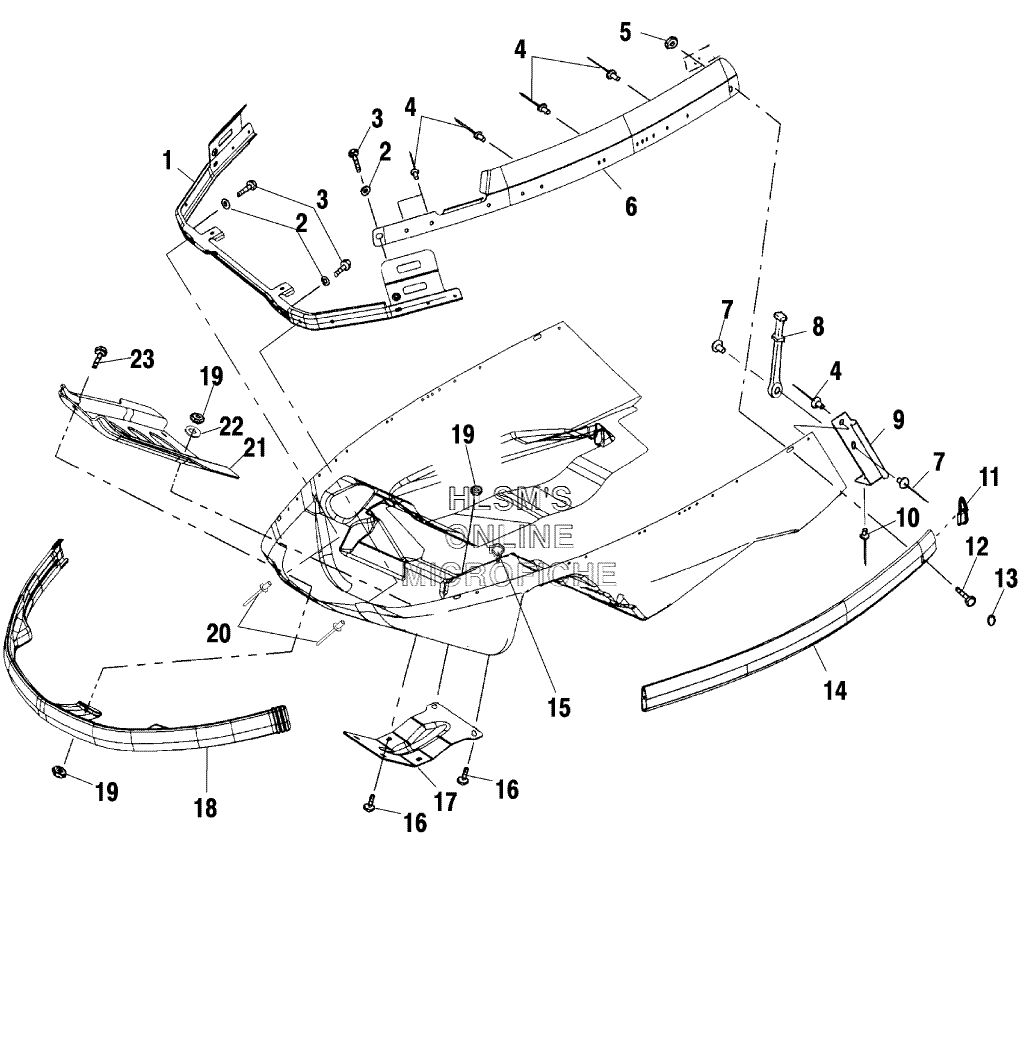

NOSEPAN ASSEMBLY #2 для Polaris 700 SKS (S02SS7CS) - 2002 года выпуска
-
№АртикулНазвание
-
11012783-067 BRACE HINGE, (BLACK)BRACE HINGE, (BLACK)
-
27552801 LOCK WASHERLOCK WASHER
-
37512276 BOLTBOLT
-
47621402 POP RIVETPOP RIVET
-
57542103 NUT, LOCKNUT, LOCK
-
65243005 GUIDE, HOOD, (LEFT)GUIDE, HOOD, (LEFT)
-
65243006 GUIDE, HOOD, (RIGHT)GUIDE, HOOD, (RIGHT)
-
77621601 RIVETRIVET
-
85410370 STRAP, HOOD LATCHSTRAP, HOOD LATCH
-
95220522-067 BRACE, PAN, (LEFT)BRACE, PAN, (LEFT)
-
95220523-067 BRACE, PAN, (RIGHT)BRACE, PAN, (RIGHT)
-
107621432 RIVET, 3/16X.402RIVET, 3/16X.402
-
115432887 CAP, BUMPER, (LEFT/BLACK)CAP, BUMPER, (LEFT/BLACK)
-
115432888 CAP, BUMPER, (RIGHT/BLACK)CAP, BUMPER, (RIGHT/BLACK)
-
127515166 SCREWSCREW
-
137080416 PLUG, HOLEPLUG, HOLE
-
145243460-067 EXTRUSION-BUMPER, FORMED, (LEFT/BLACK)EXTRUSION-BUMPER, FORMED, (LEFT/BLACK)
-
145243461-067 EXTRUSION-BUMPER, FORMED, (RIGHT/BLACK)EXTRUSION-BUMPER, FORMED, (RIGHT/BLACK)
-
154020149 CLIP, (ROSEBUD)CLIP, (ROSEBUD)
-
167512193 BOLTBOLT
-
175242575-067 BRACE-PAN, (LOWER/BLACK)BRACE-PAN, (LOWER/BLACK)
-
185432891 BUMPER, (FRONT/BLACK)BUMPER, (FRONT/BLACK)
-
197542122 NUT-LOCKNUT-LOCK
-
207621463 RIVETRIVET
-
215243820 BRACE, PAN, UPPERBRACE, PAN, UPPER
-
227558301 WASHERWASHER
-
237515175 BOLTBOLT
